Section 147 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

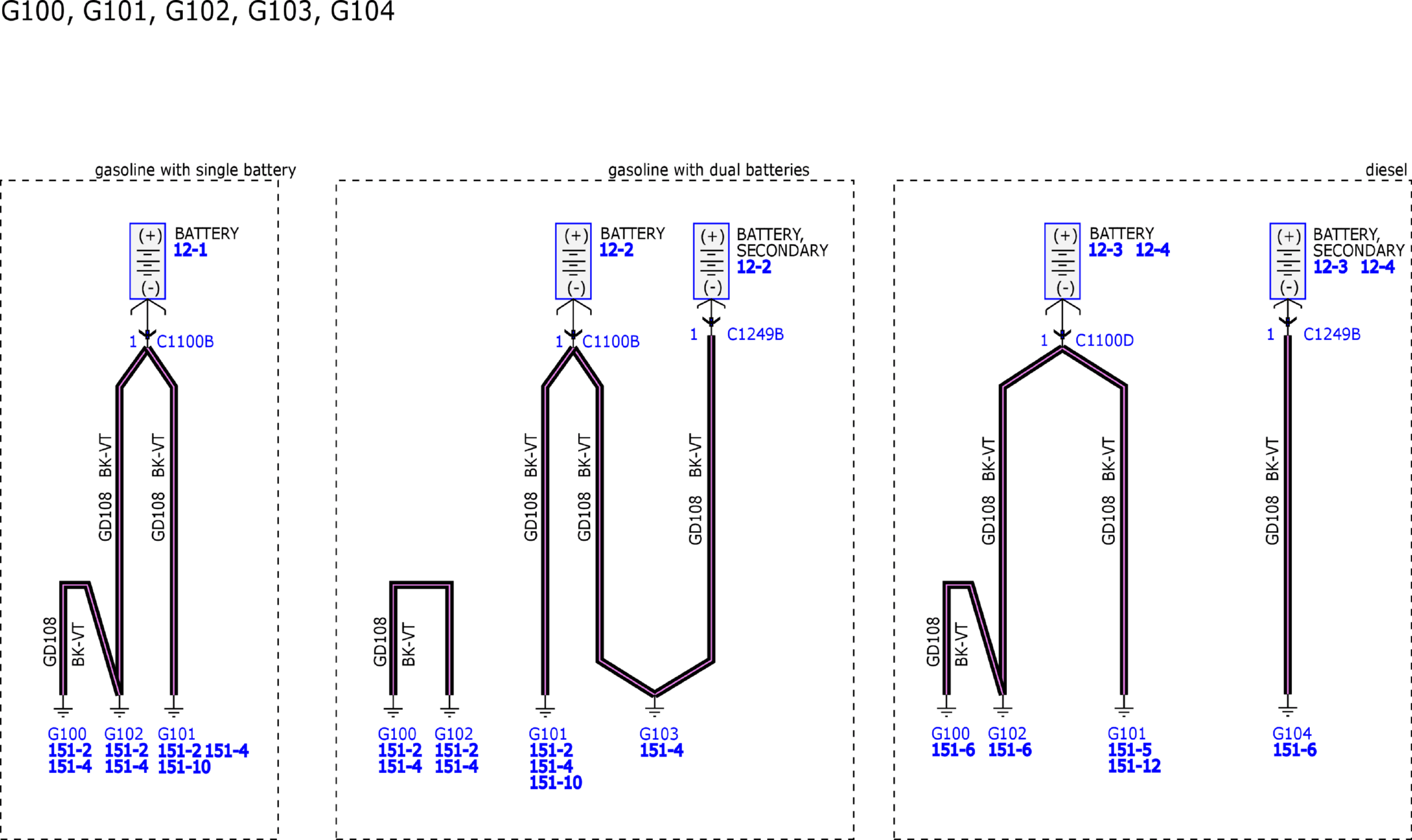

GFDW83180

Courtesy of FORD MOTOR COMPANY

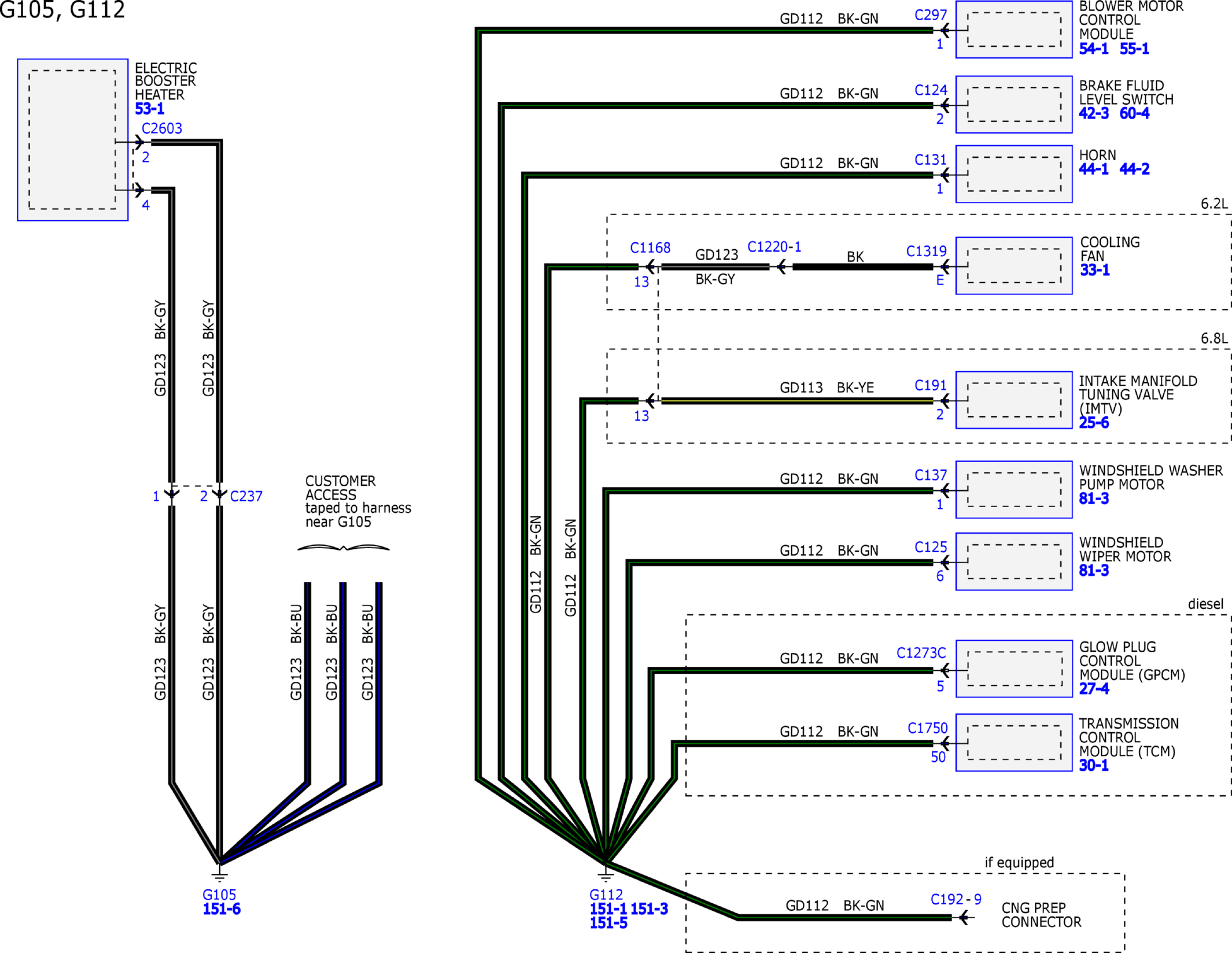

GFDW83181

Courtesy of FORD MOTOR COMPANY

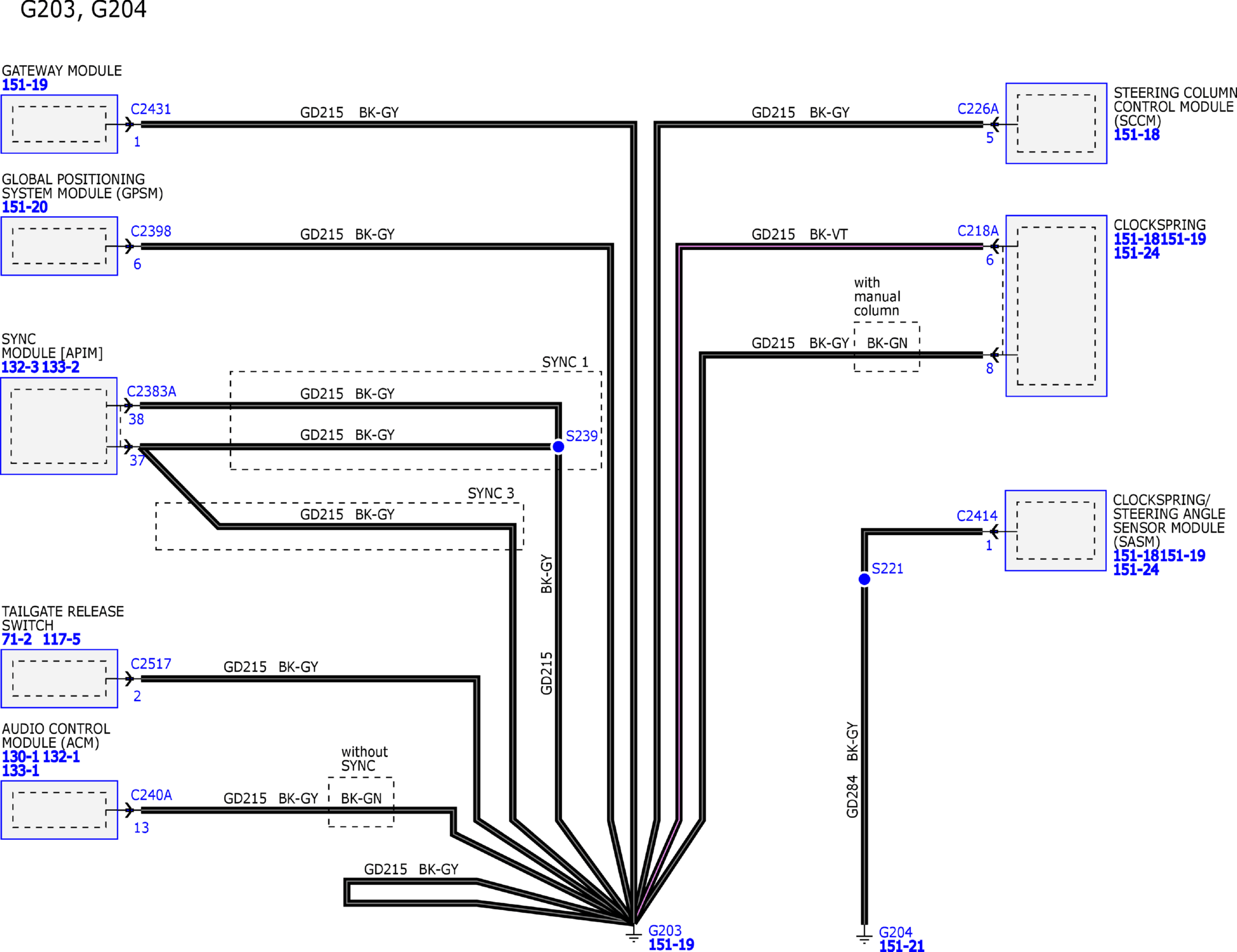

GFDW83182

Courtesy of FORD MOTOR COMPANY

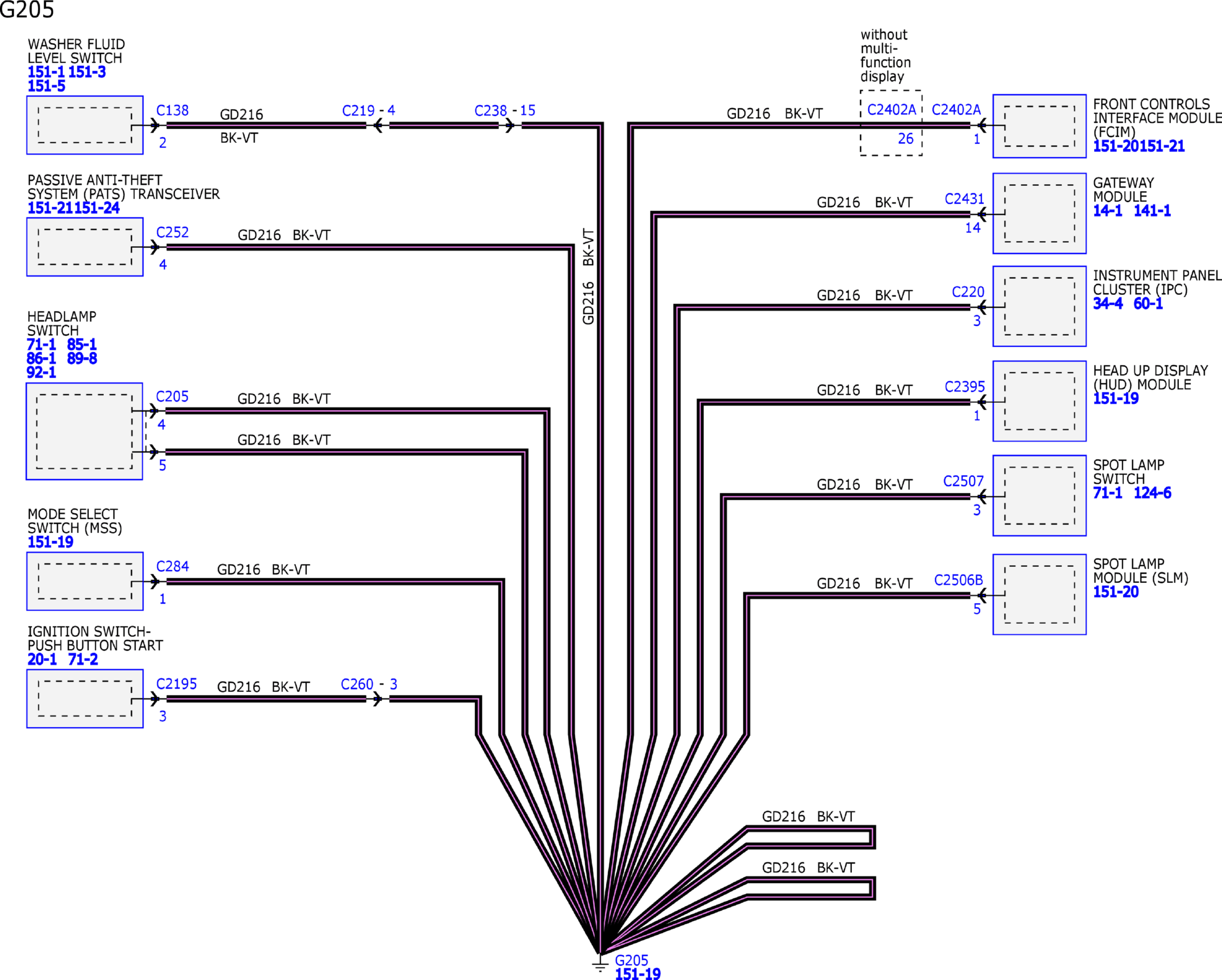

GFDW83183

Courtesy of FORD MOTOR COMPANY

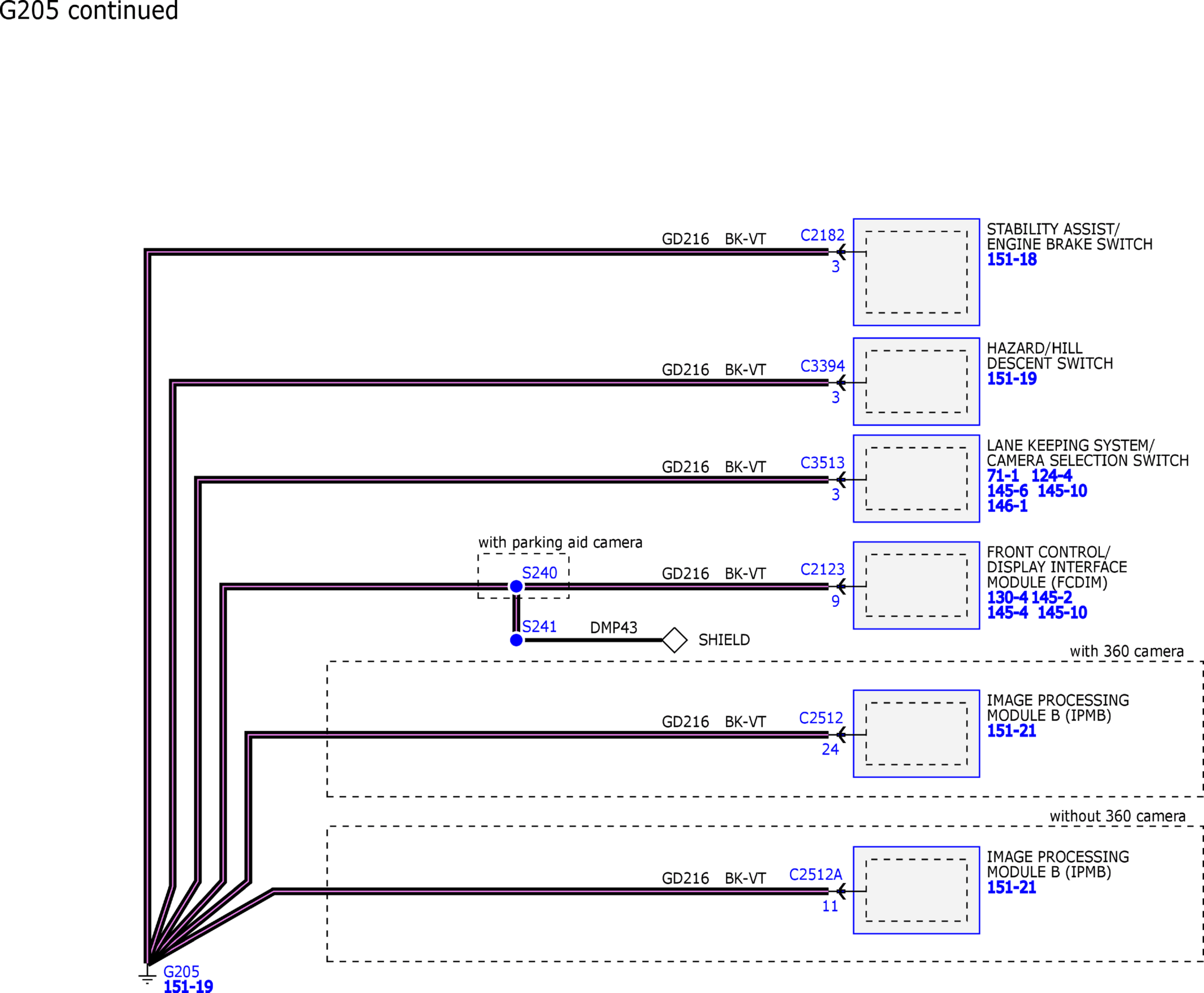

GFDW83184

Courtesy of FORD MOTOR COMPANY

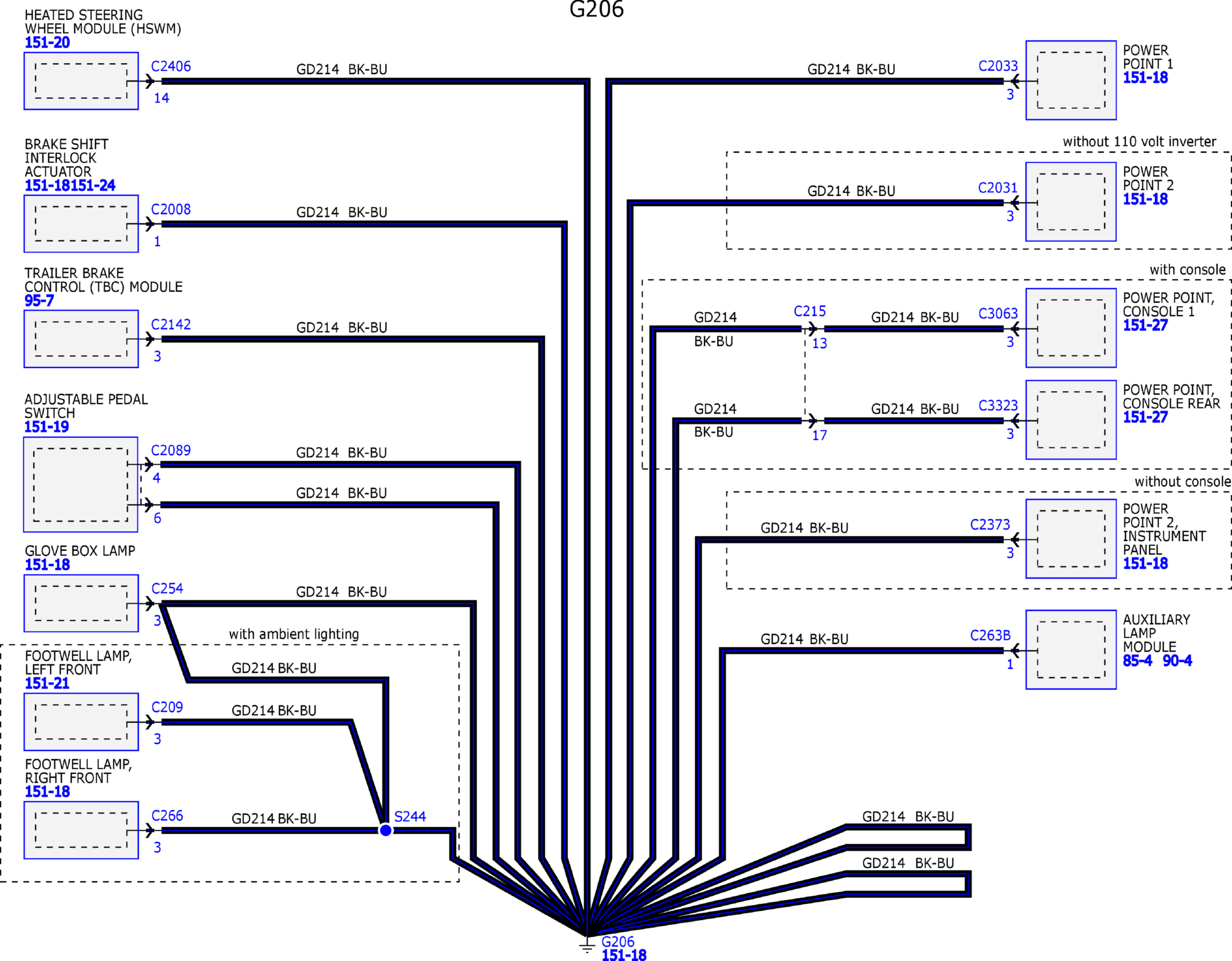

GFDW83185

Courtesy of FORD MOTOR COMPANY

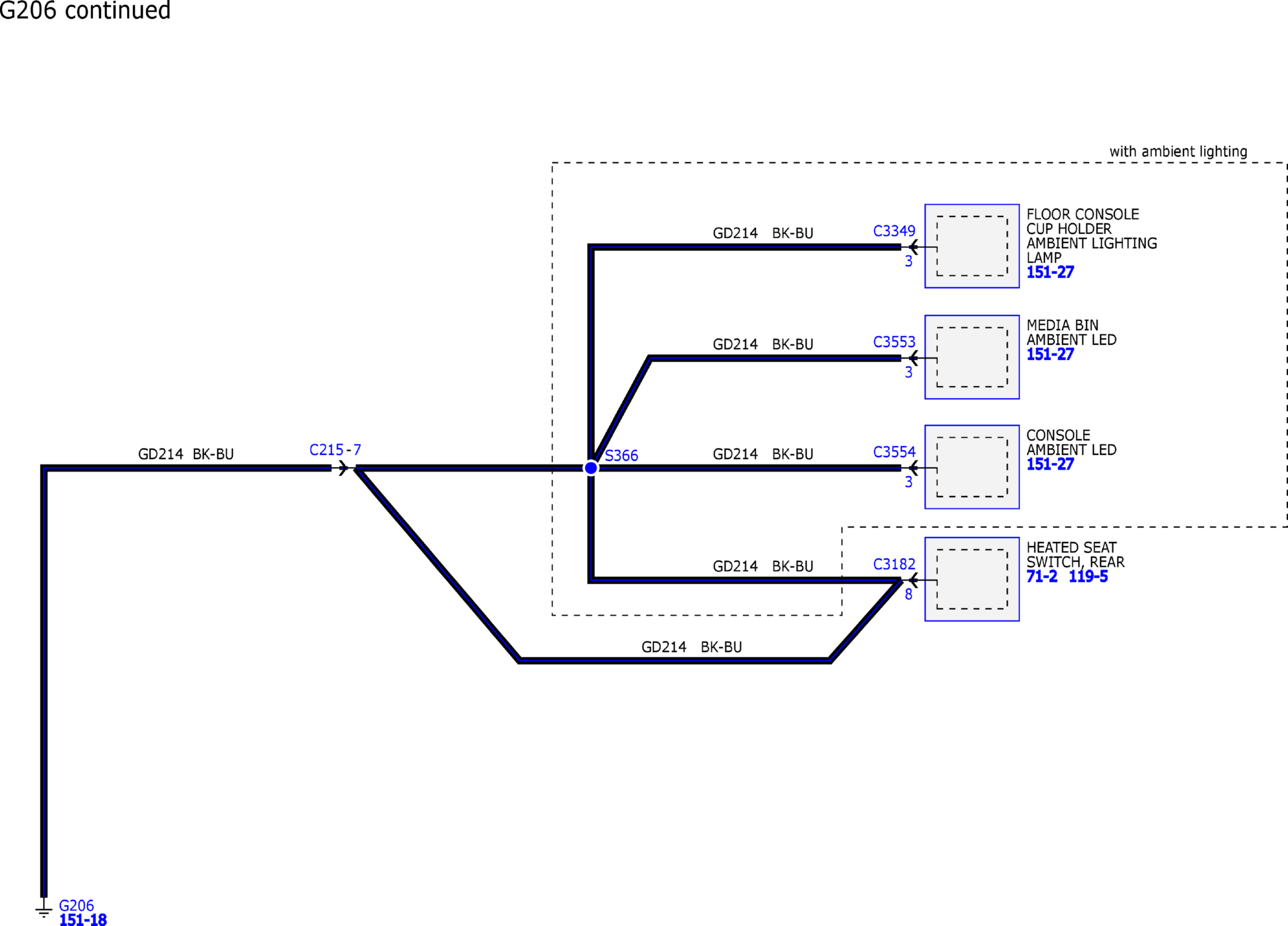

GFDW83186

Courtesy of FORD MOTOR COMPANY

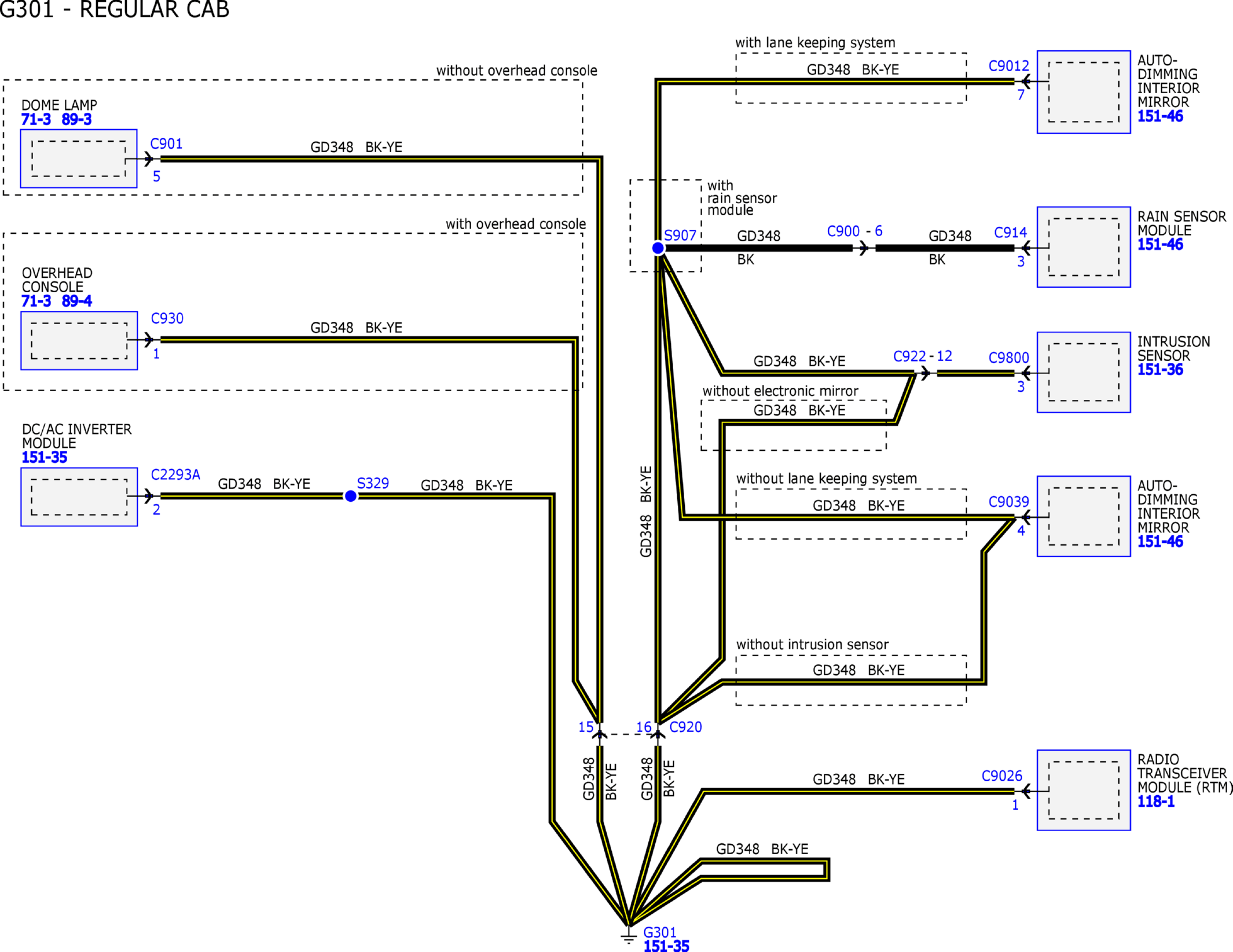

GFDW83187

Courtesy of FORD MOTOR COMPANY

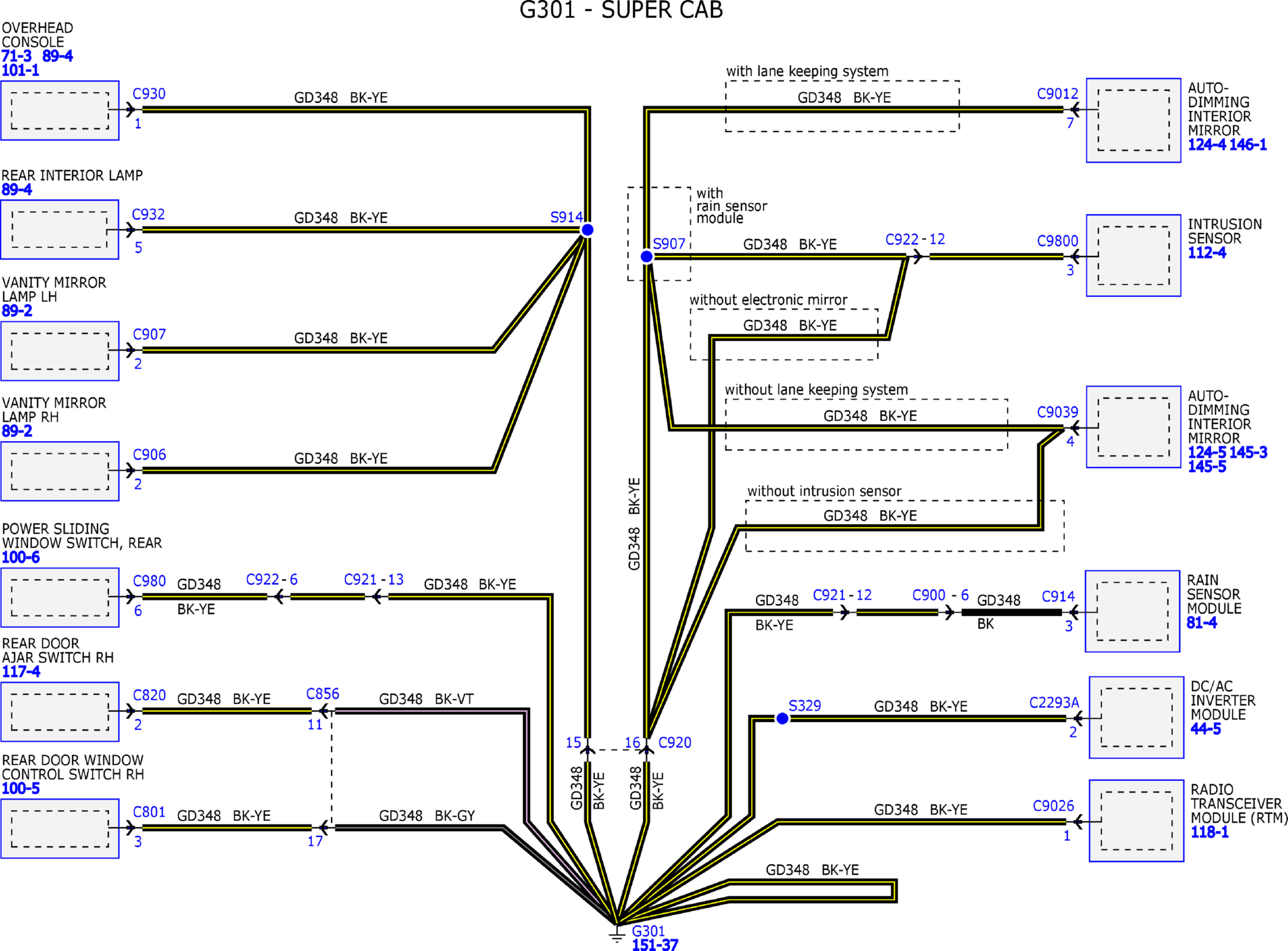

GFDW83188

Courtesy of FORD MOTOR COMPANY

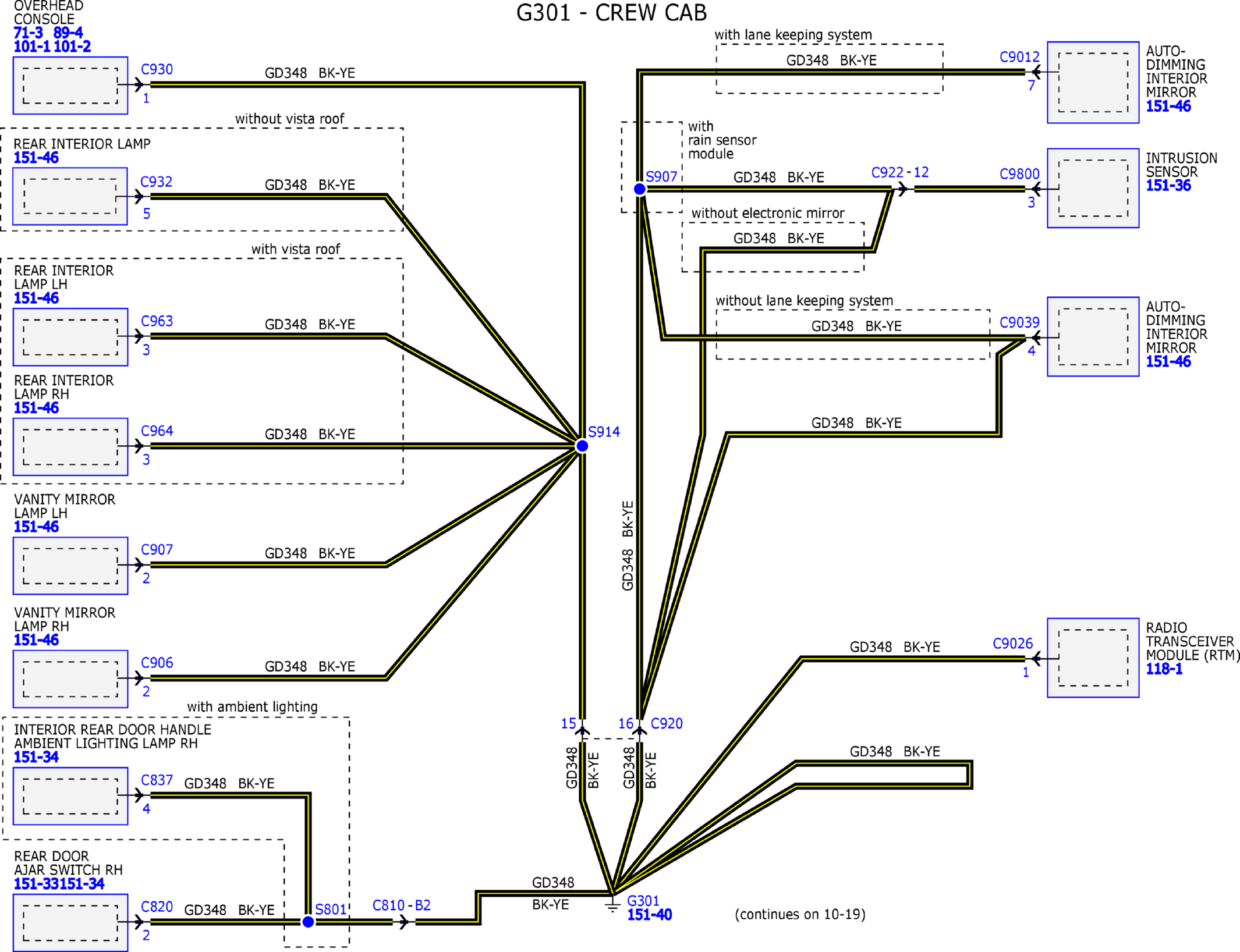

GFDW83189

Courtesy of FORD MOTOR COMPANY

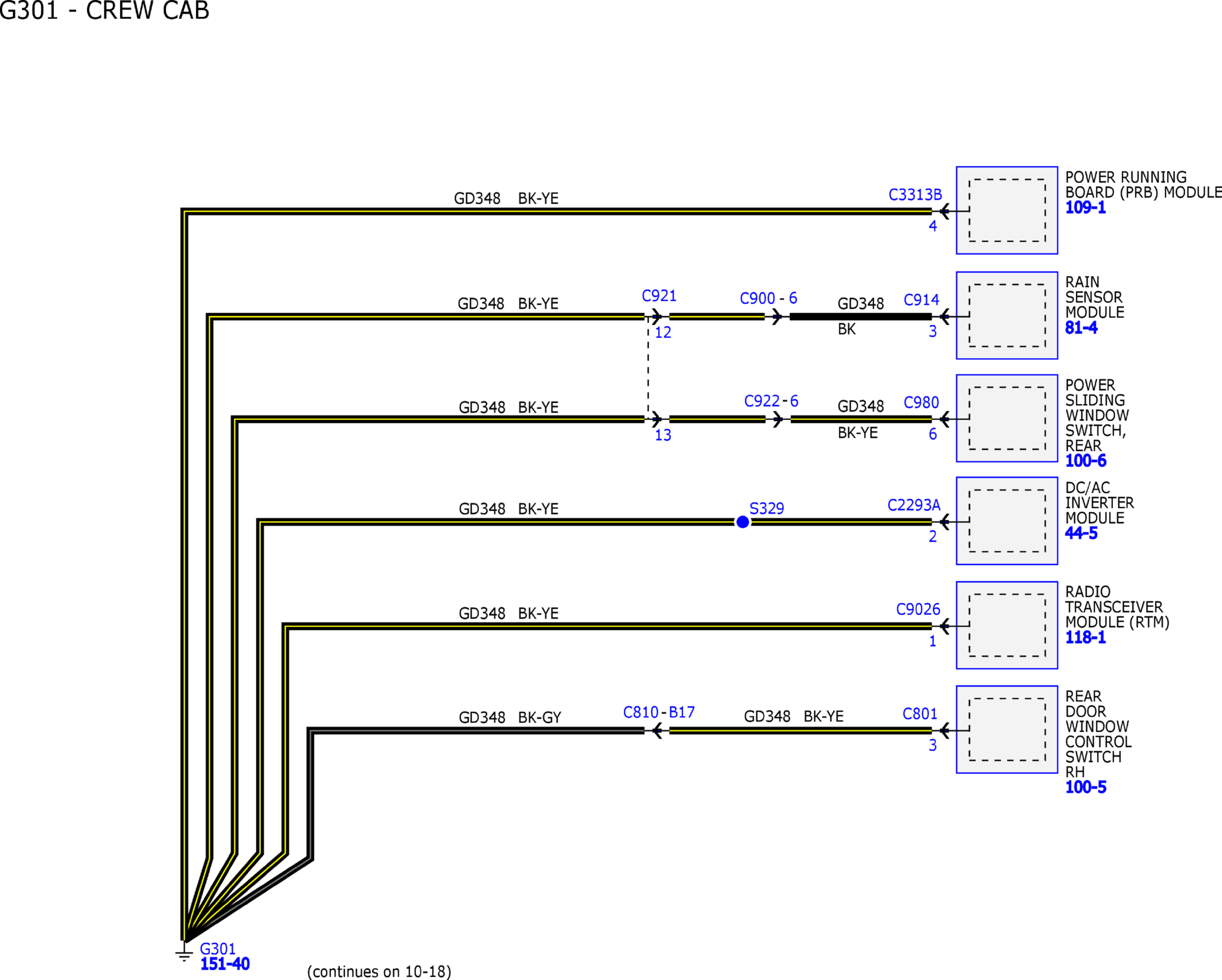

GFDW83190

Courtesy of FORD MOTOR COMPANY

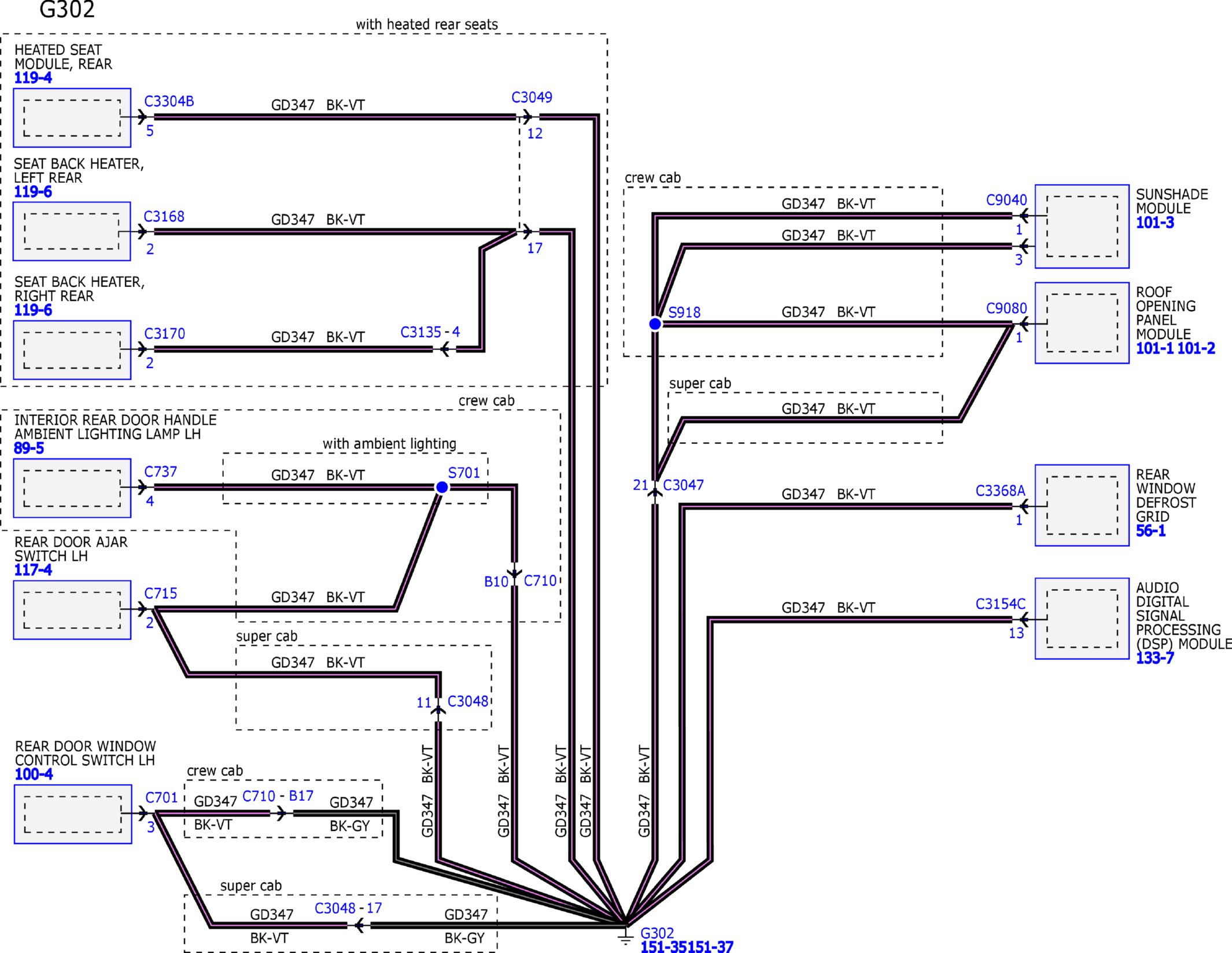

GFDW83191

Courtesy of FORD MOTOR COMPANY

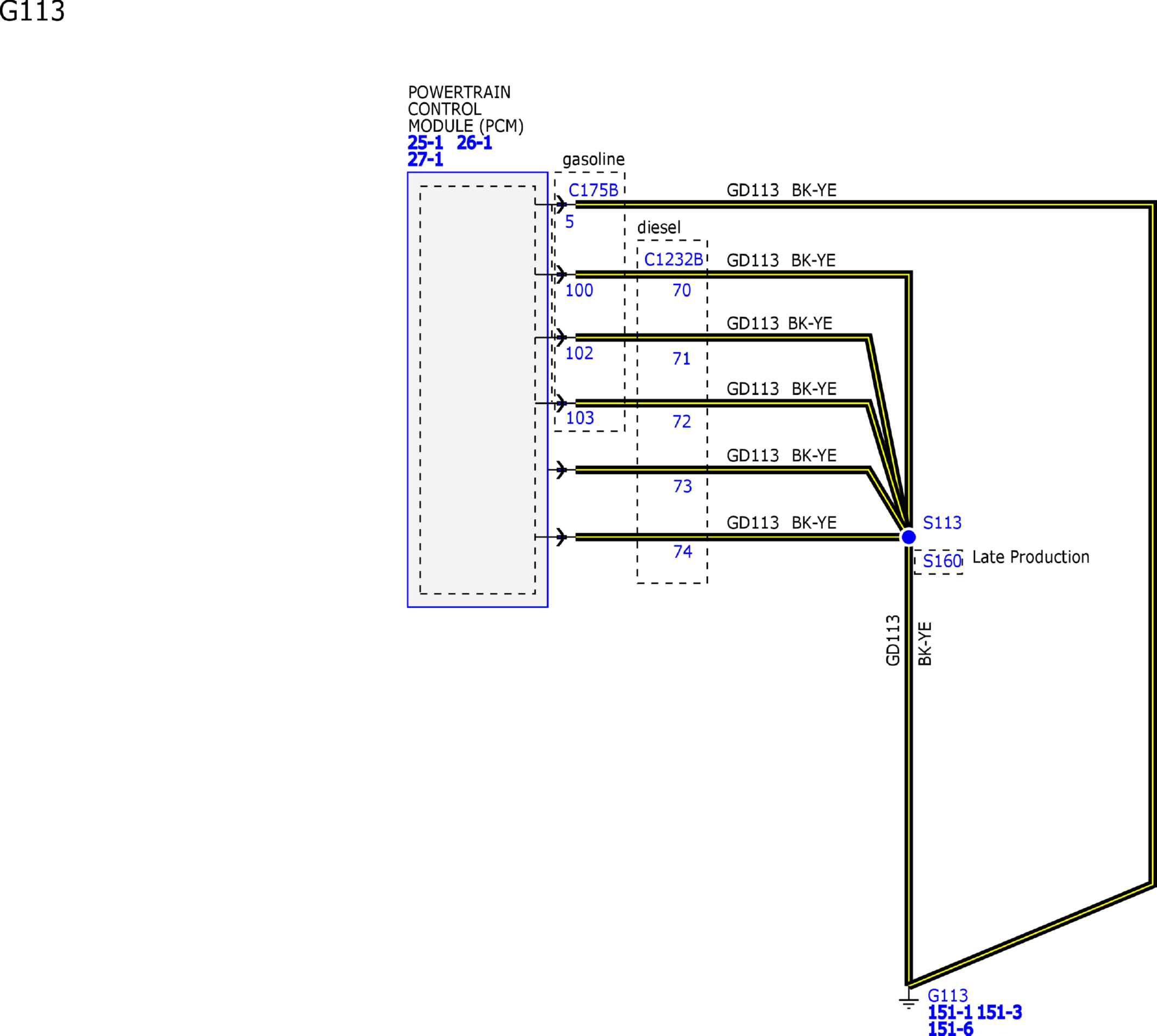

GFDW83192

Courtesy of FORD MOTOR COMPANY

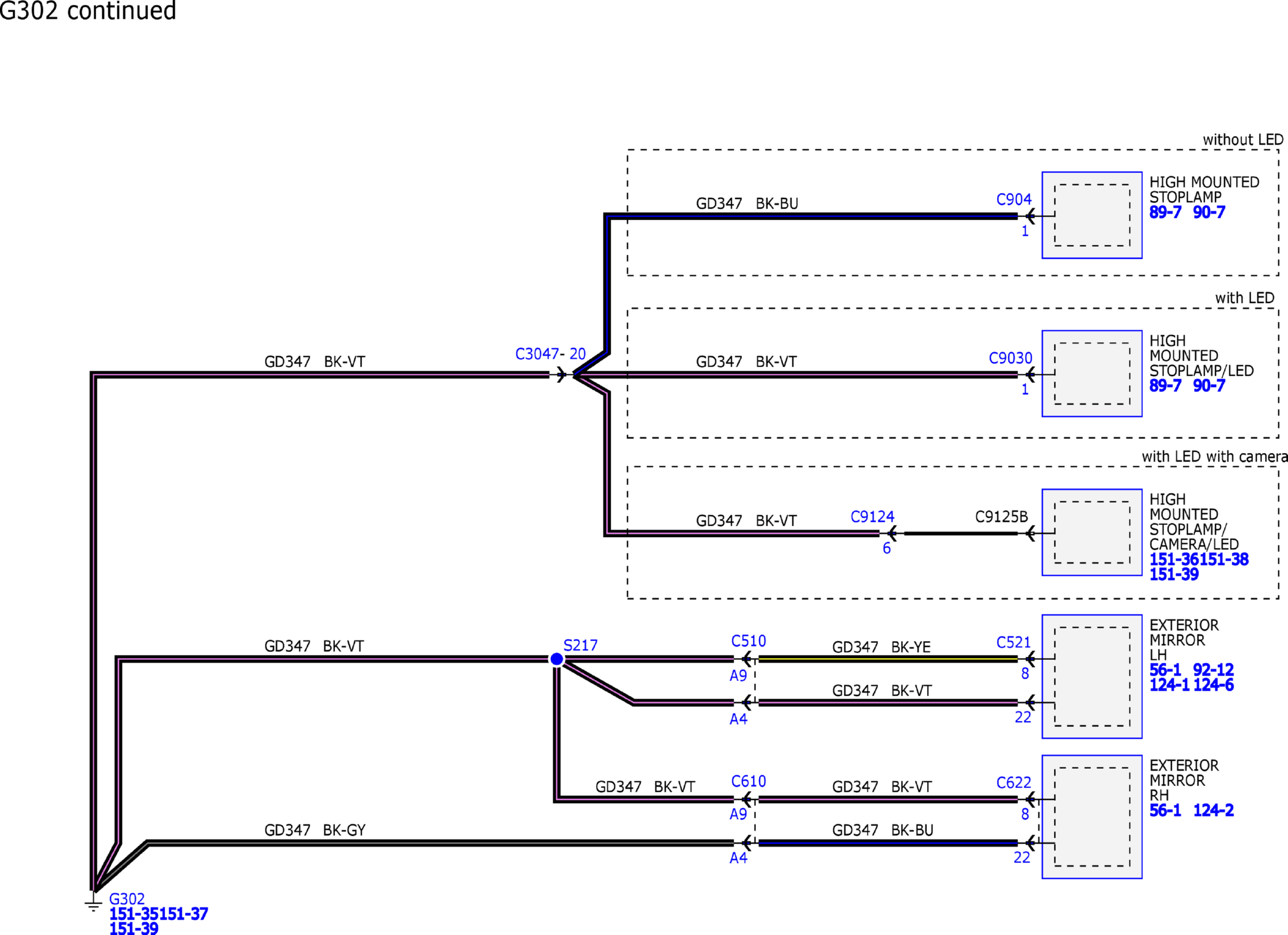

GFDW83193

Courtesy of FORD MOTOR COMPANY

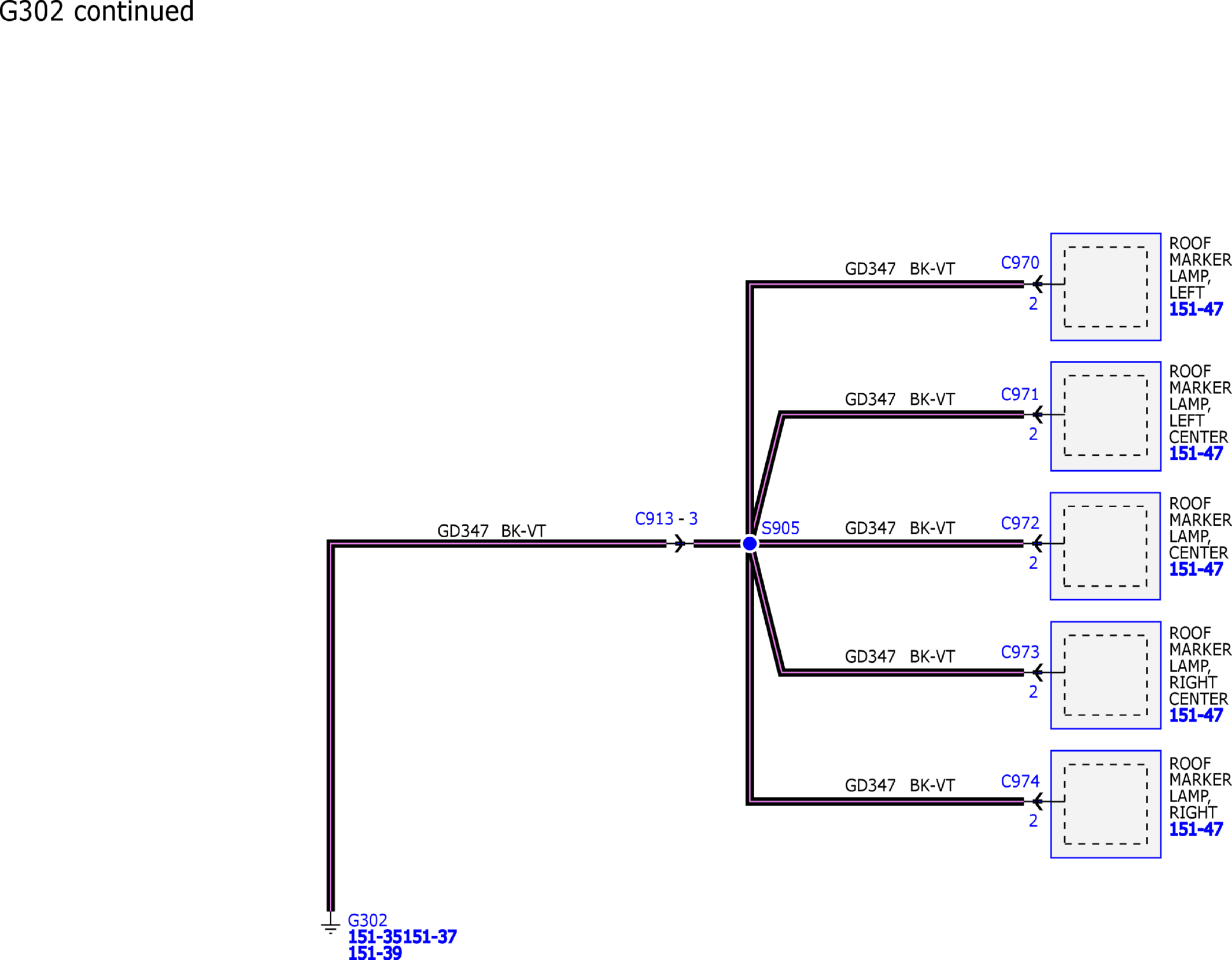

GFDW83194

Courtesy of FORD MOTOR COMPANY

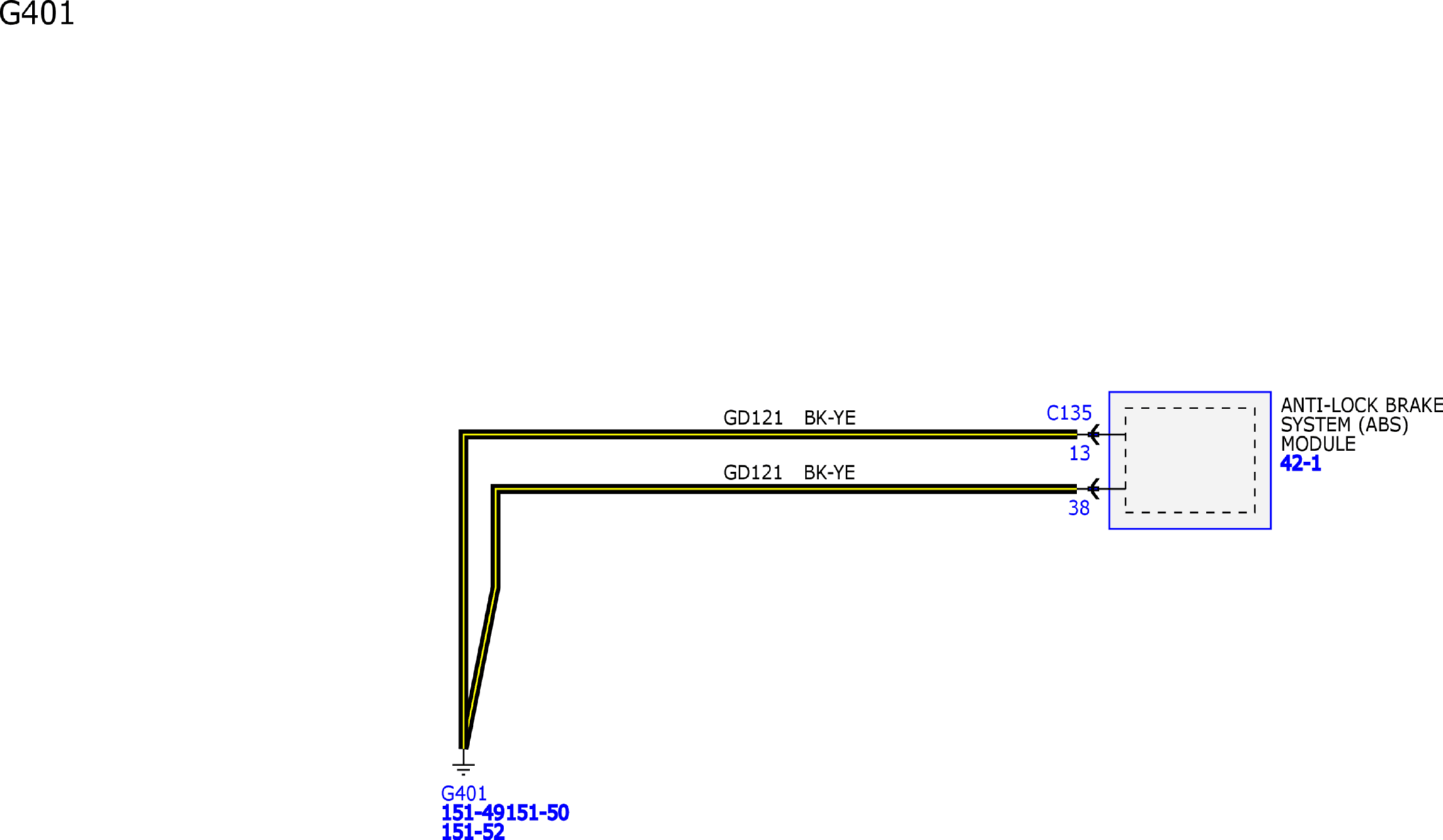

GFDW83195

Courtesy of FORD MOTOR COMPANY

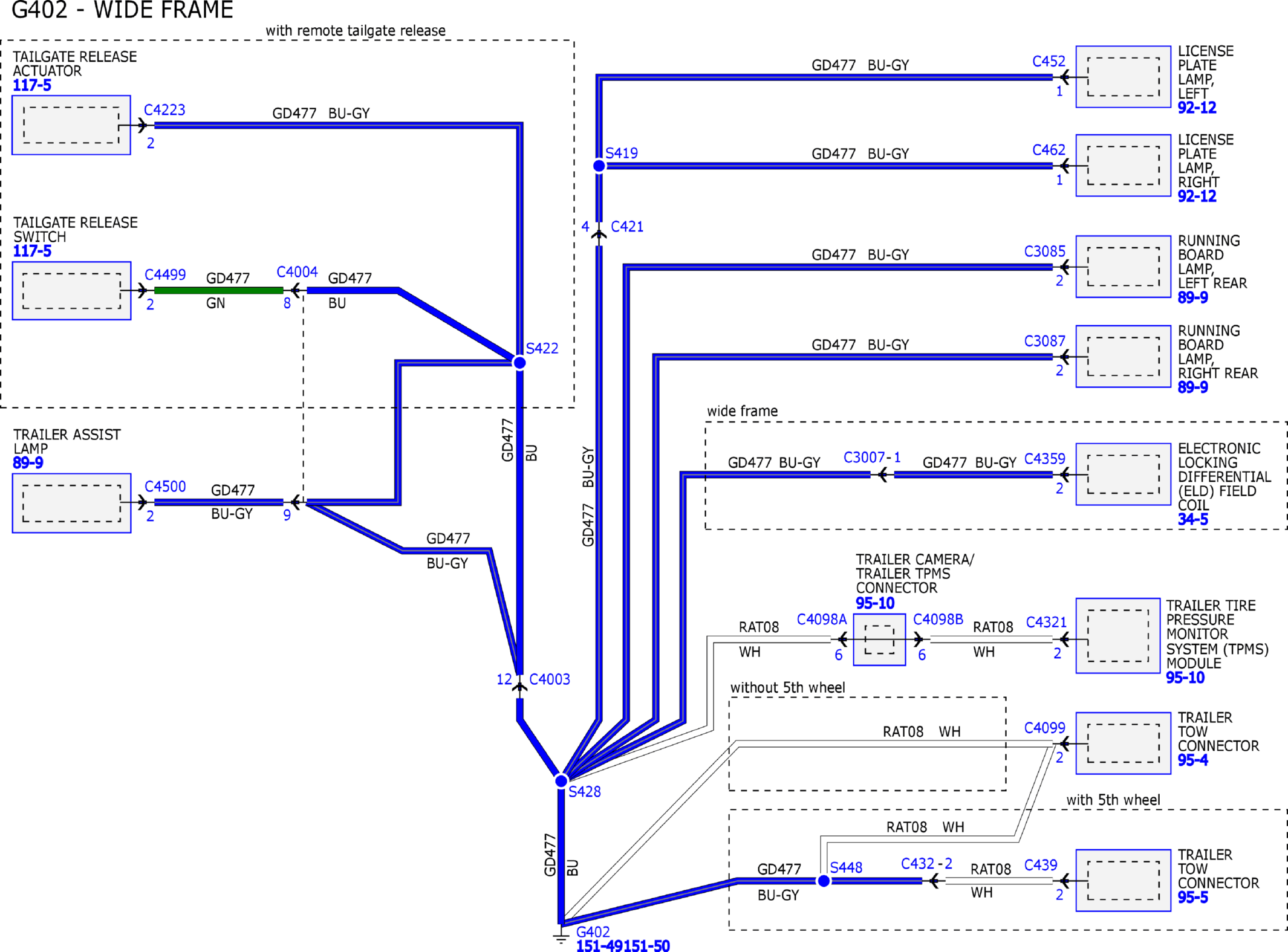

GFDW83196

Courtesy of FORD MOTOR COMPANY

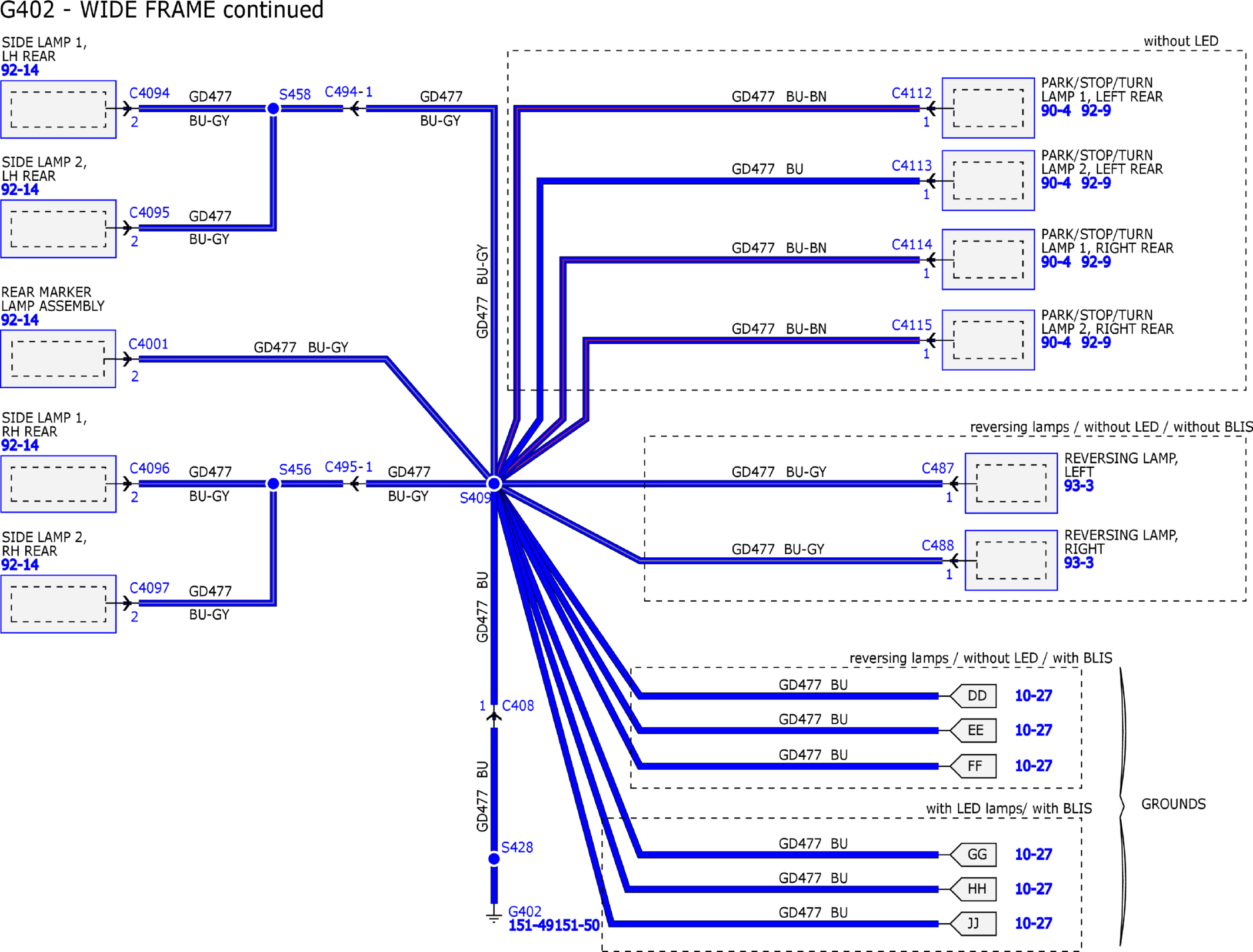

GFDW83197

Courtesy of FORD MOTOR COMPANY

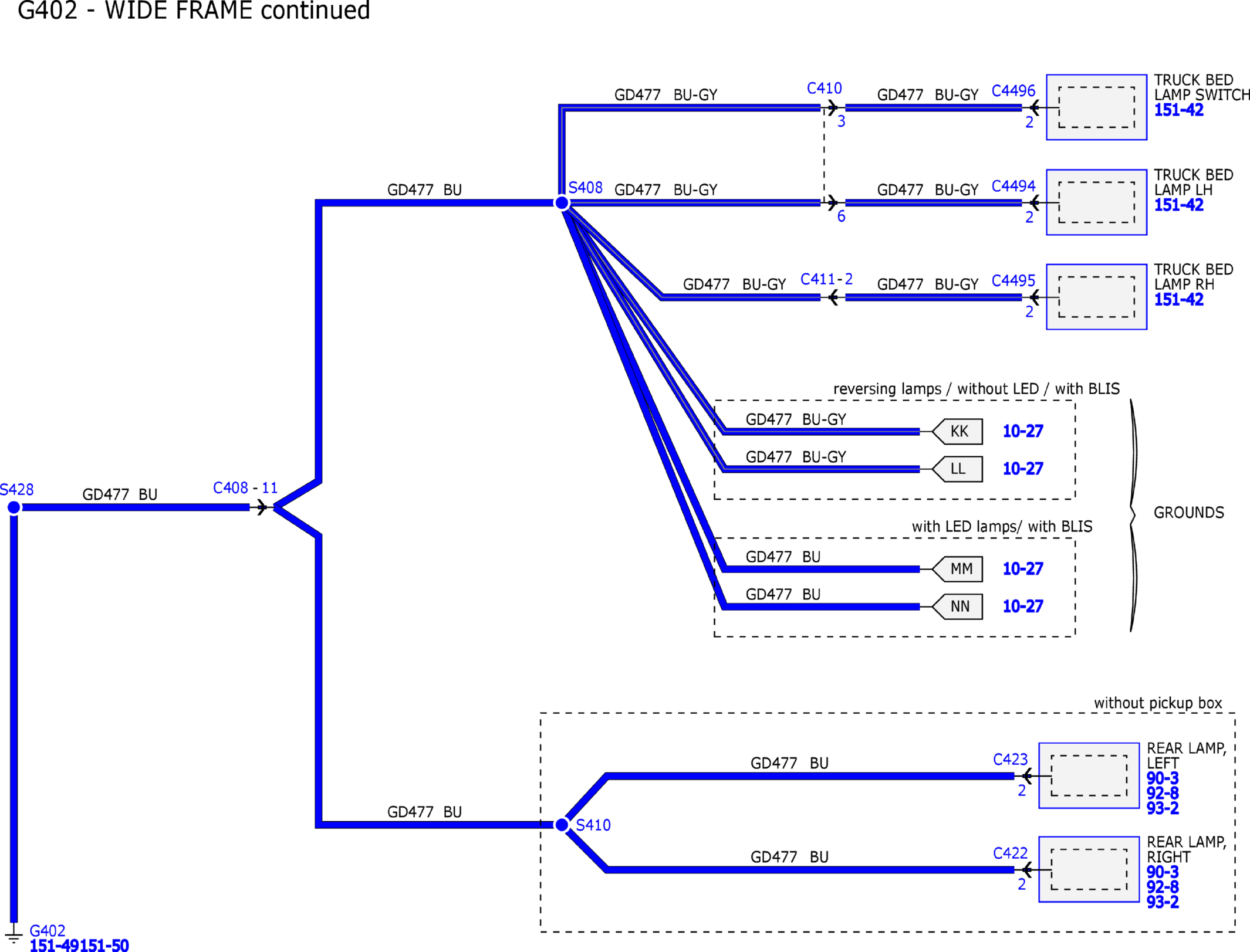

GFDW83198

Courtesy of FORD MOTOR COMPANY

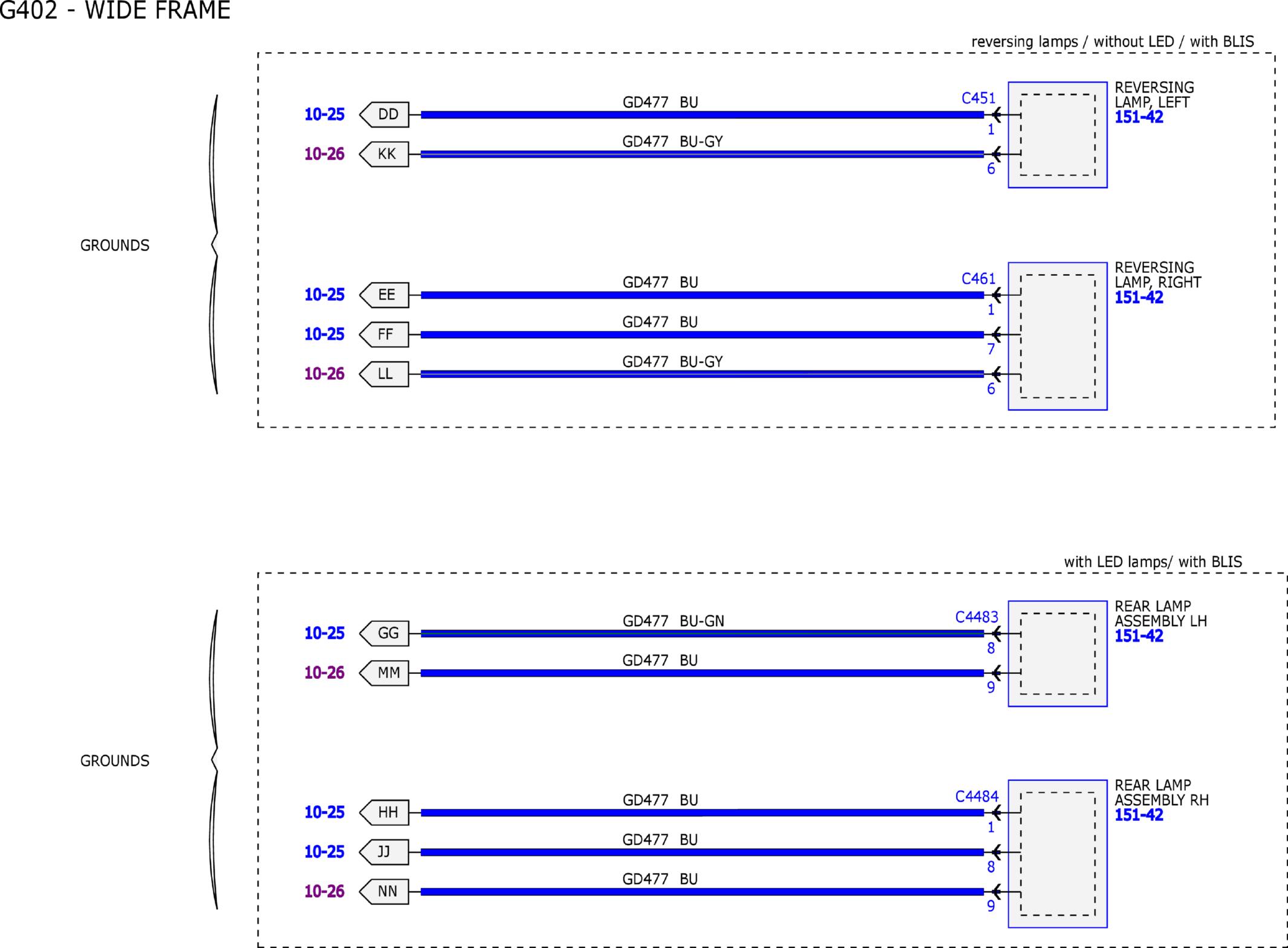

GFDW83199

Courtesy of FORD MOTOR COMPANY

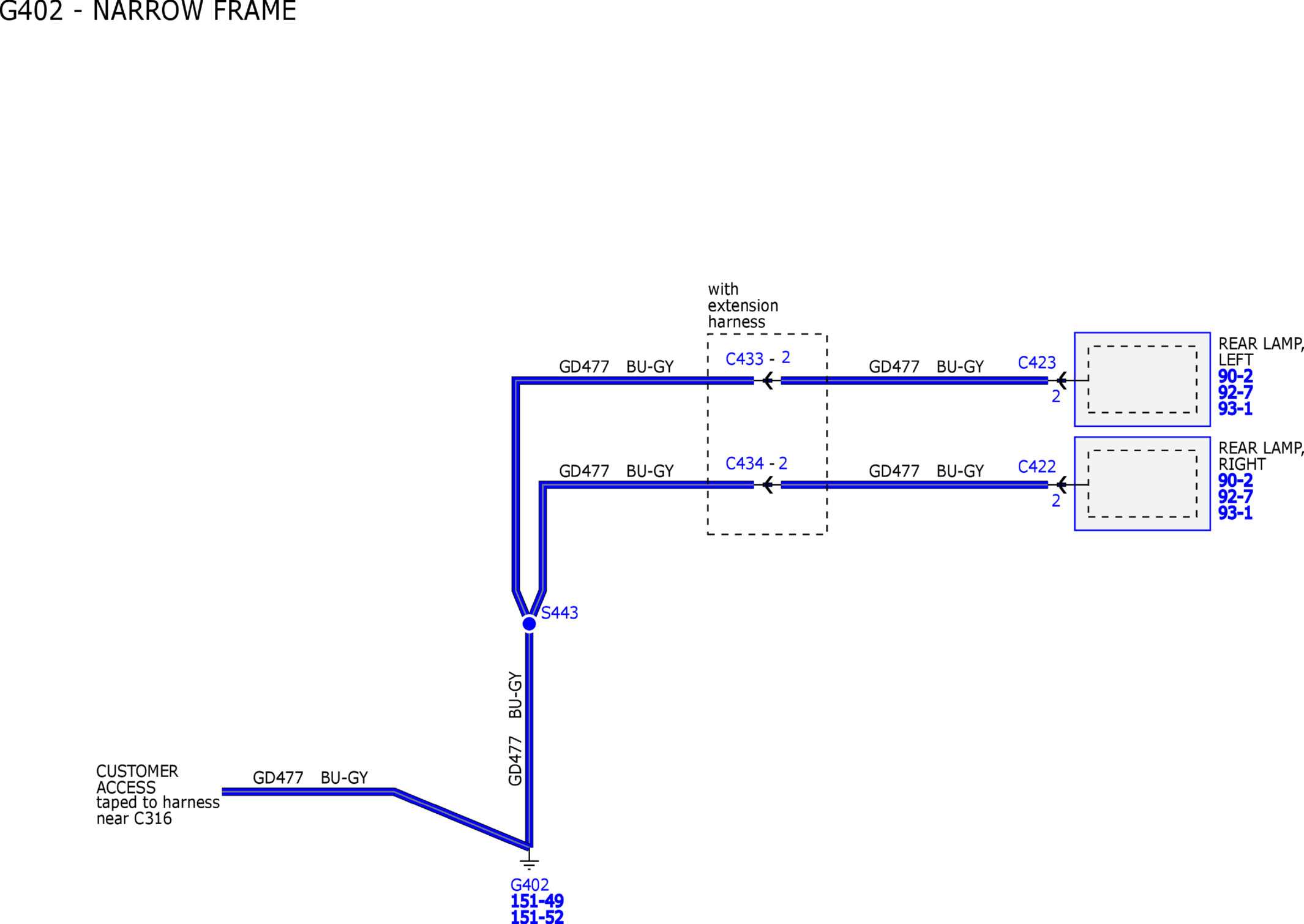

GFDW83200

Courtesy of FORD MOTOR COMPANY

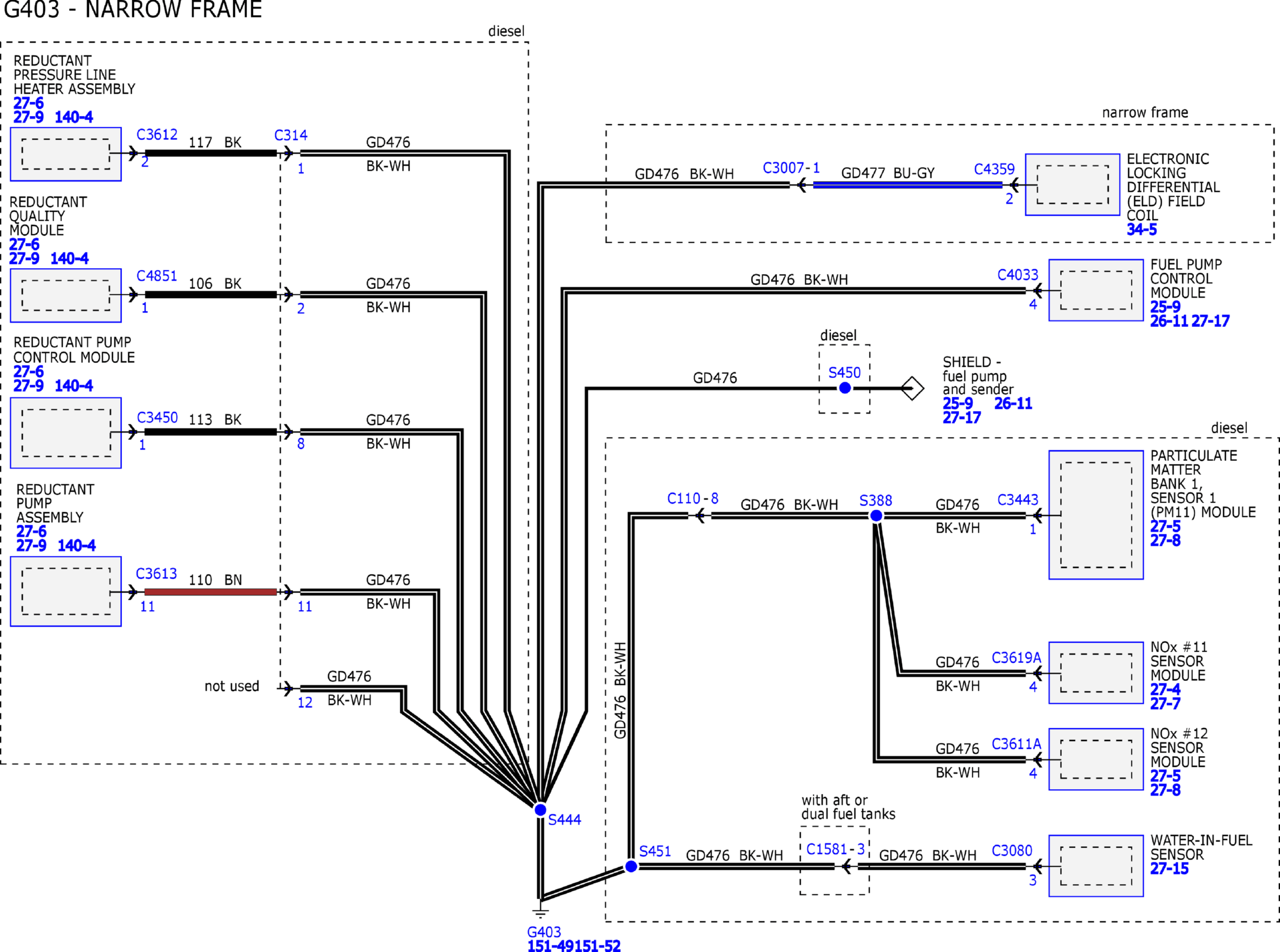

GFDW83201

Courtesy of FORD MOTOR COMPANY

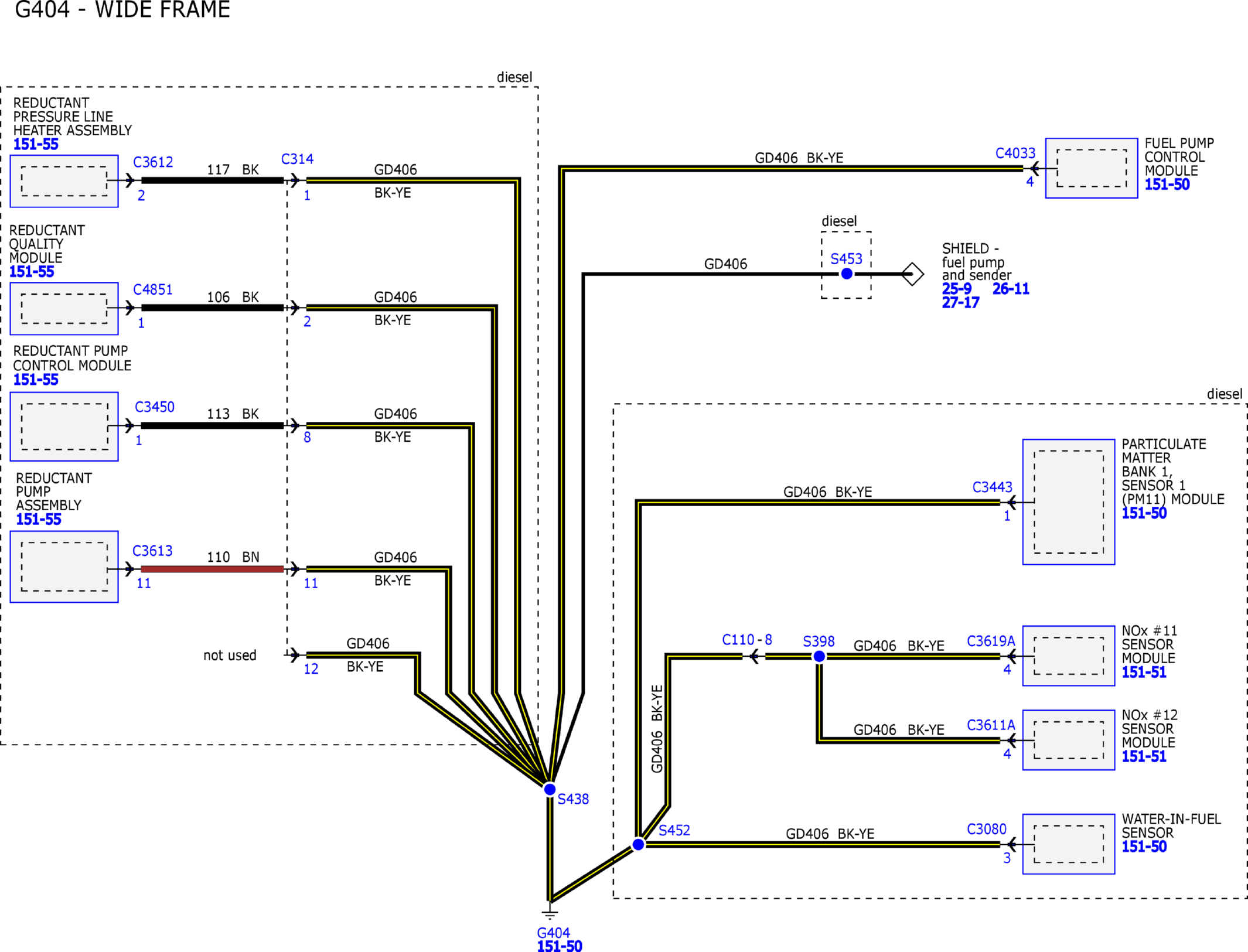

GFDW83202

Courtesy of FORD MOTOR COMPANY

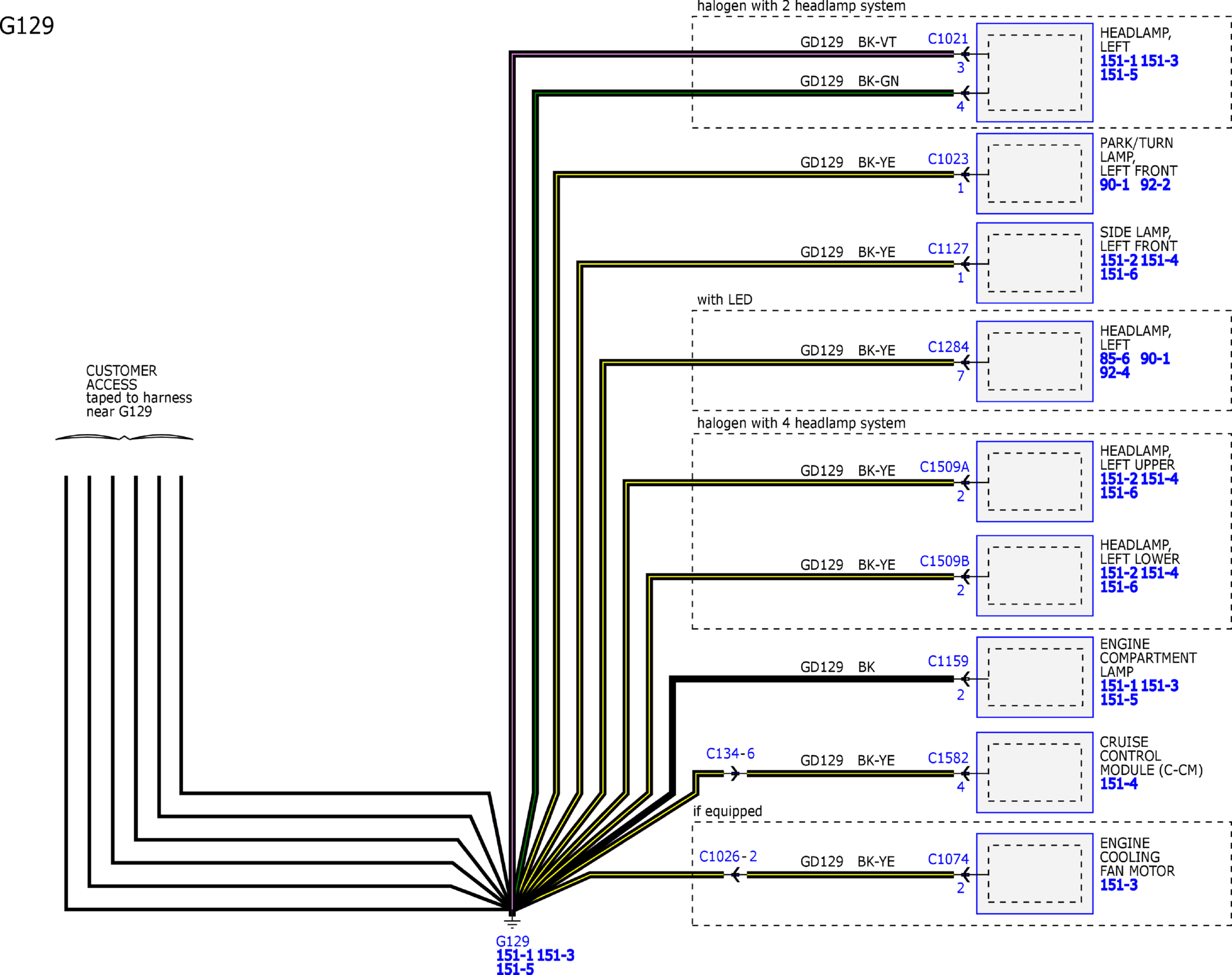

GFDW83203

Courtesy of FORD MOTOR COMPANY

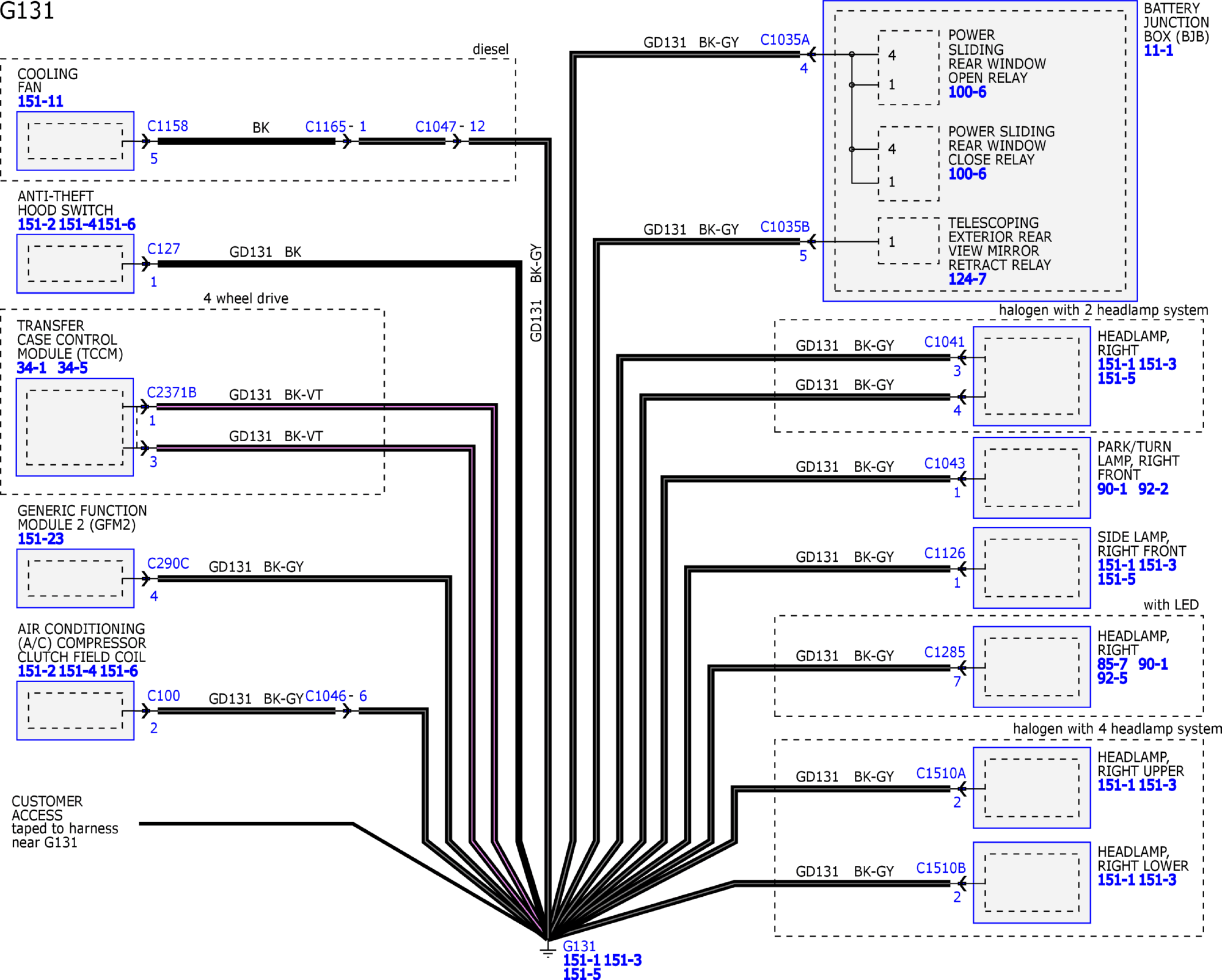

GFDW83204

Courtesy of FORD MOTOR COMPANY

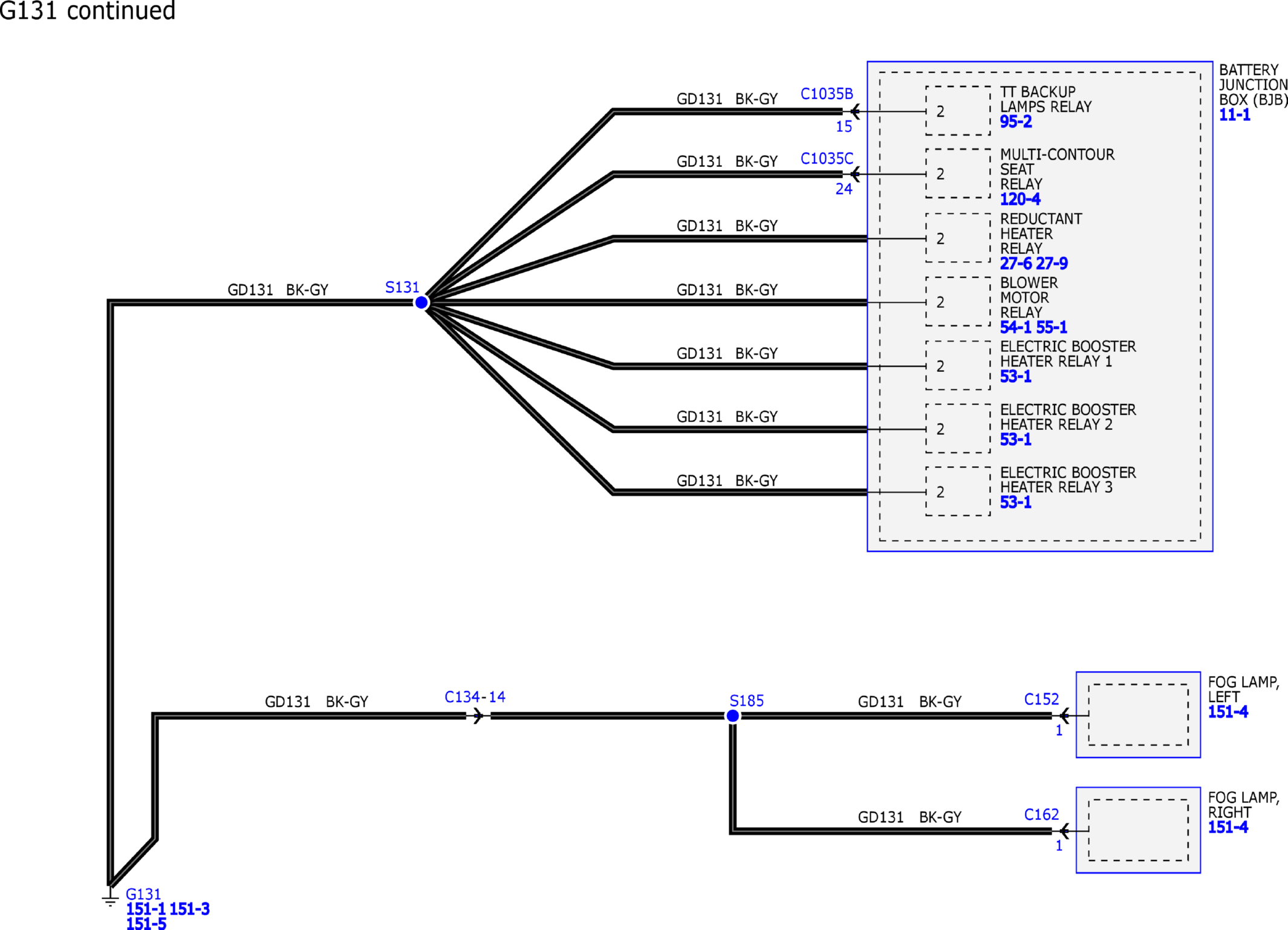

GFDW83205

Courtesy of FORD MOTOR COMPANY

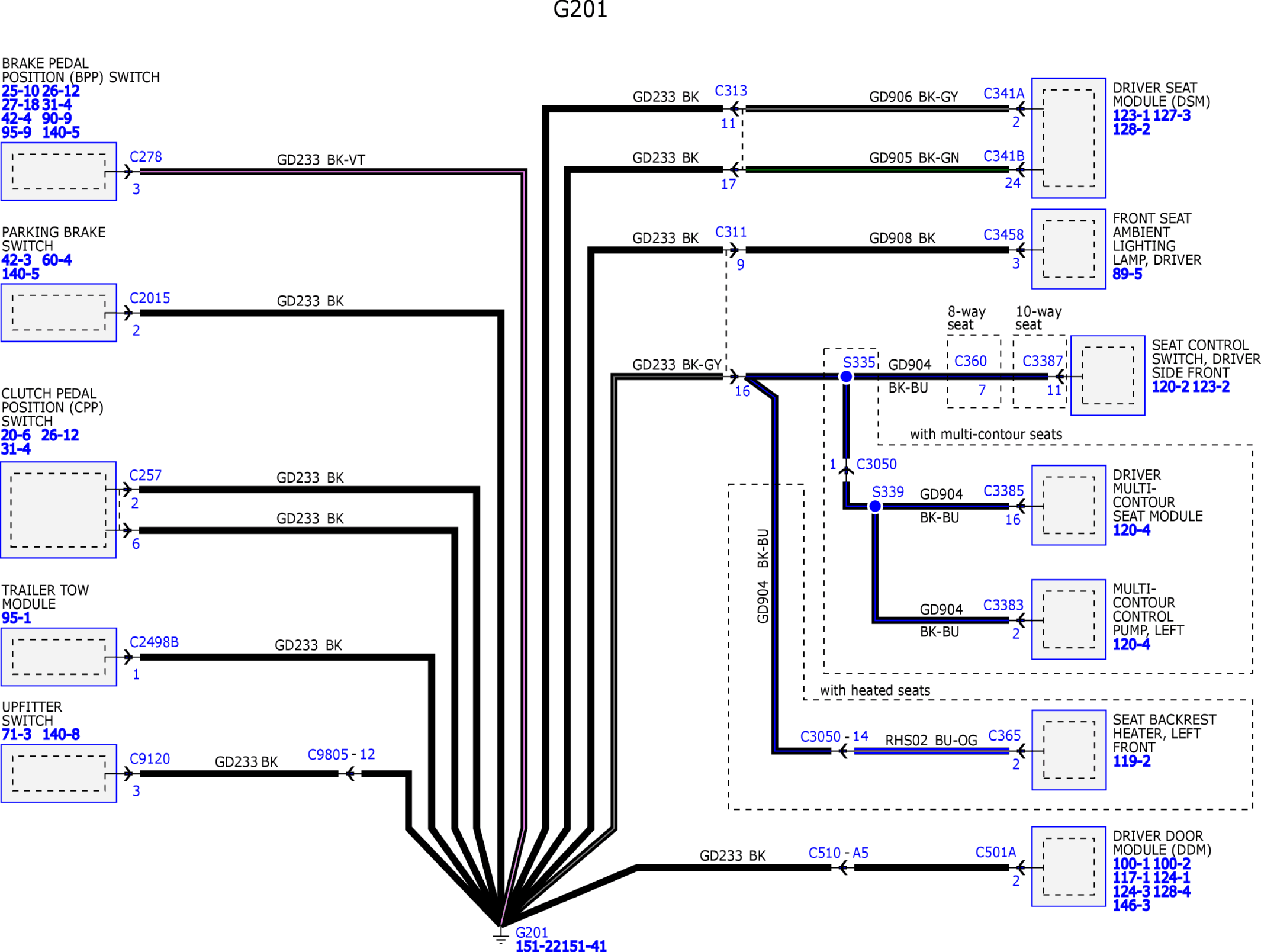

GFDW83206

Courtesy of FORD MOTOR COMPANY

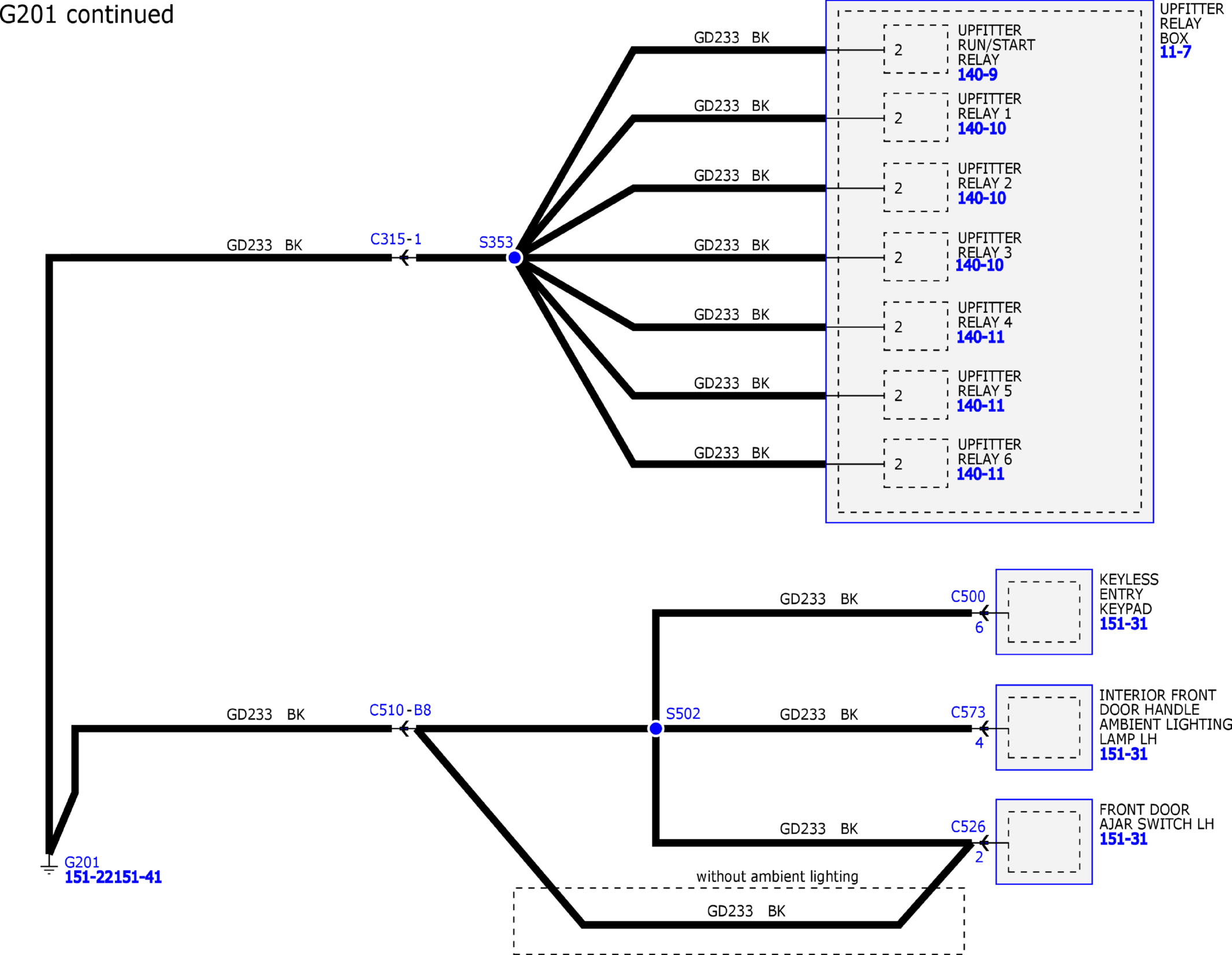

GFDW83207

Courtesy of FORD MOTOR COMPANY

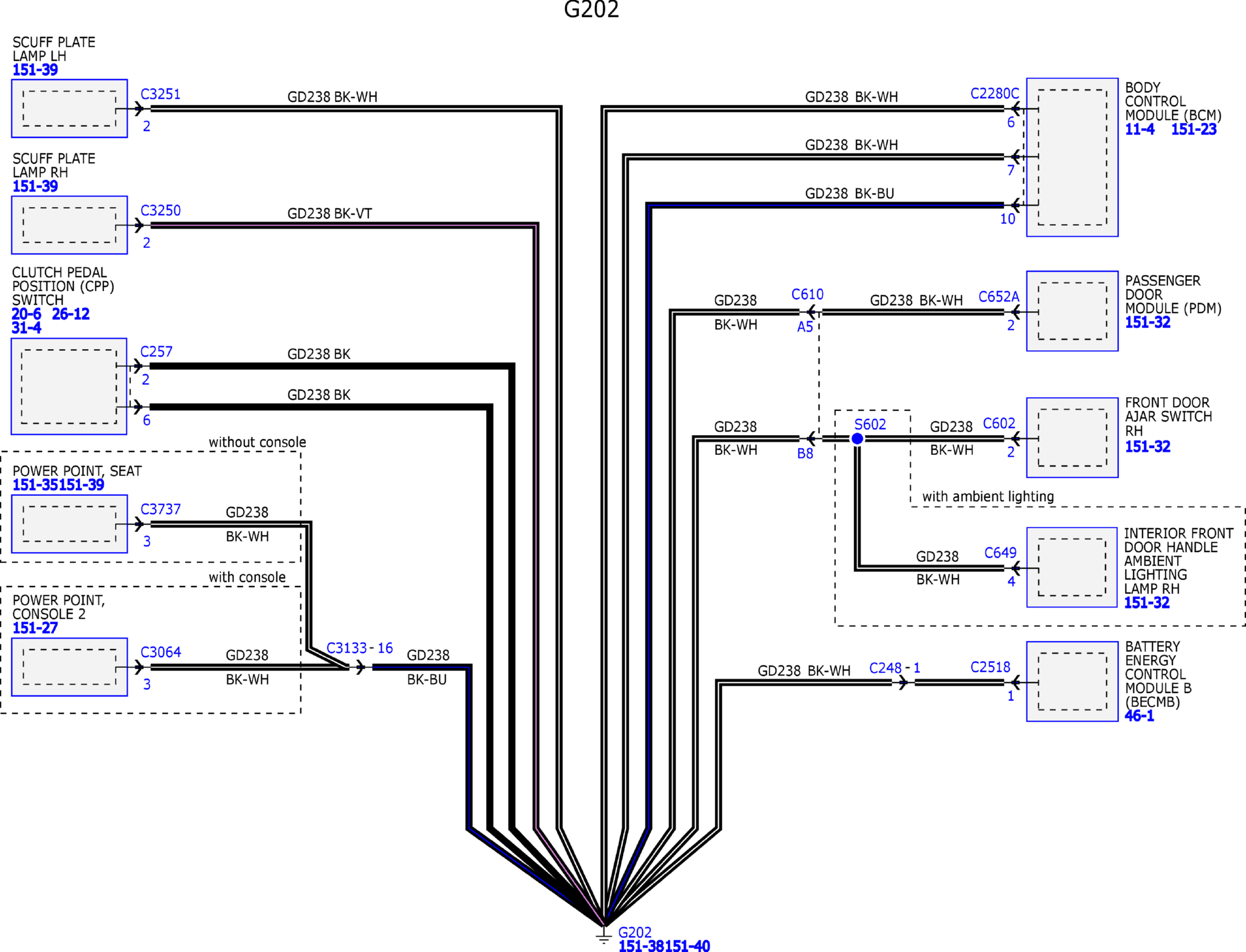

GFDW83208

Courtesy of FORD MOTOR COMPANY

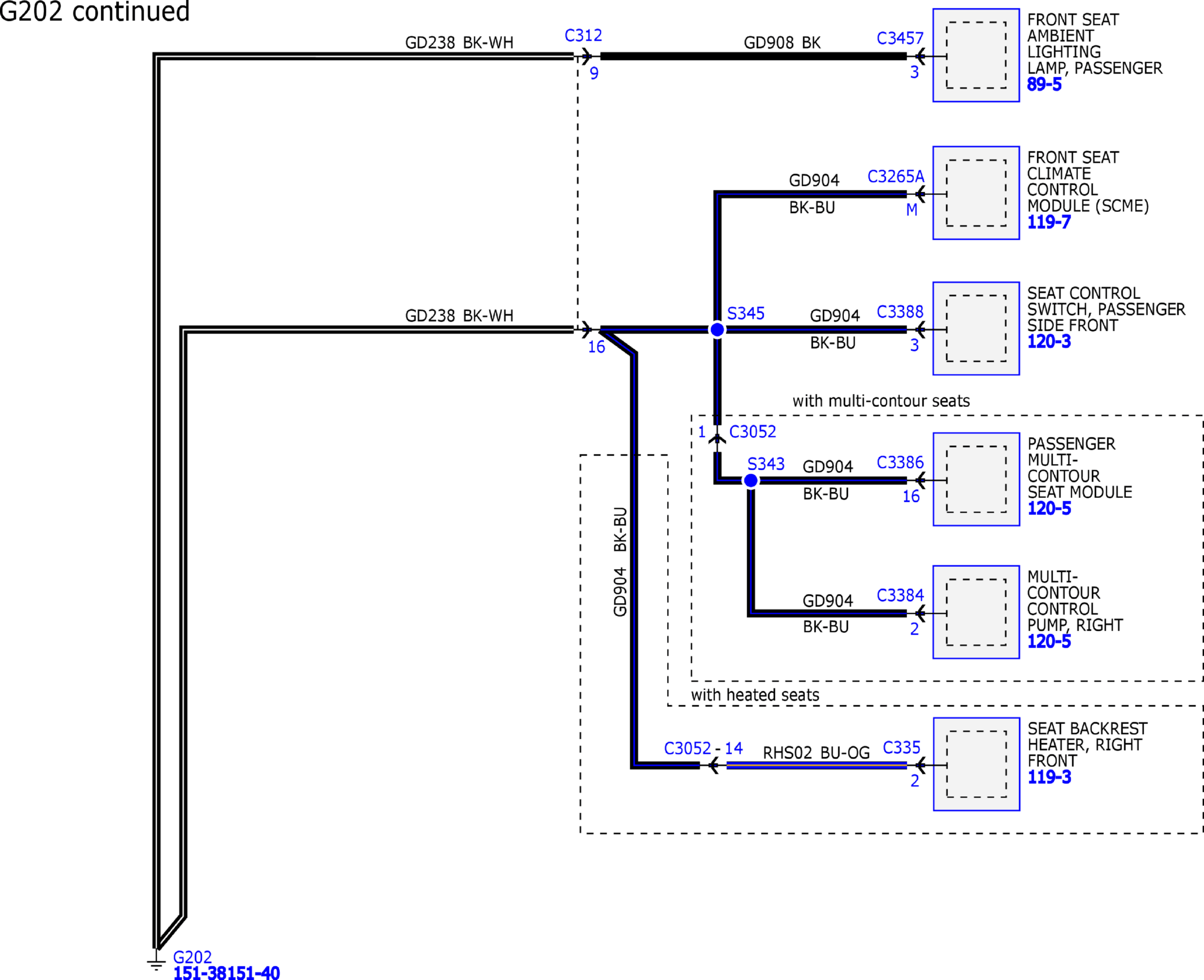

GFDW83209

Courtesy of FORD MOTOR COMPANY
