Section 17 (OEM Ground Distribution): Grounds

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

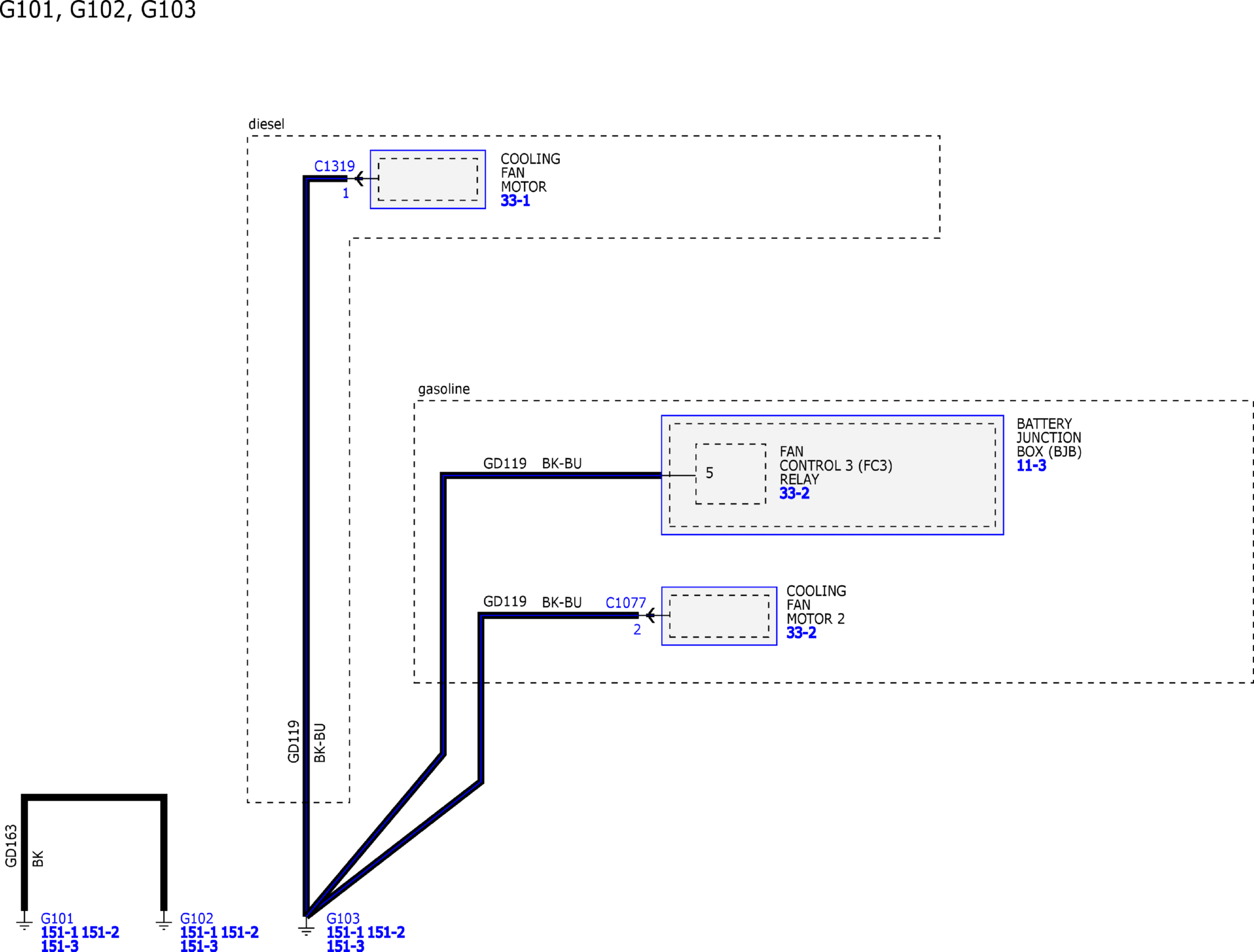

GFDW61415

Courtesy of FORD MOTOR COMPANY

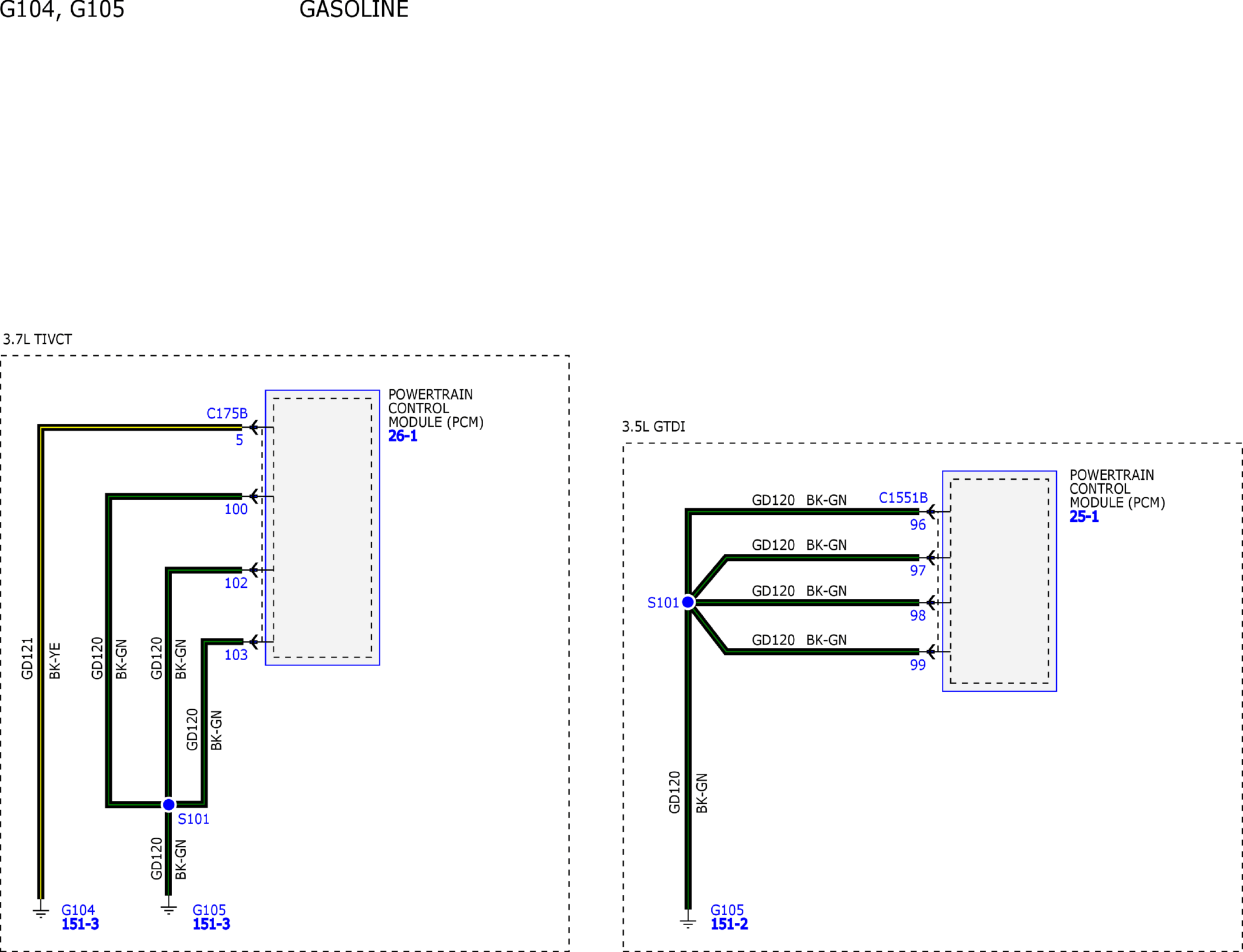

GFDW61416

Courtesy of FORD MOTOR COMPANY

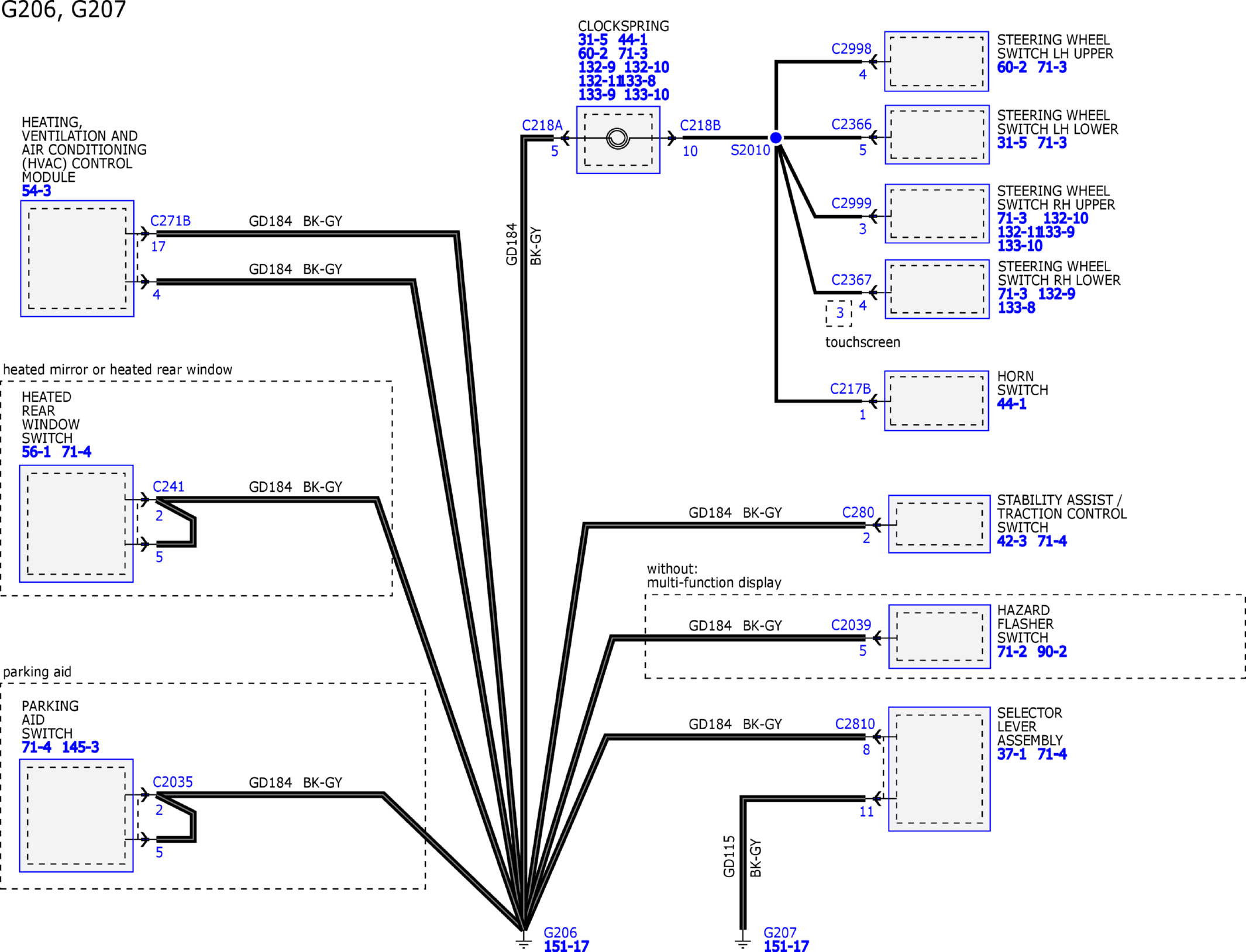

GFDW61417

Courtesy of FORD MOTOR COMPANY

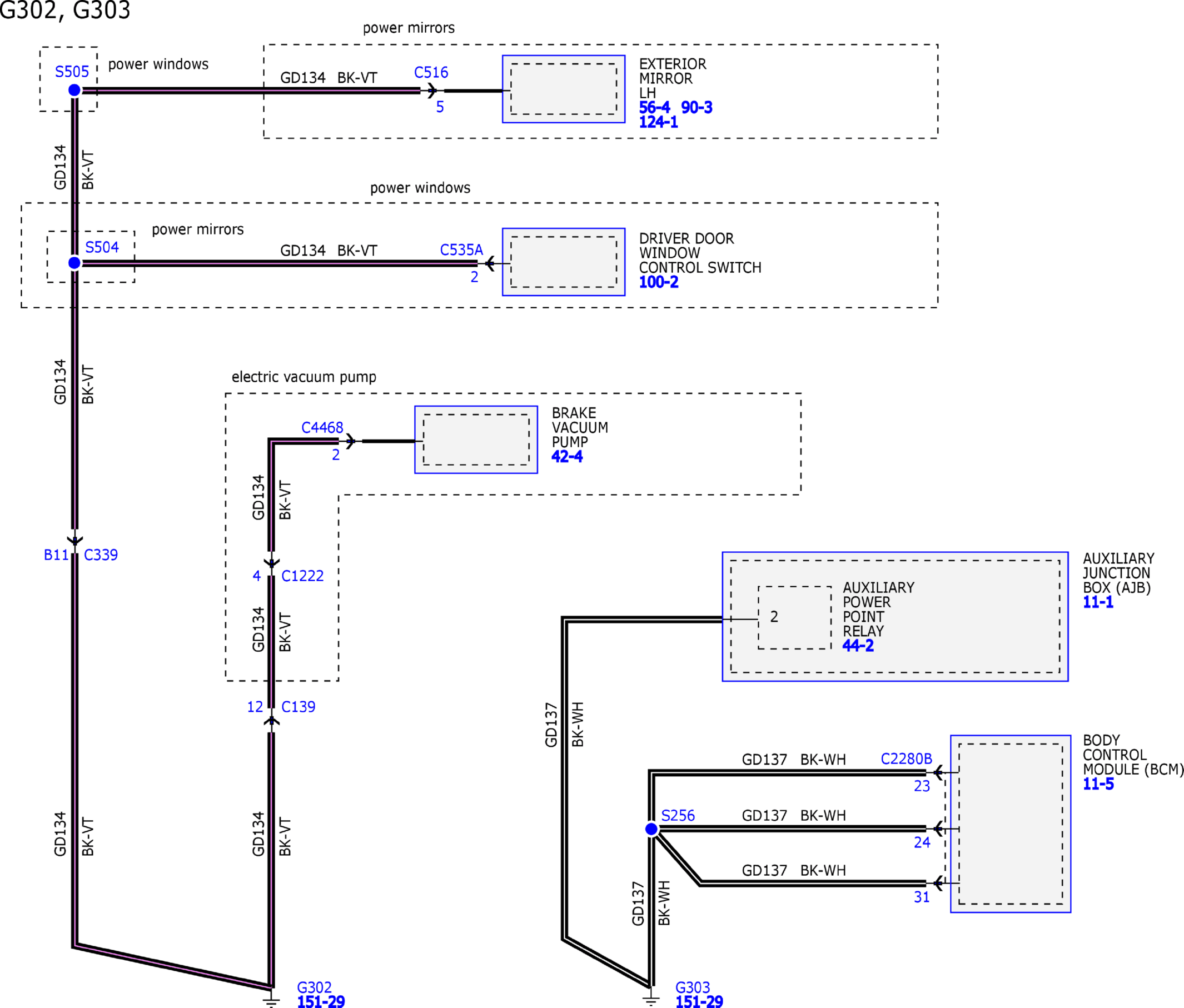

GFDW61418

Courtesy of FORD MOTOR COMPANY

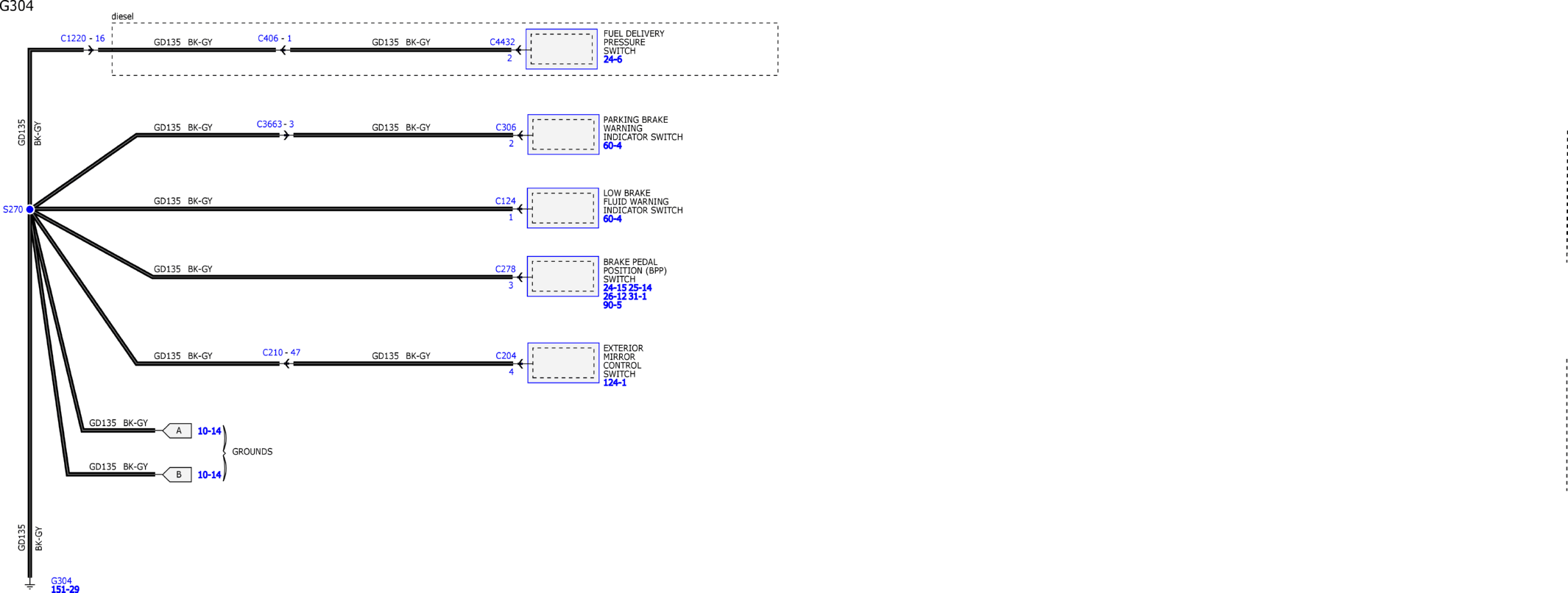

GFDW61419

Courtesy of FORD MOTOR COMPANY

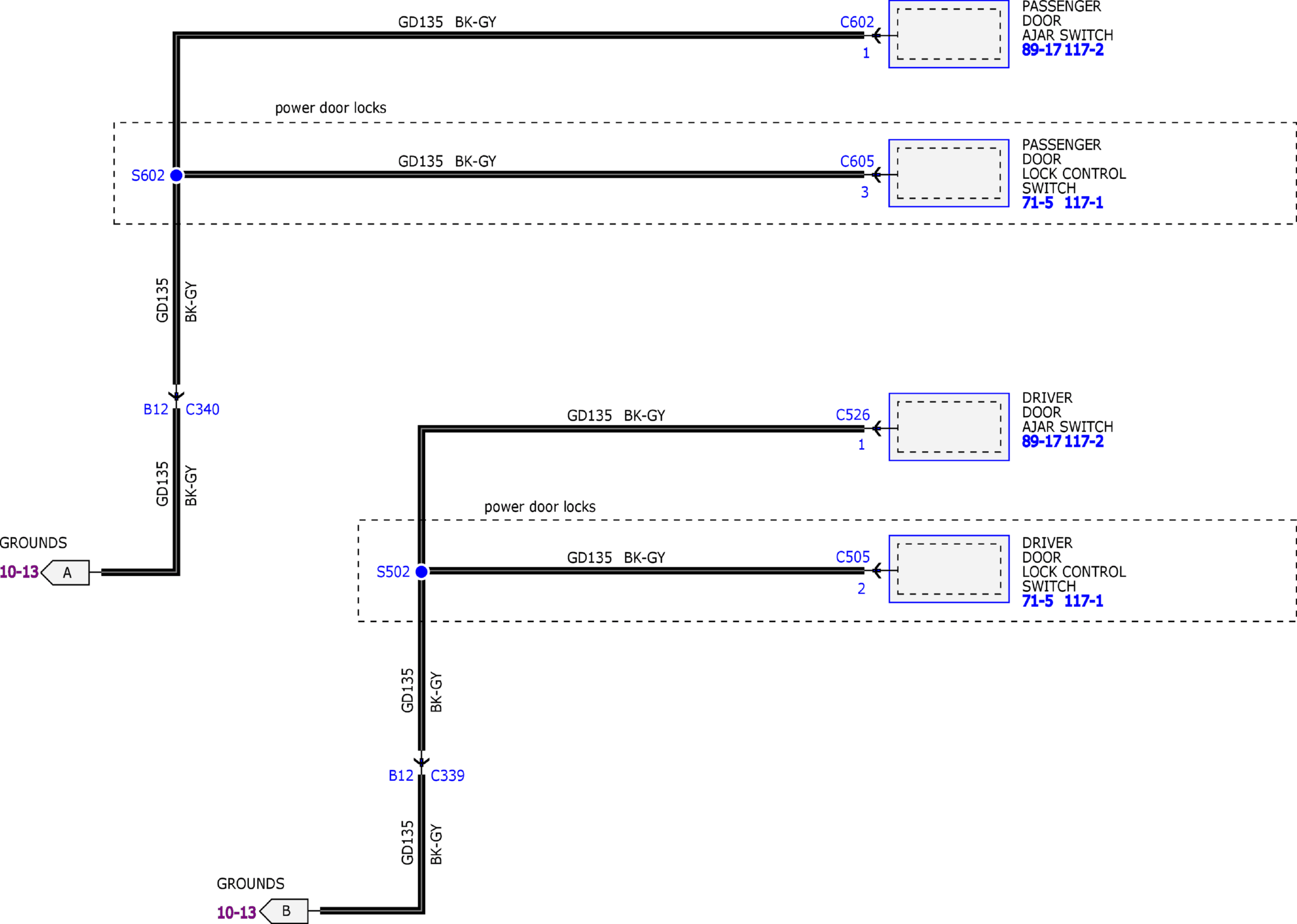

GFDW61420

Courtesy of FORD MOTOR COMPANY

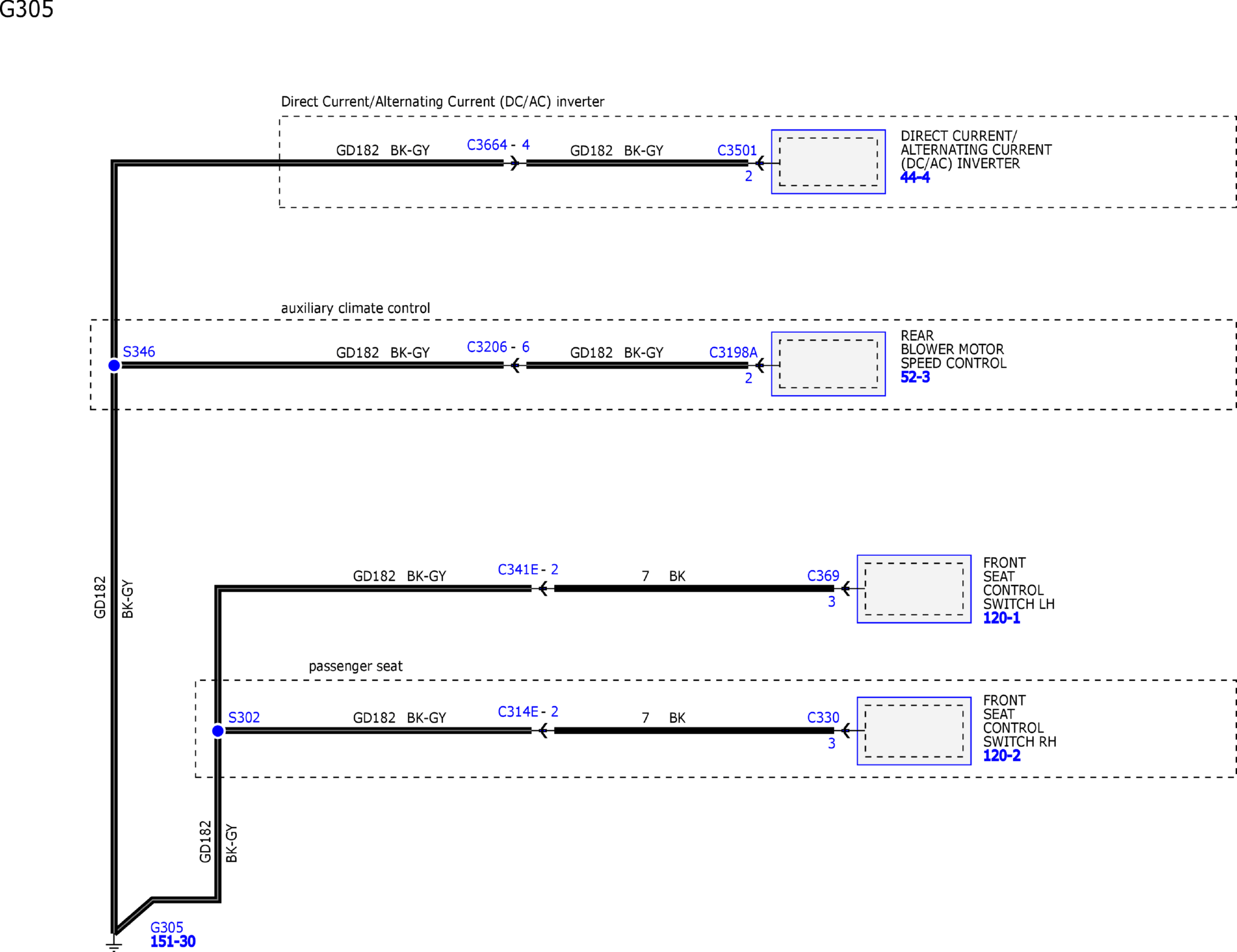

GFDW61421

Courtesy of FORD MOTOR COMPANY

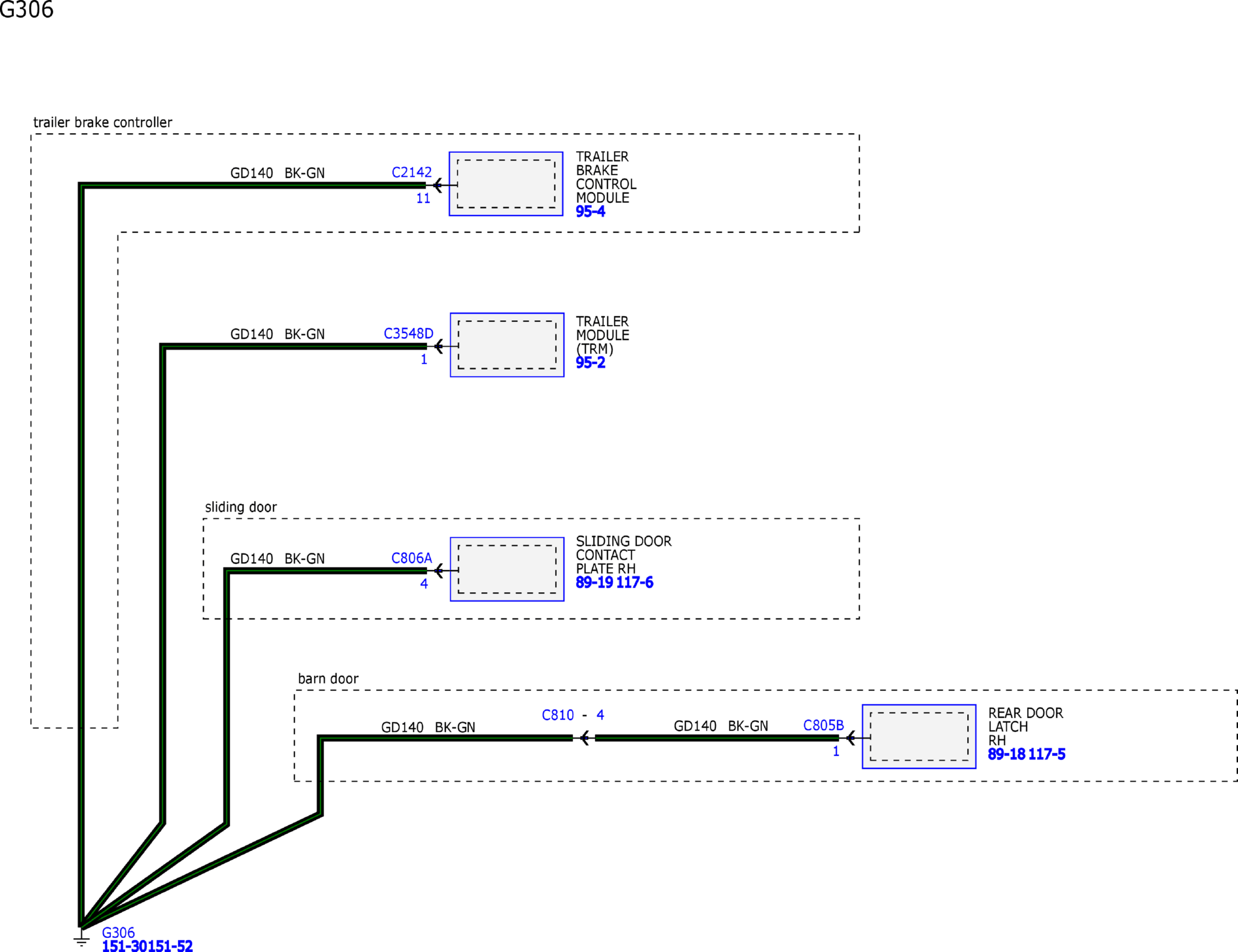

GFDW61422

Courtesy of FORD MOTOR COMPANY

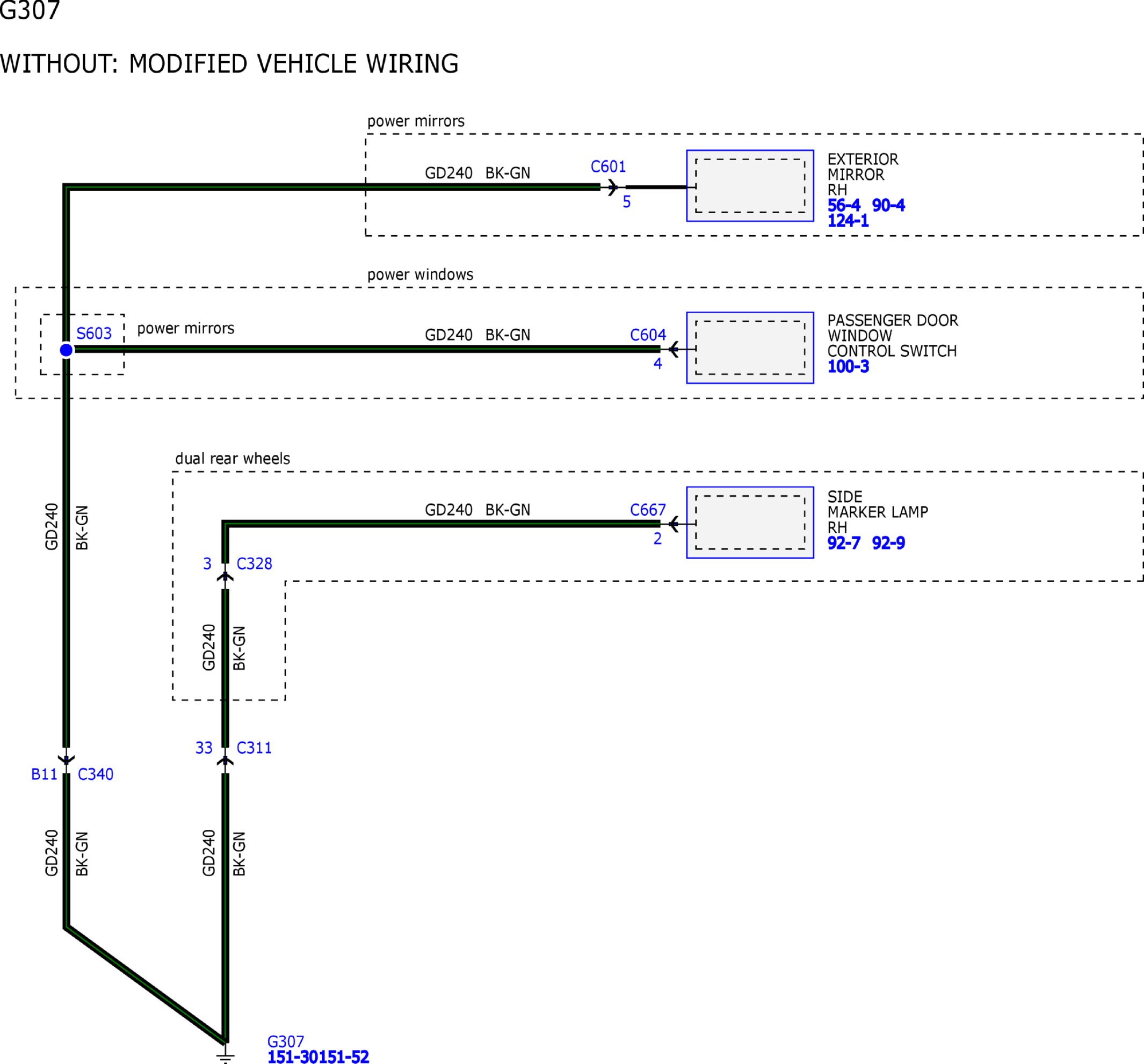

GFDW61423

Courtesy of FORD MOTOR COMPANY

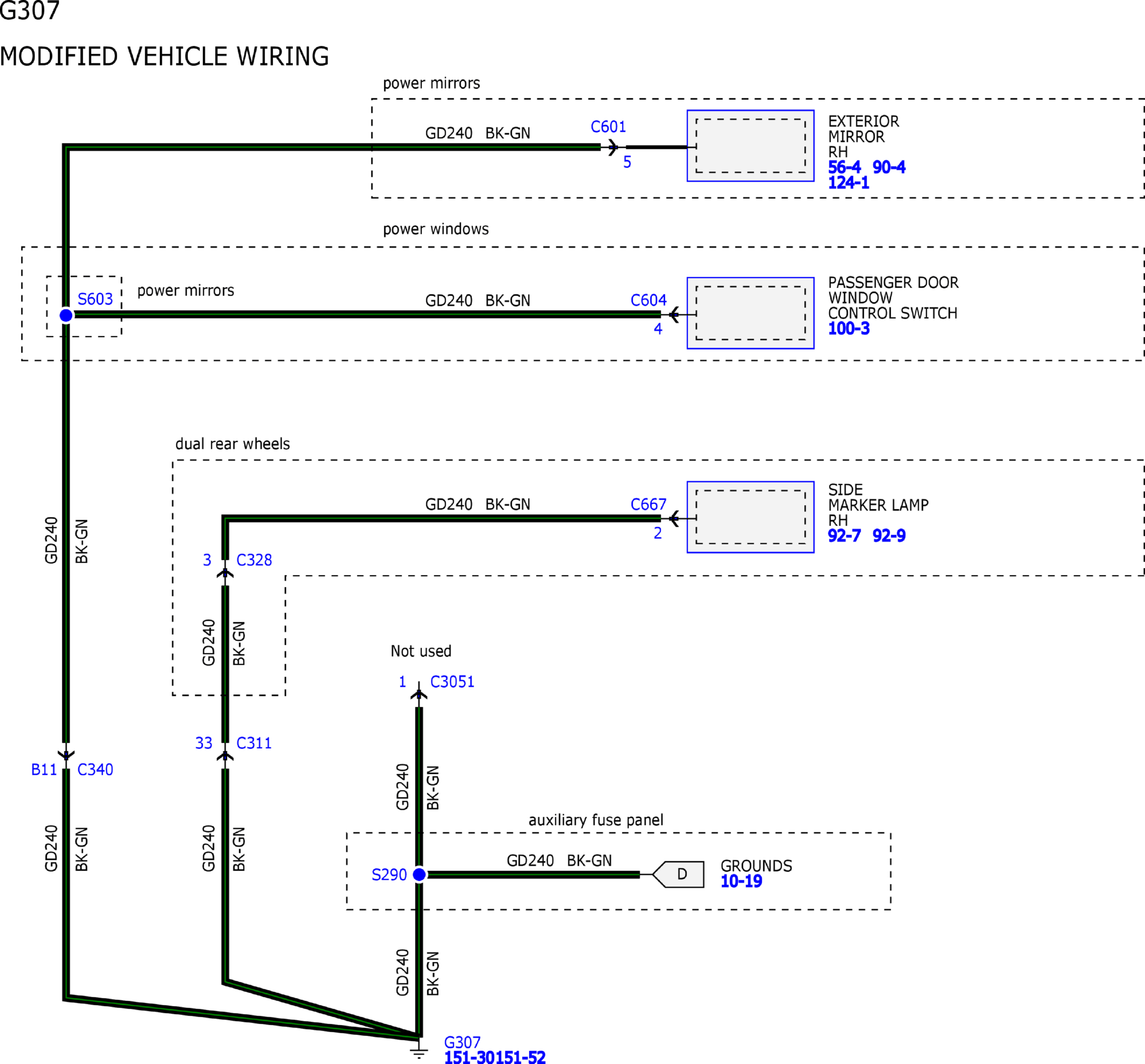

GFDW61424

Courtesy of FORD MOTOR COMPANY

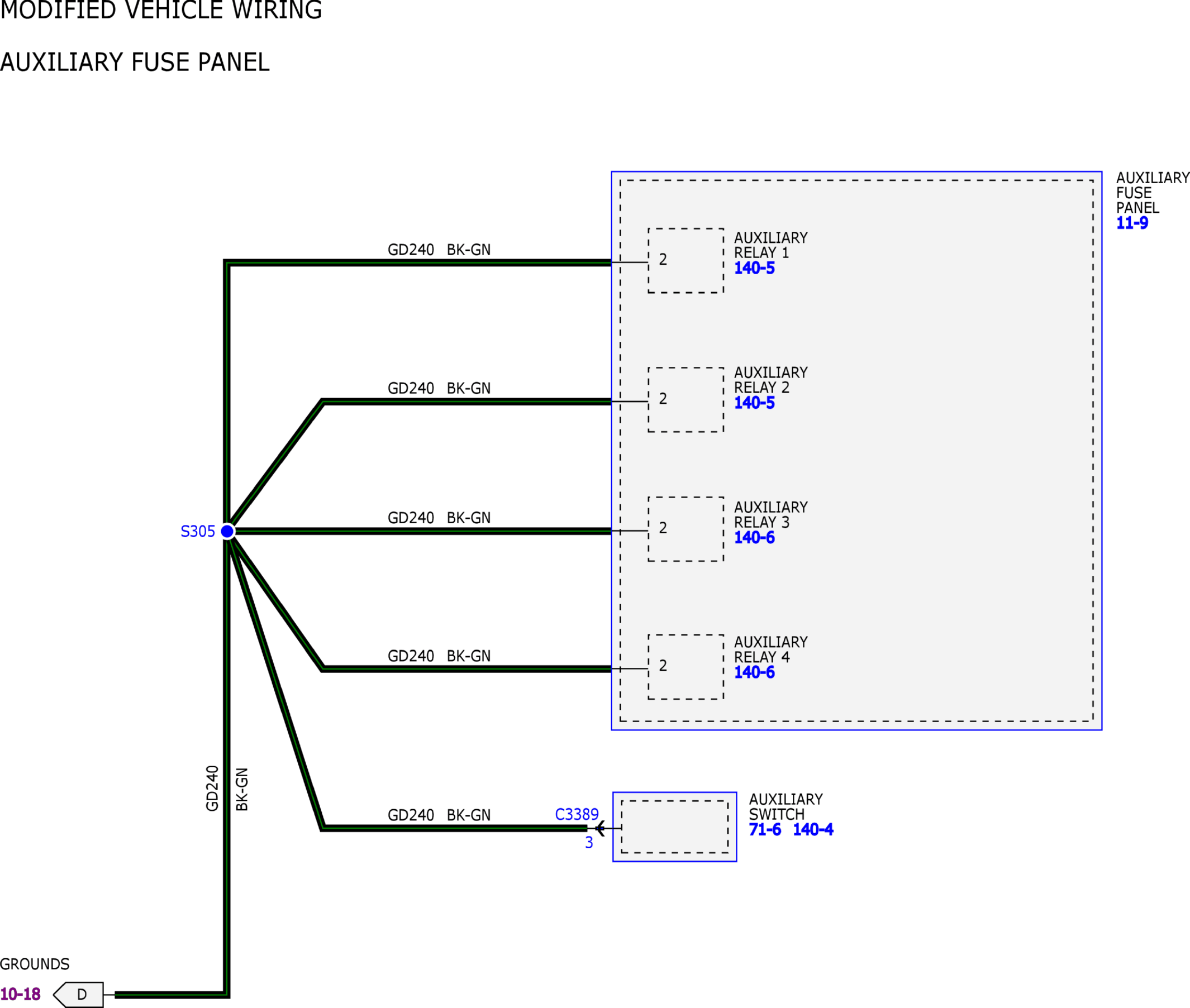

GFDW61425

Courtesy of FORD MOTOR COMPANY

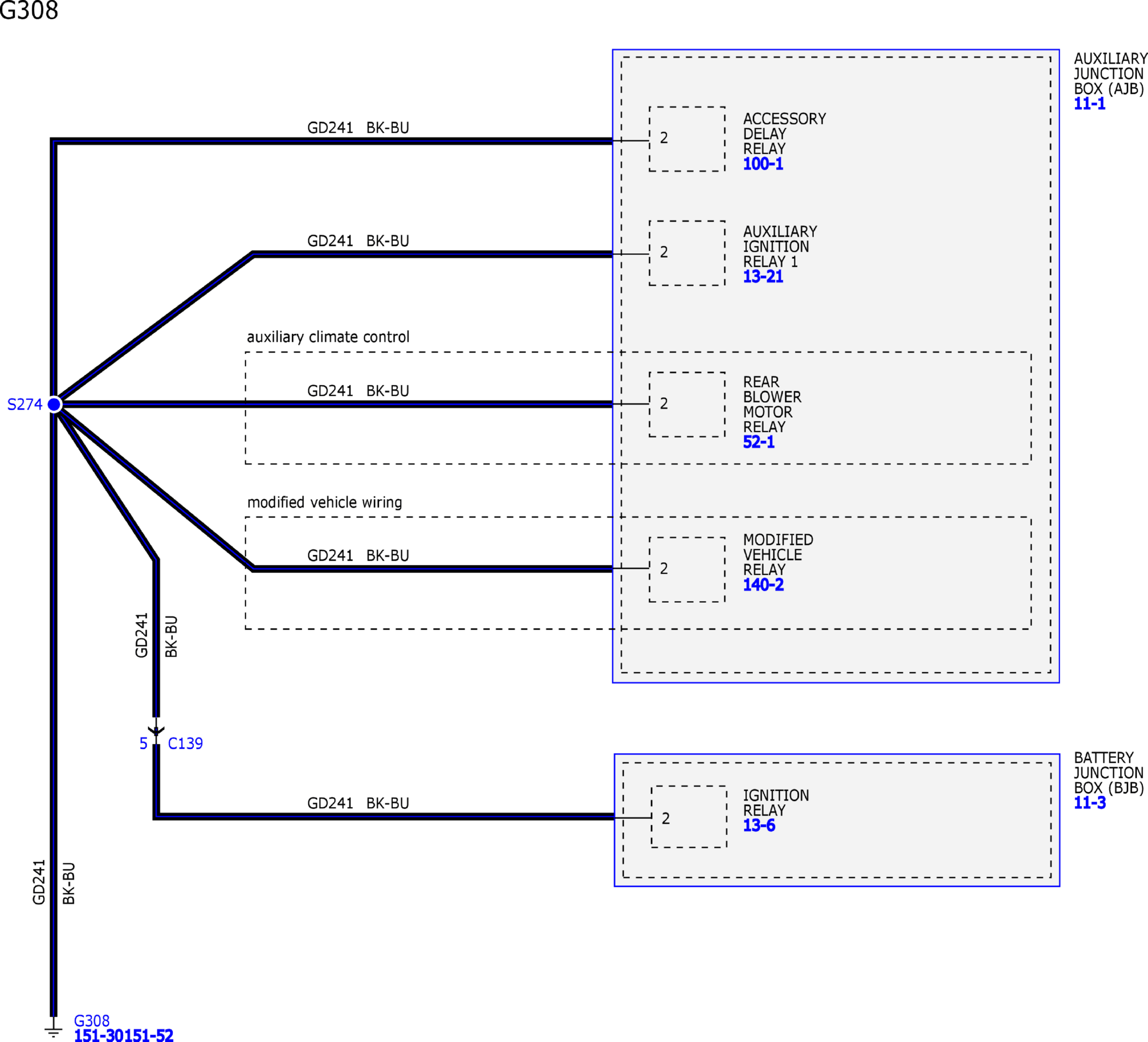

GFDW61426

Courtesy of FORD MOTOR COMPANY

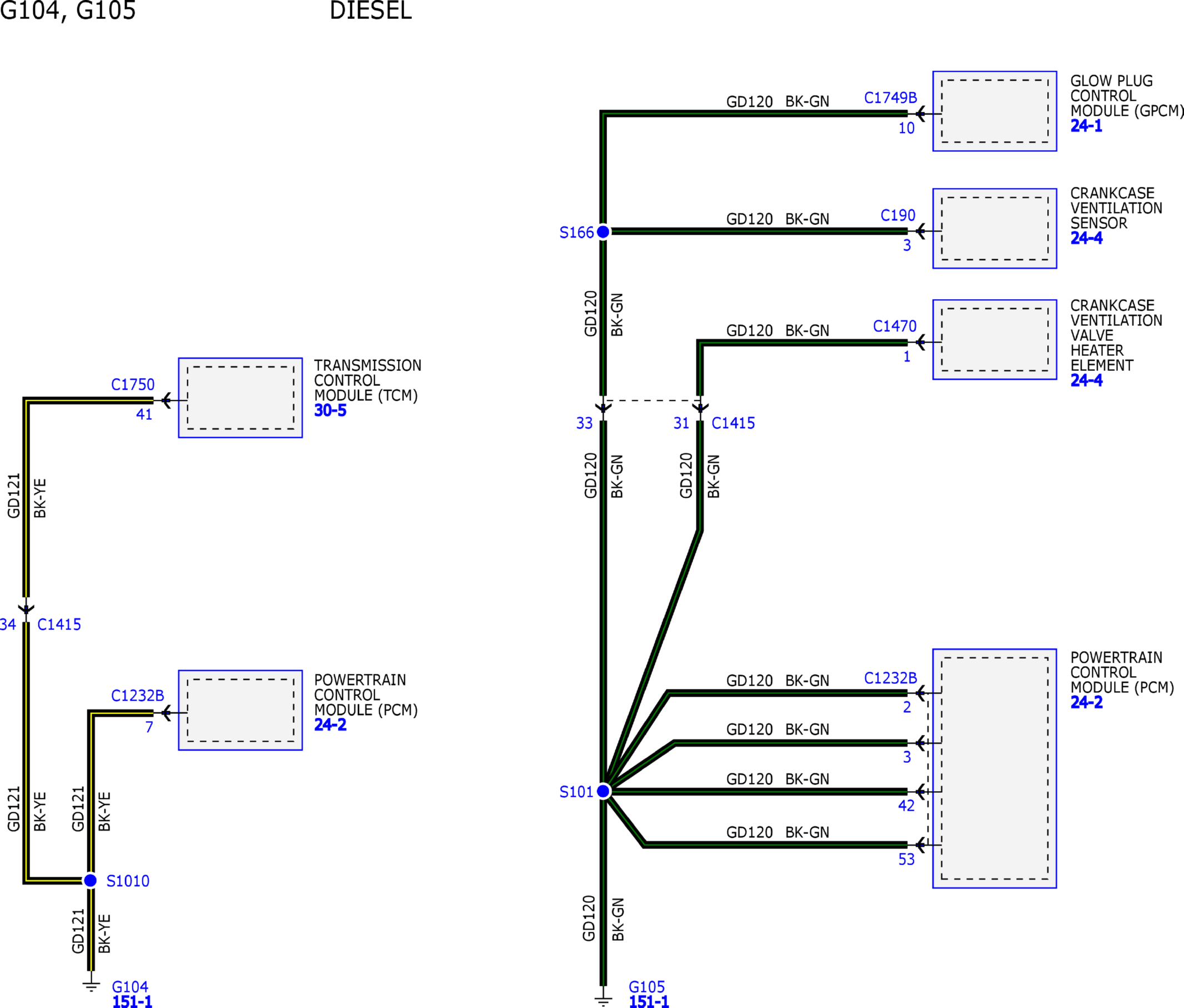

GFDW61427

Courtesy of FORD MOTOR COMPANY

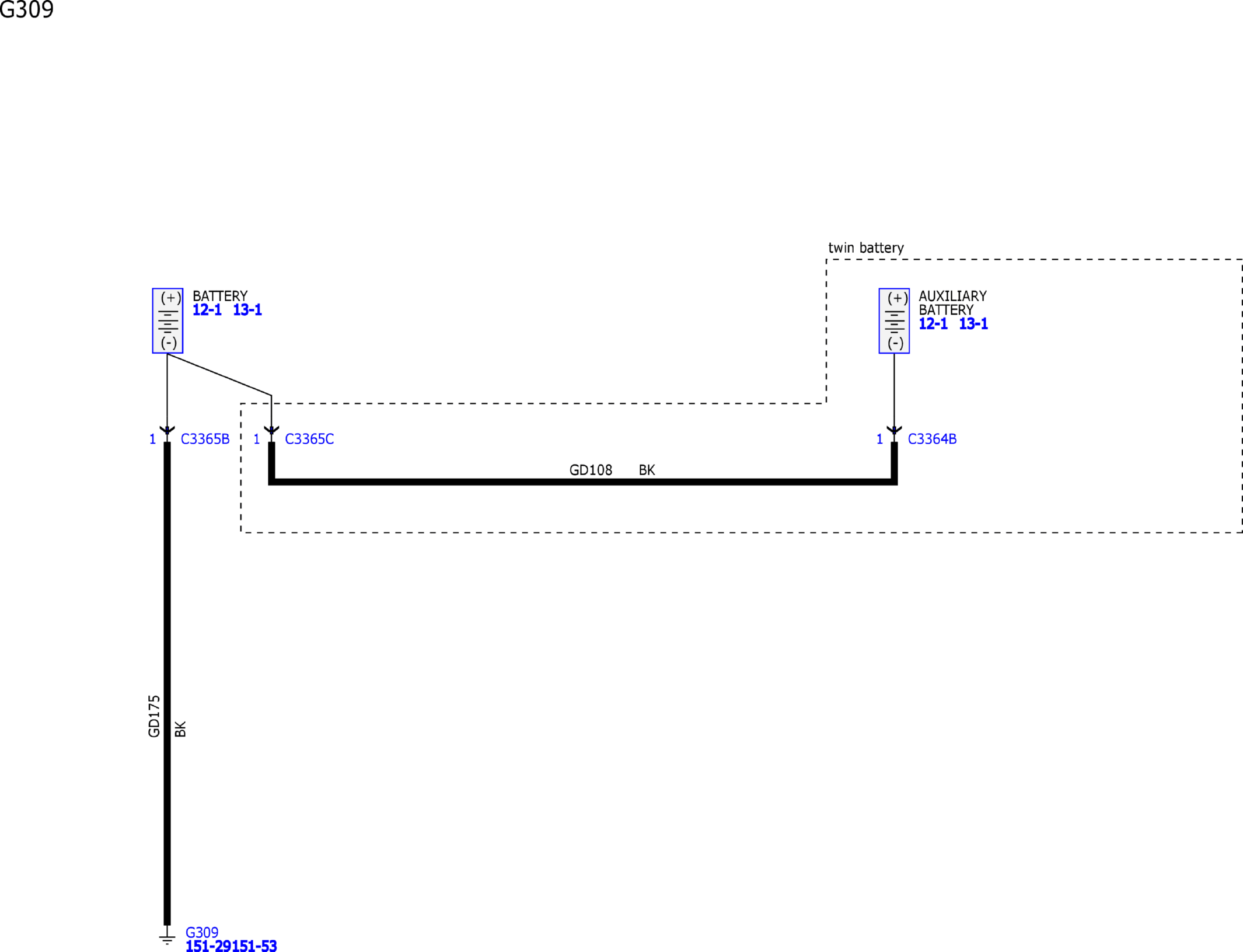

GFDW61428

Courtesy of FORD MOTOR COMPANY

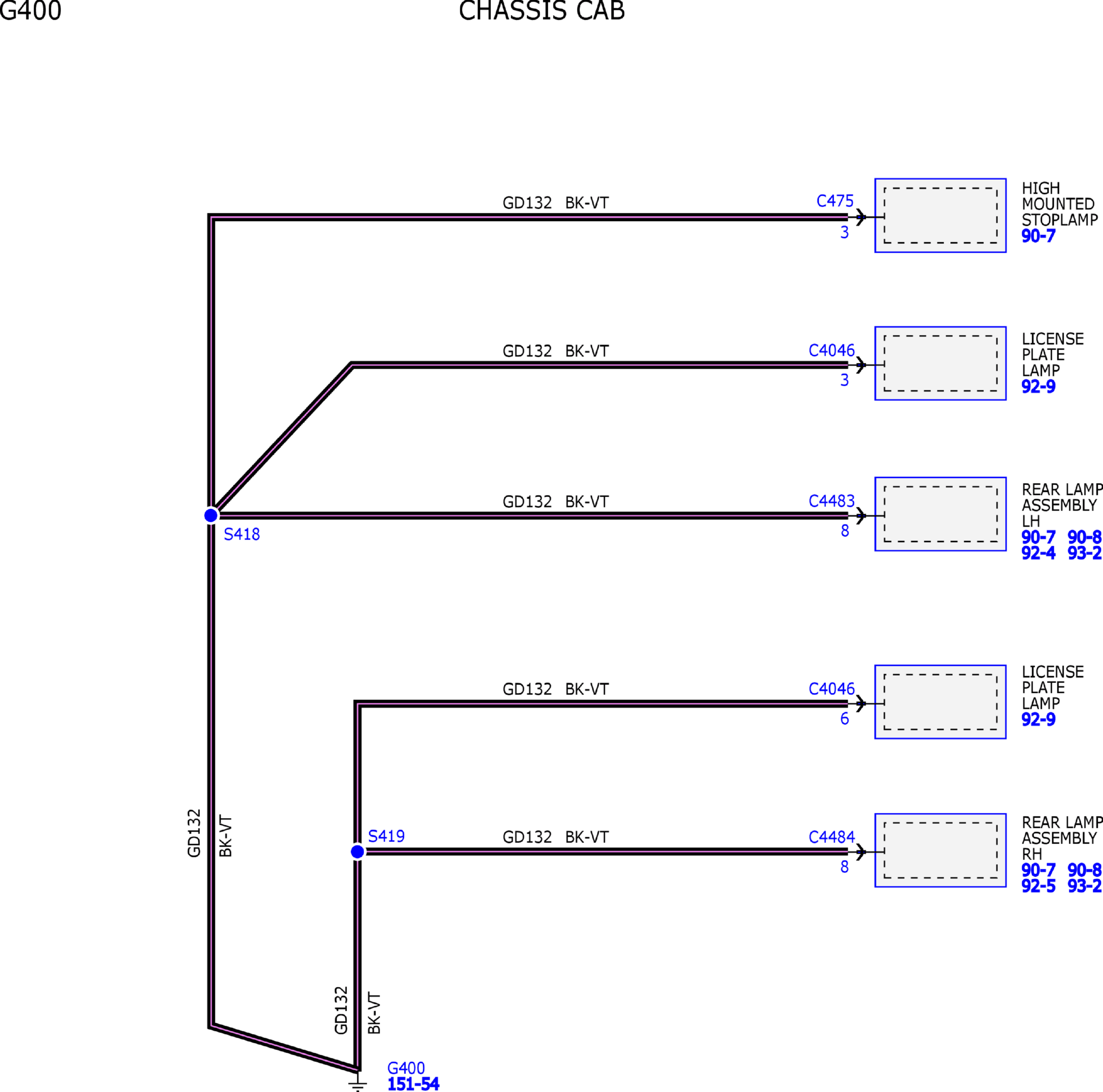

GFDW61429

Courtesy of FORD MOTOR COMPANY

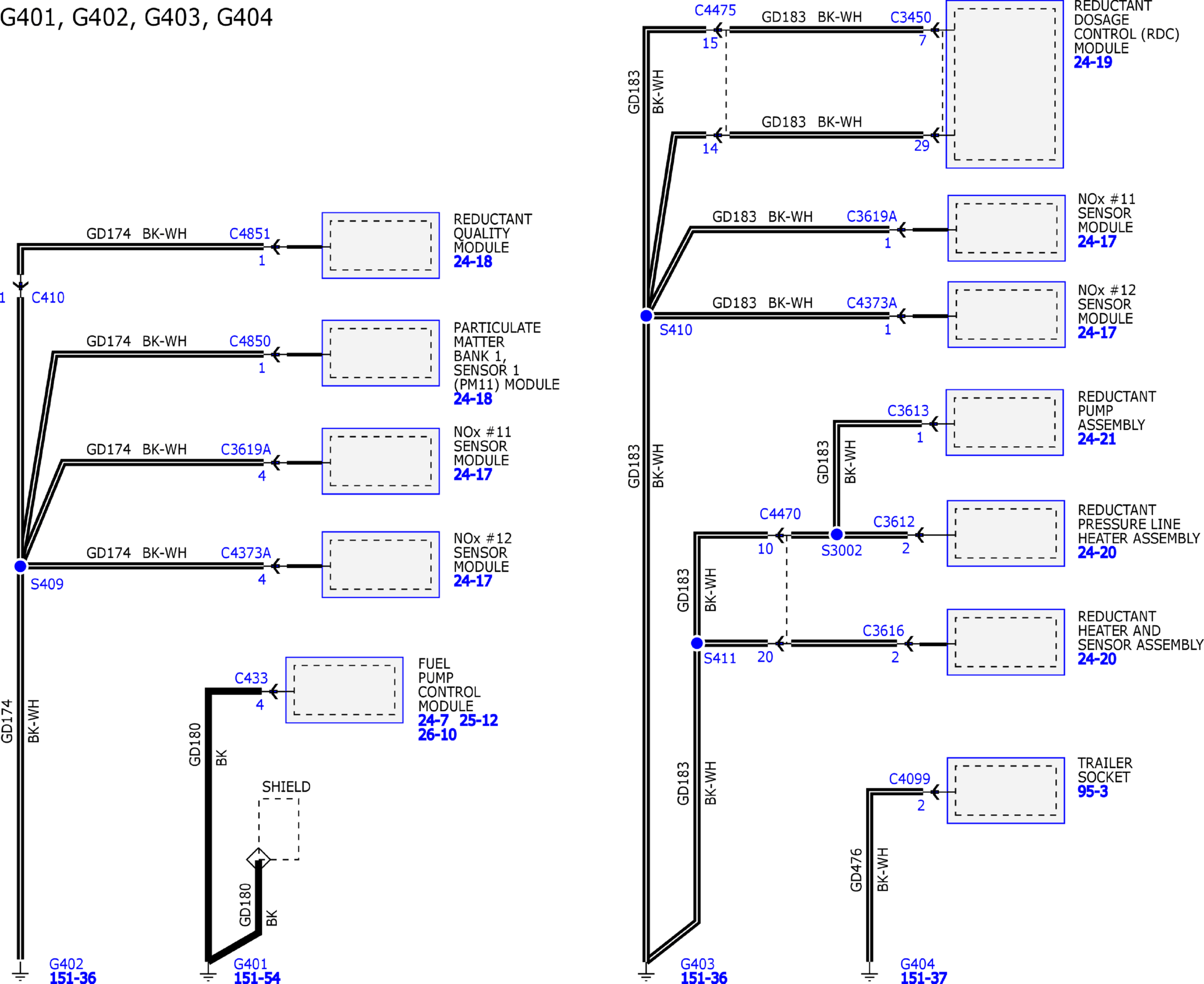

GFDW61430

Courtesy of FORD MOTOR COMPANY

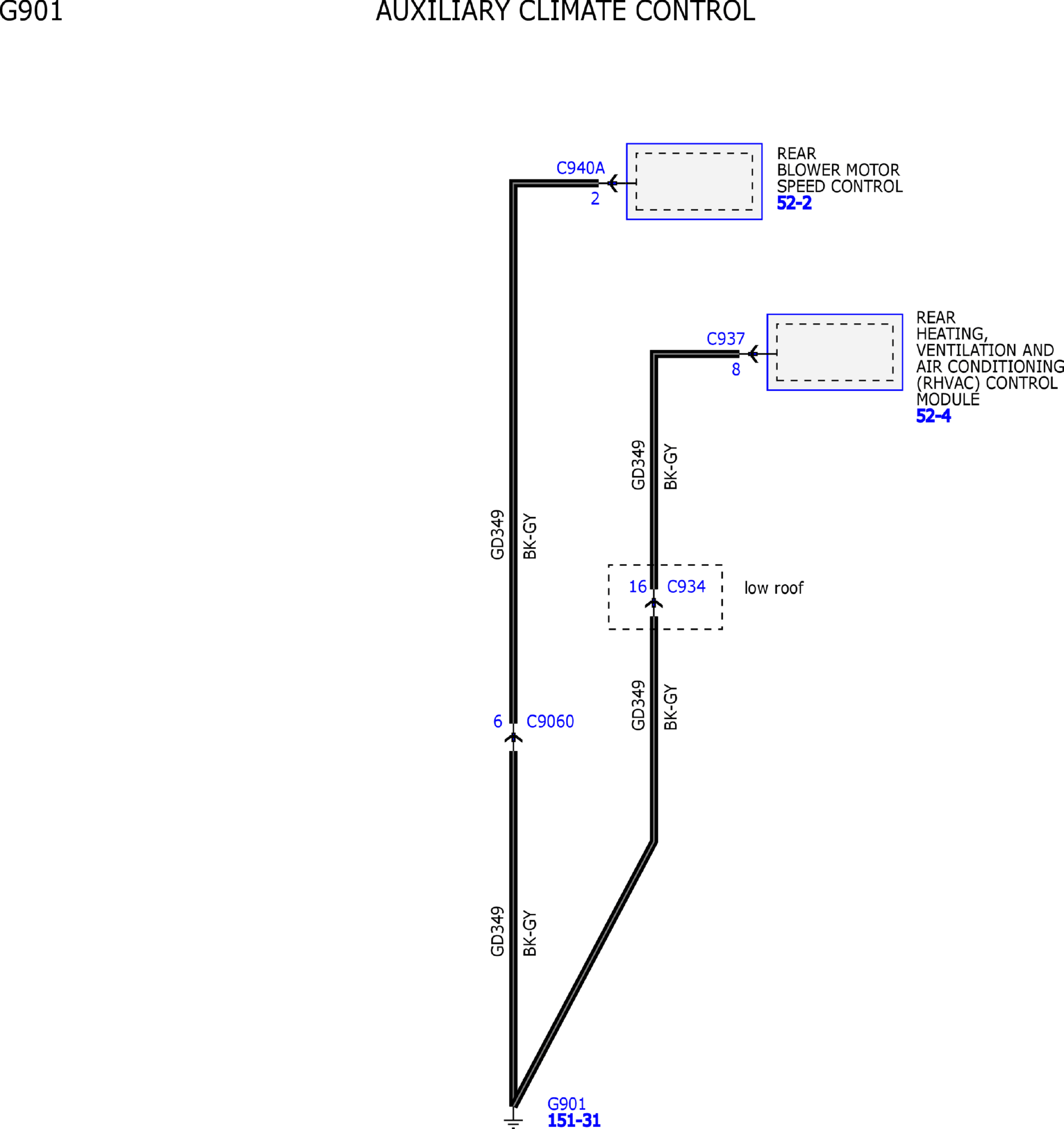

GFDW61431

Courtesy of FORD MOTOR COMPANY

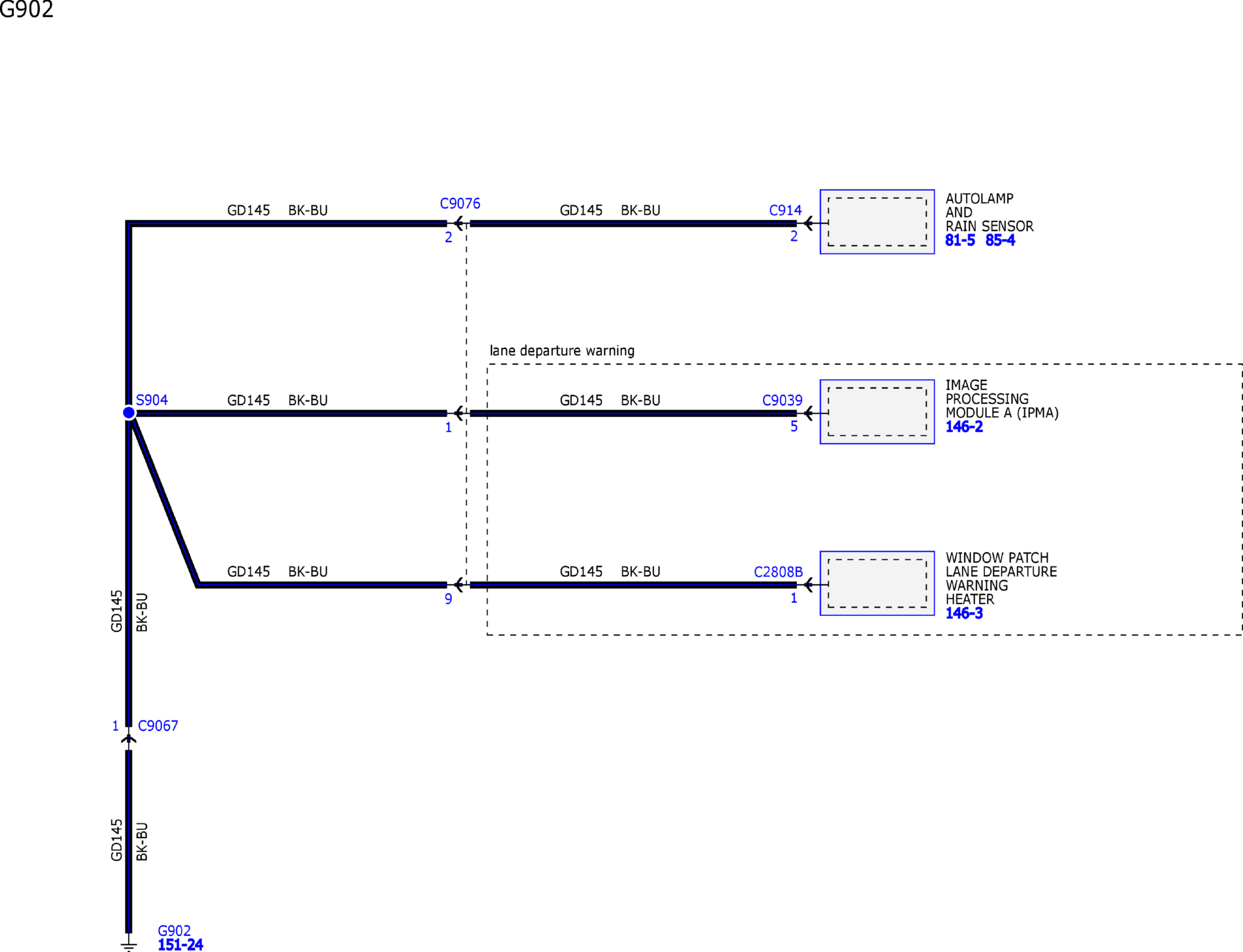

GFDW61432

Courtesy of FORD MOTOR COMPANY

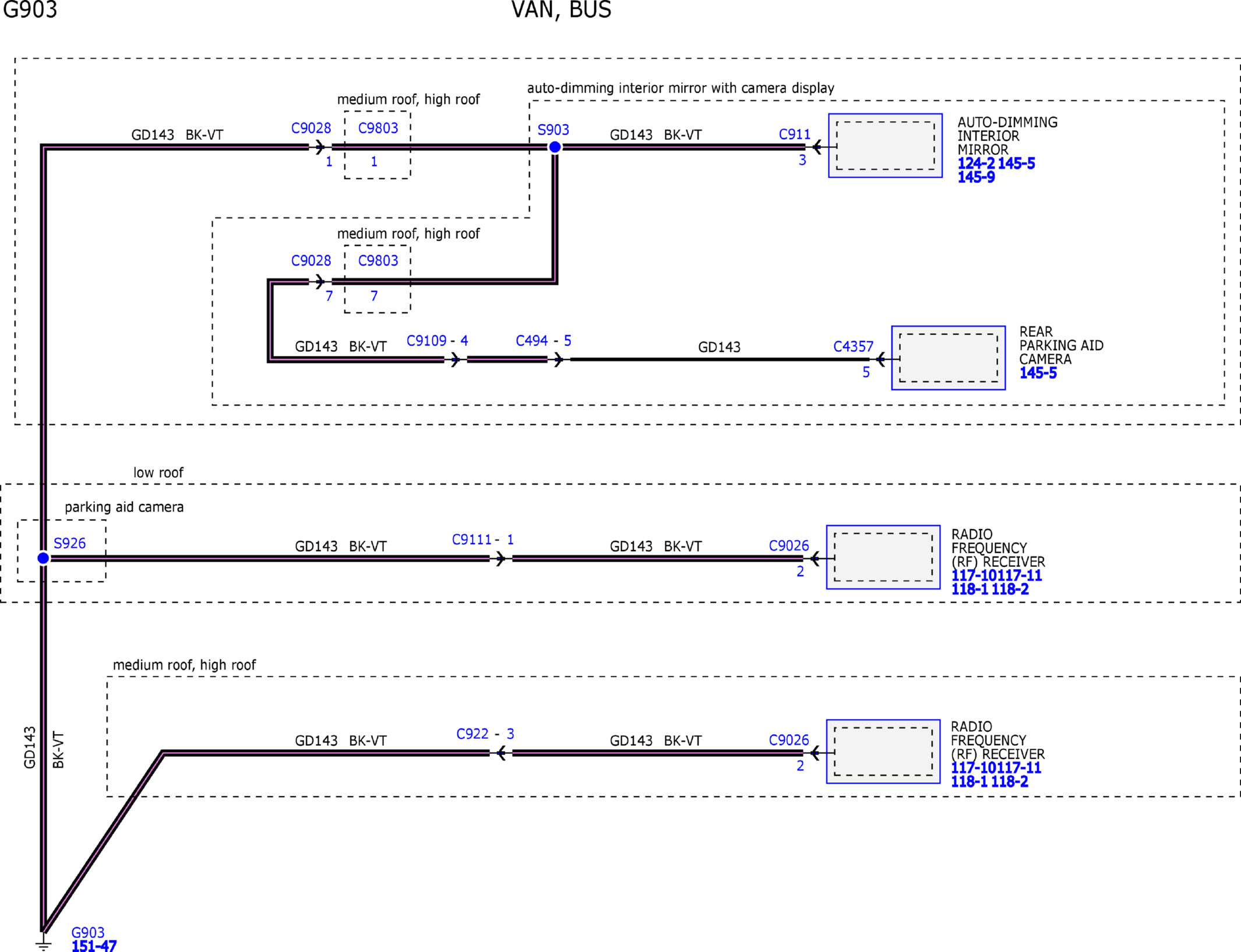

GFDW61433

Courtesy of FORD MOTOR COMPANY

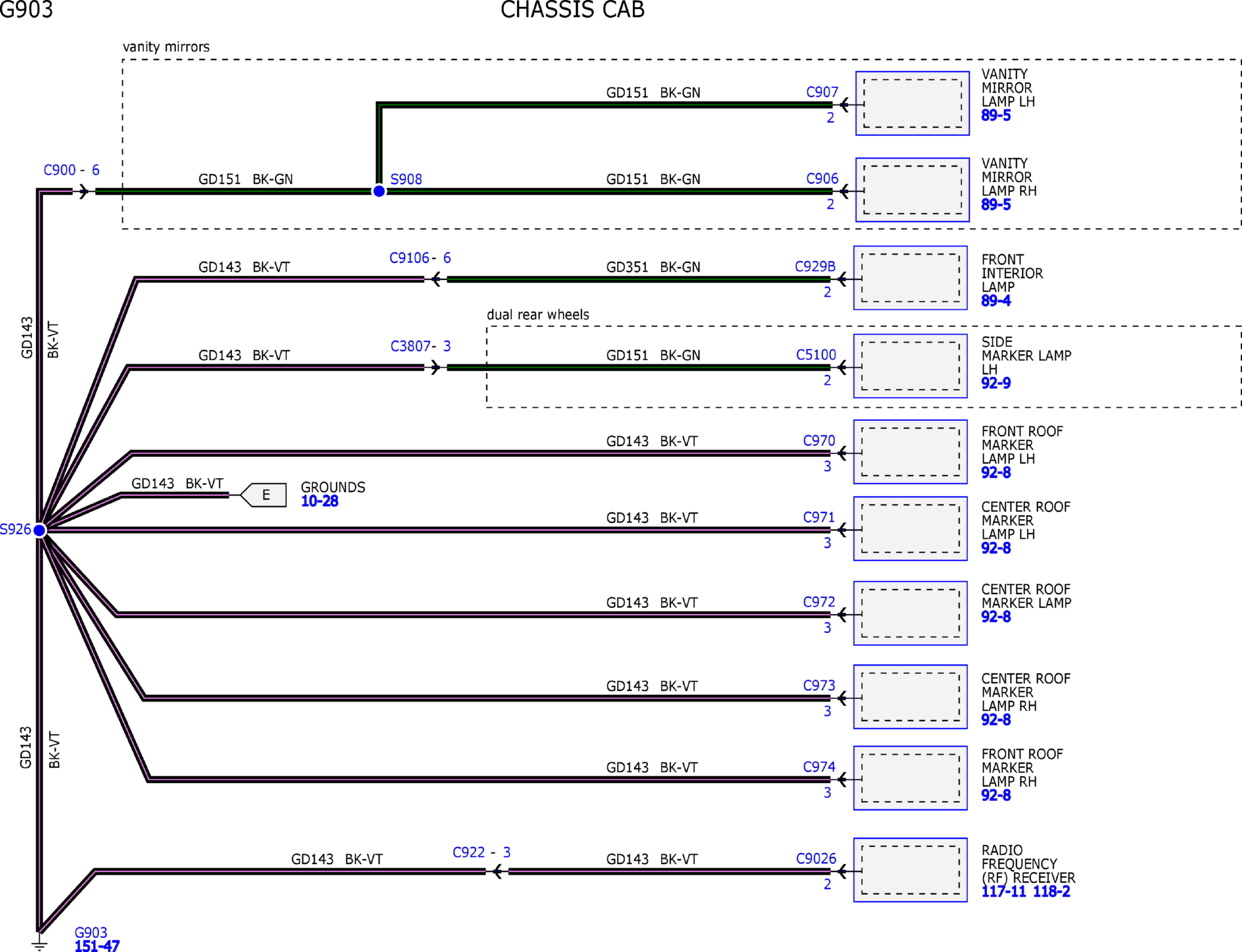

GFDW61434

Courtesy of FORD MOTOR COMPANY

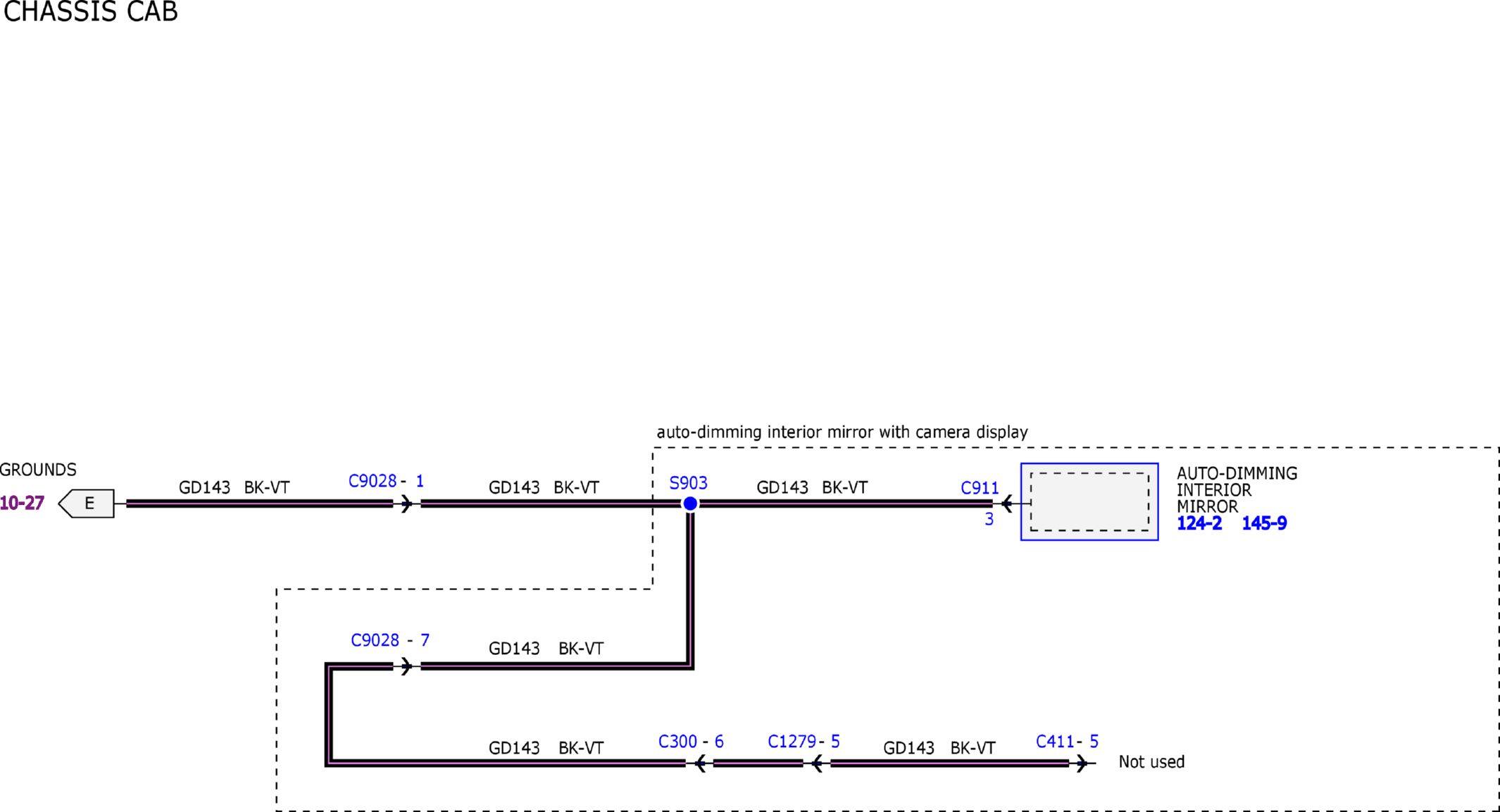

GFDW61435

Courtesy of FORD MOTOR COMPANY

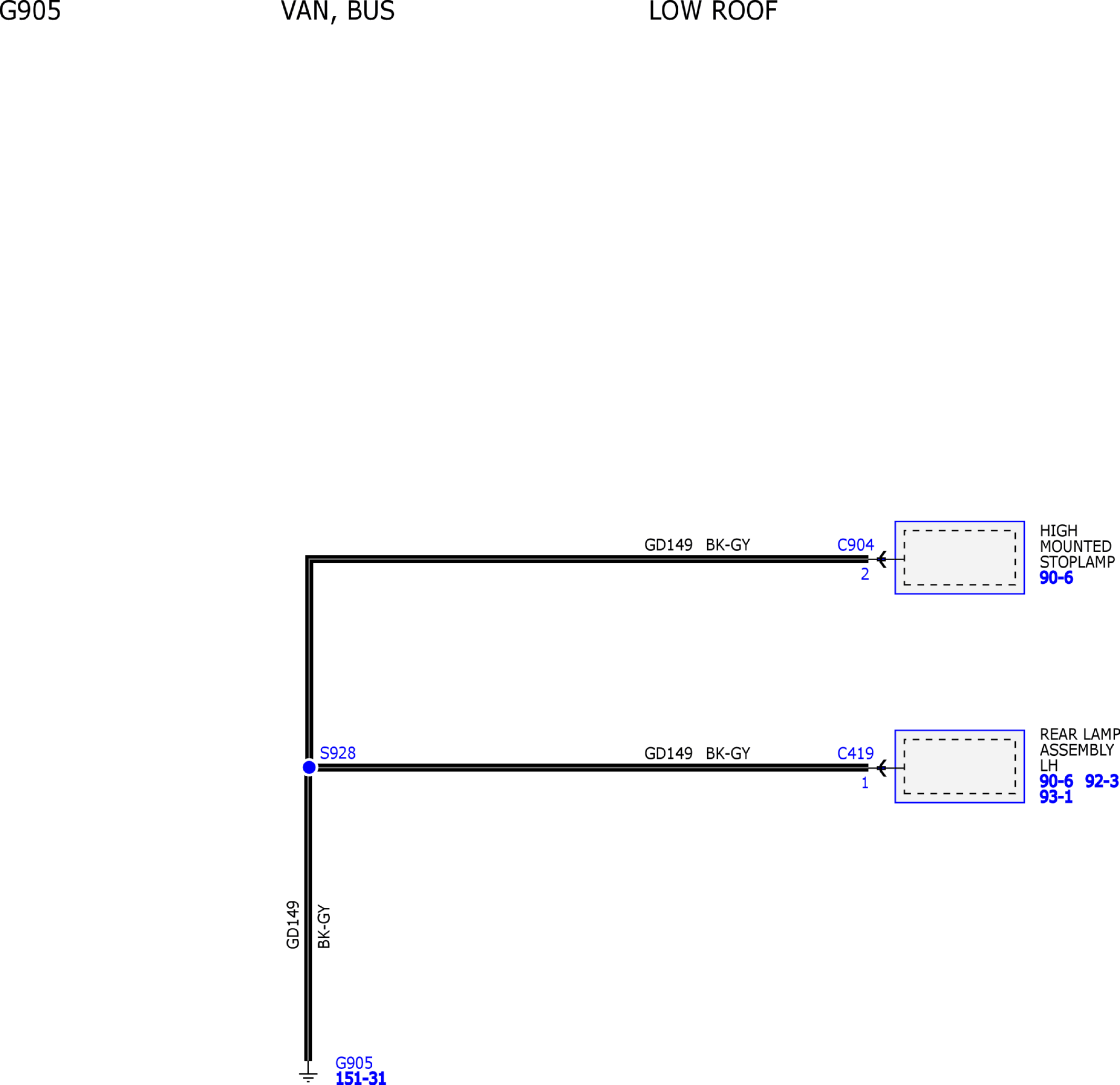

GFDW61436

Courtesy of FORD MOTOR COMPANY

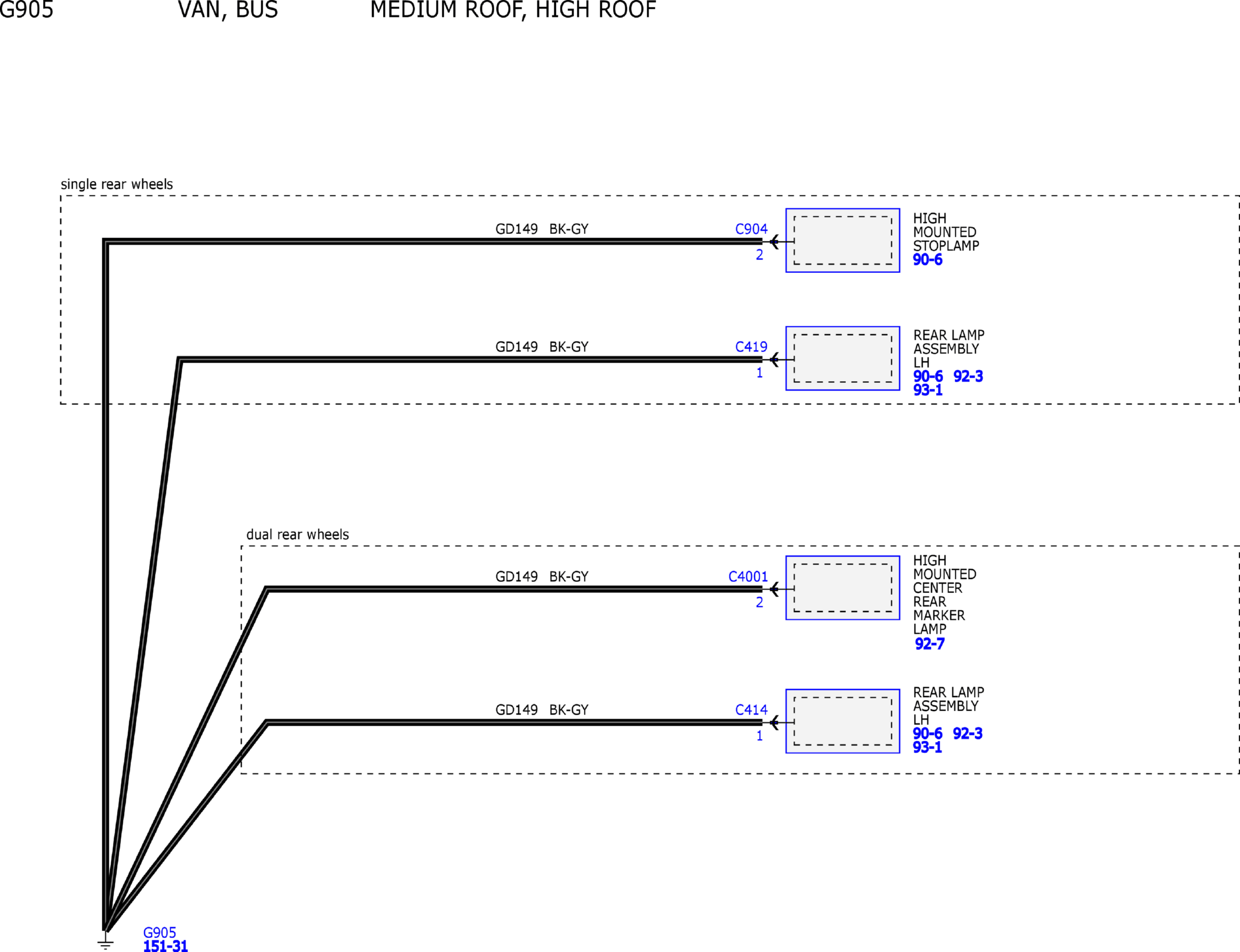

GFDW61437

Courtesy of FORD MOTOR COMPANY

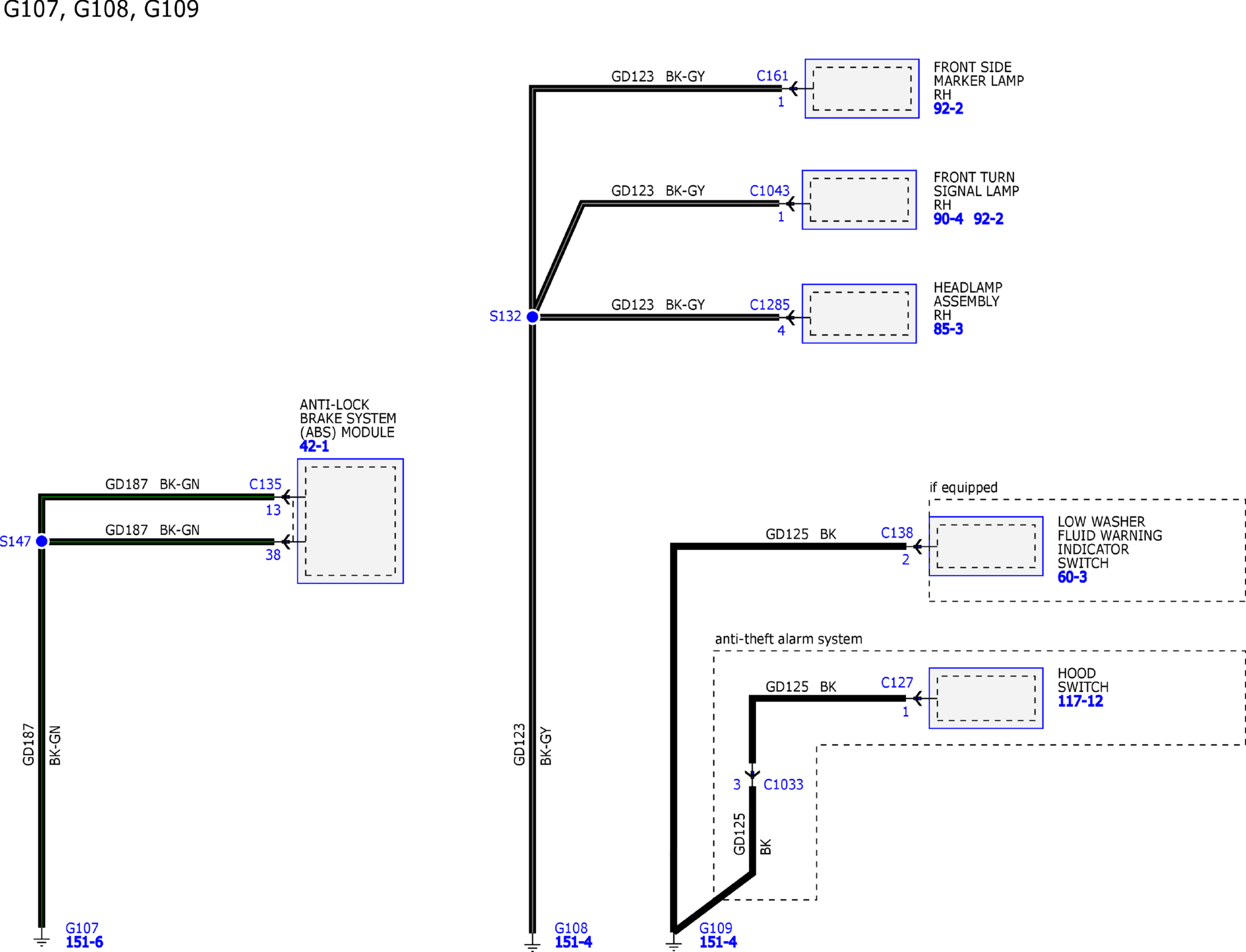

GFDW61438

Courtesy of FORD MOTOR COMPANY

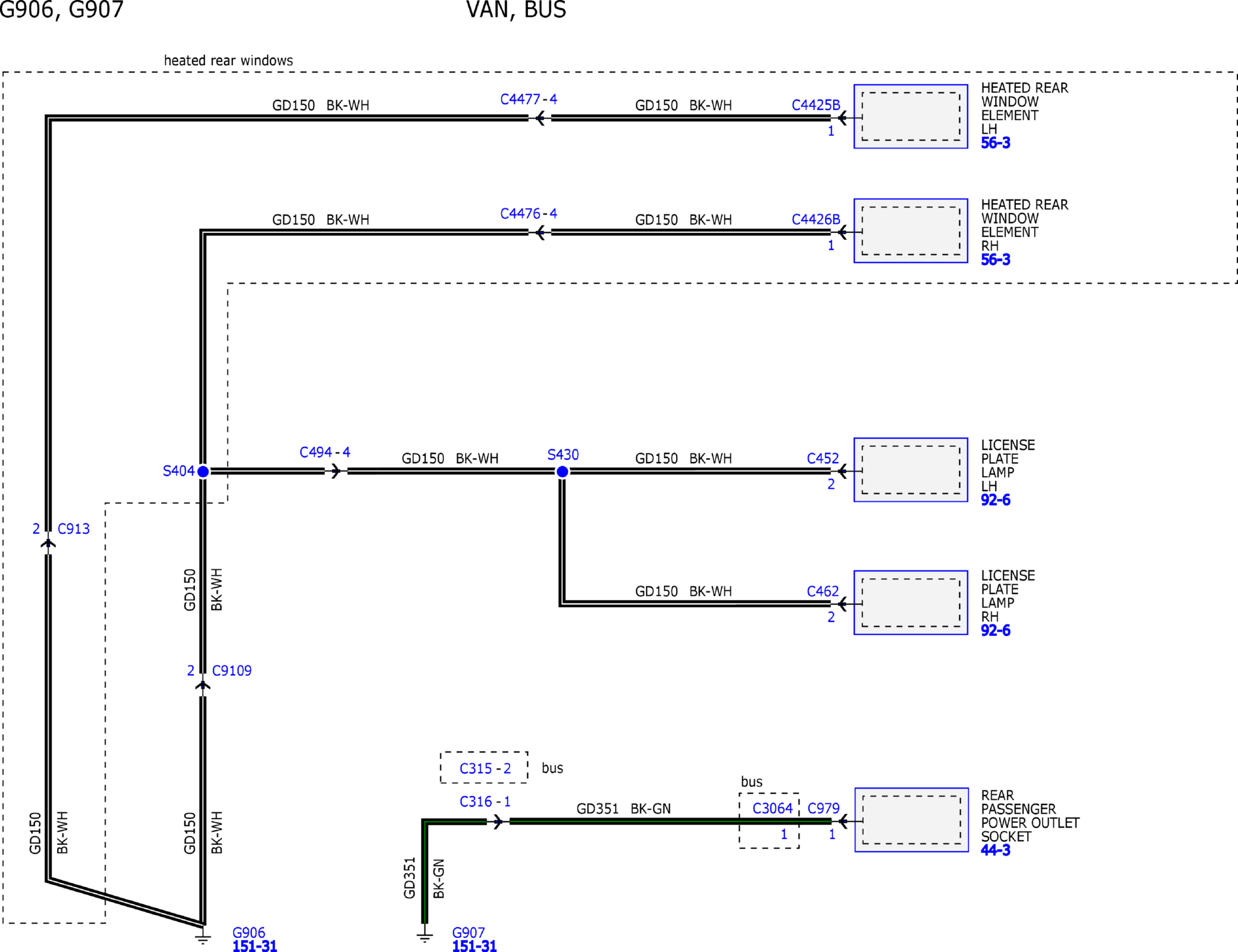

GFDW61439

Courtesy of FORD MOTOR COMPANY

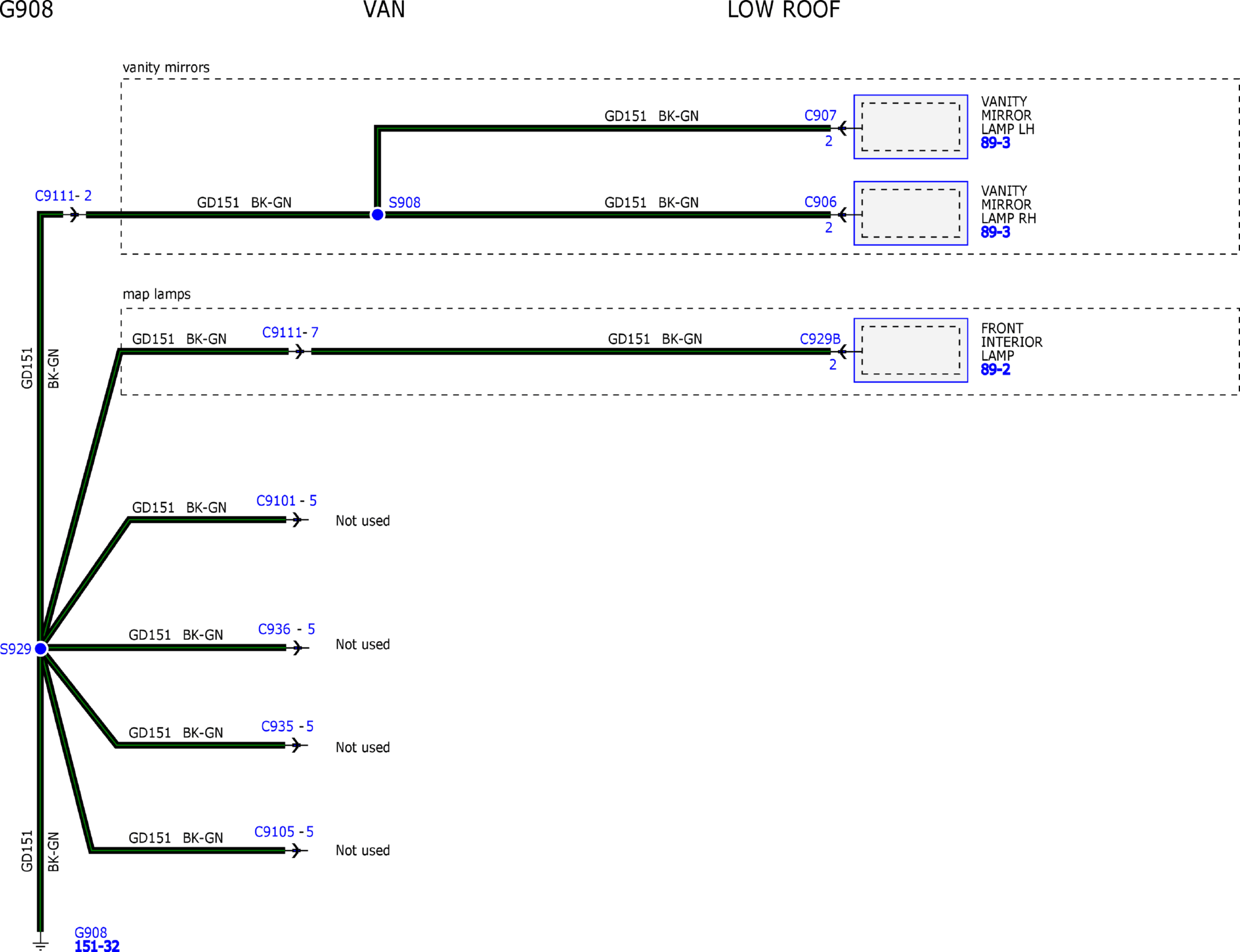

GFDW61440

Courtesy of FORD MOTOR COMPANY

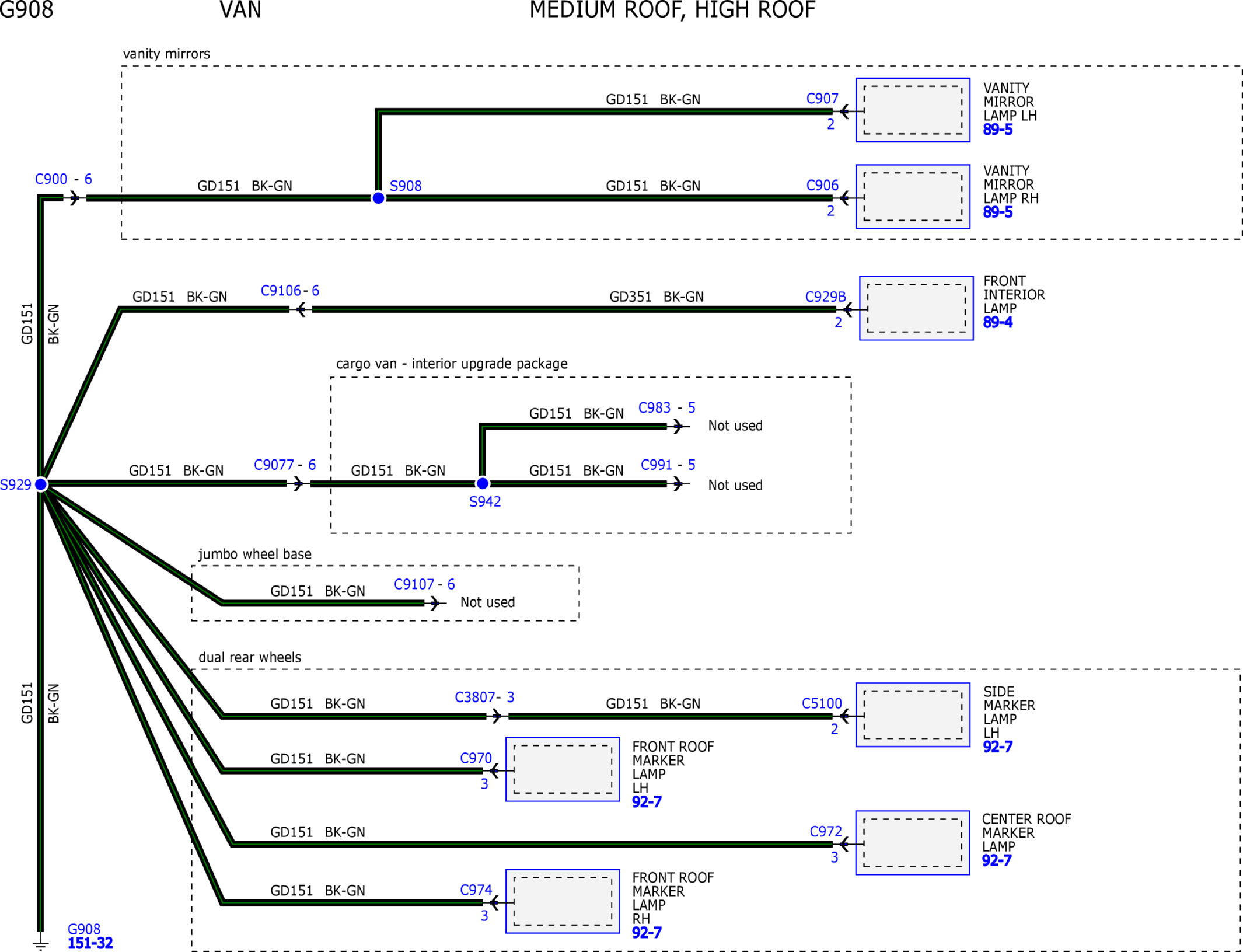

GFDW61441

Courtesy of FORD MOTOR COMPANY

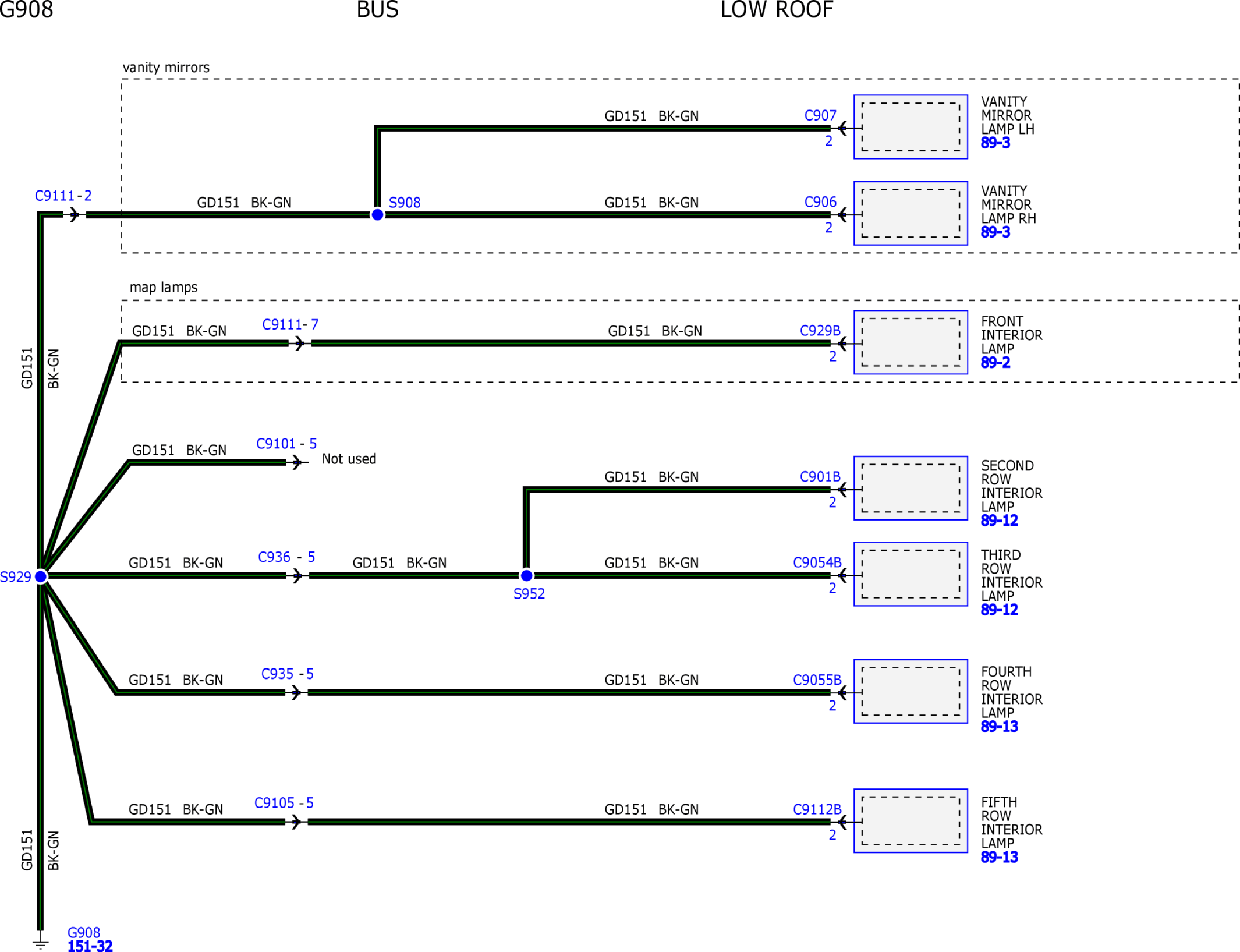

GFDW61442

Courtesy of FORD MOTOR COMPANY

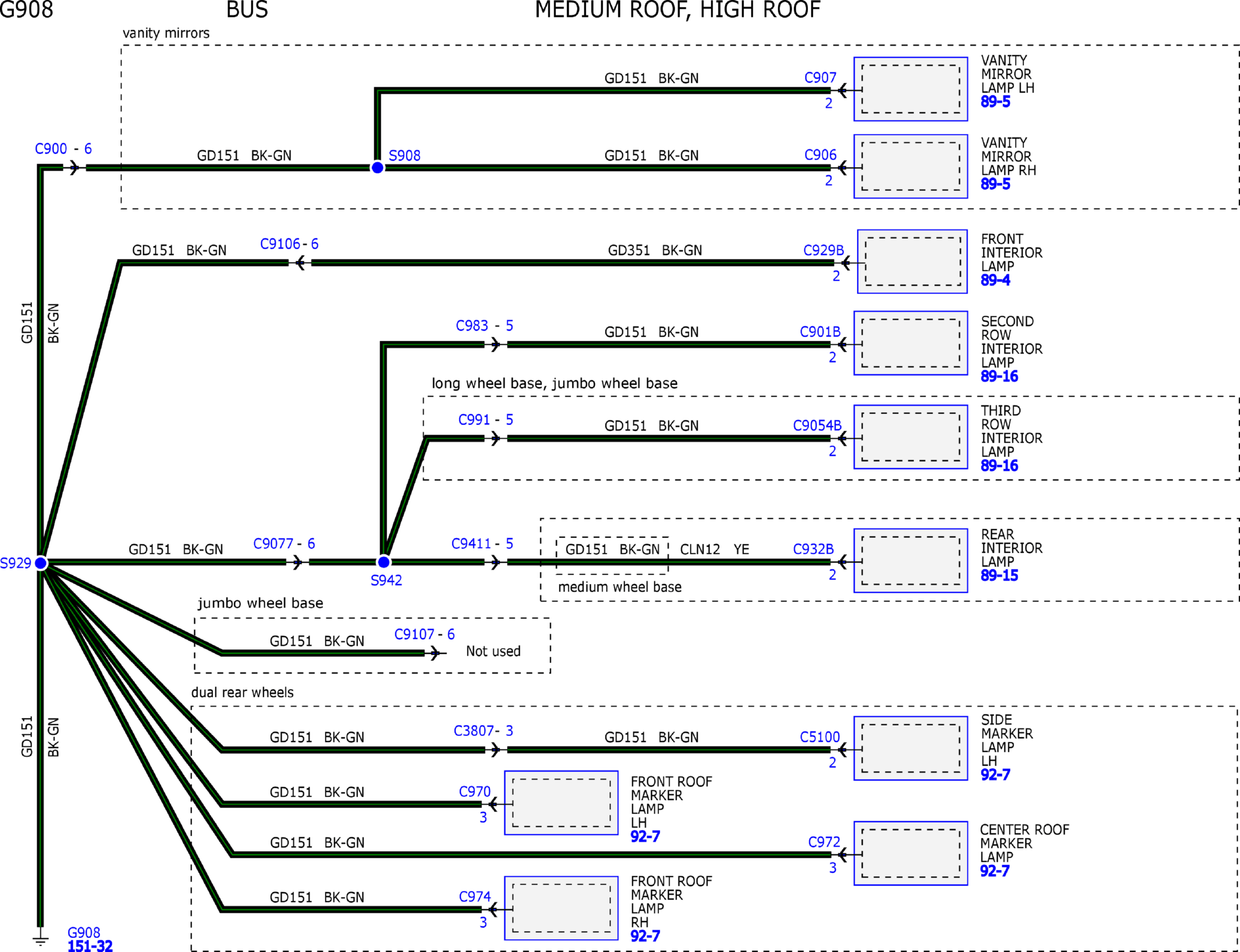

GFDW61443

Courtesy of FORD MOTOR COMPANY

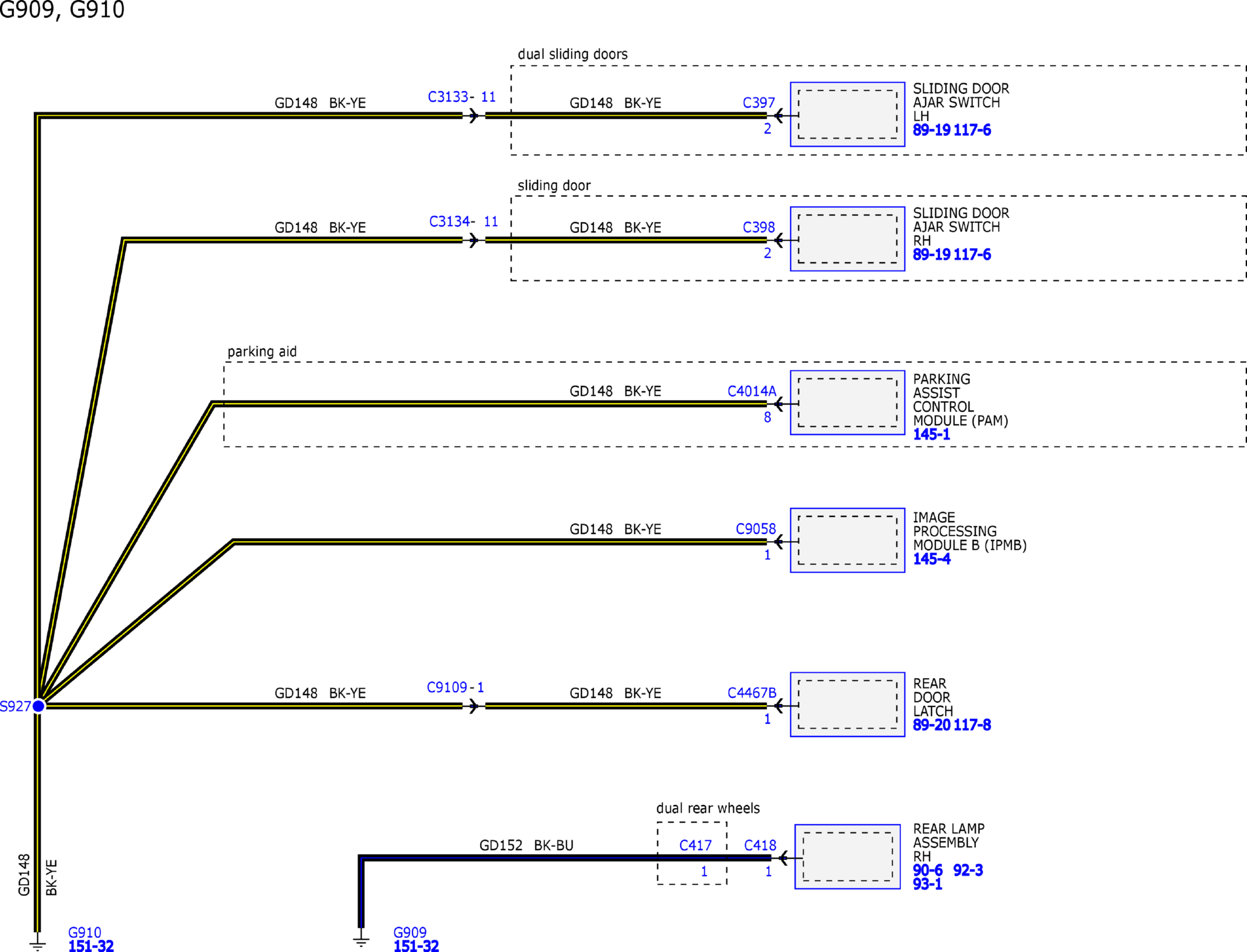

GFDW61444

Courtesy of FORD MOTOR COMPANY

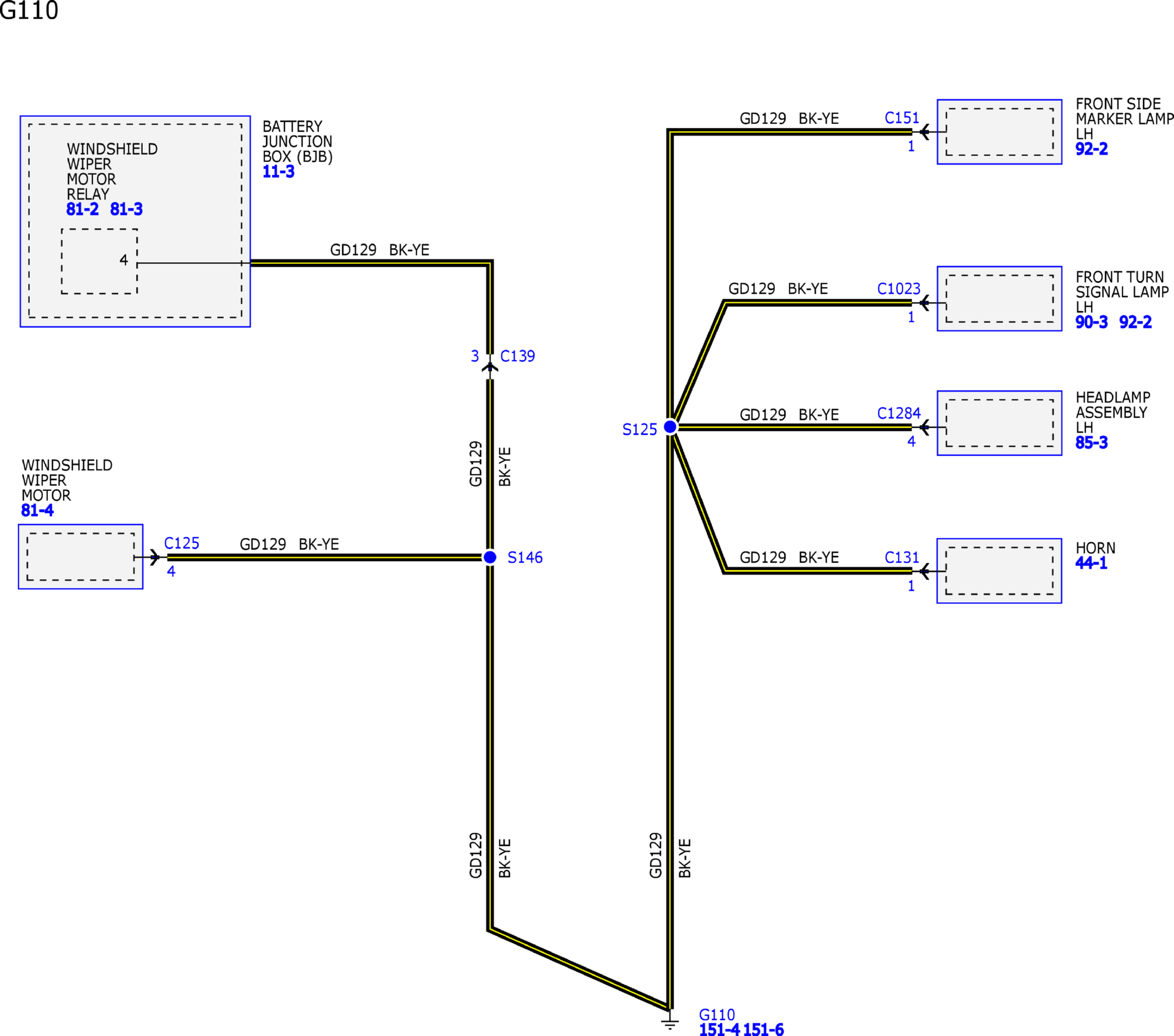

GFDW61445

Courtesy of FORD MOTOR COMPANY

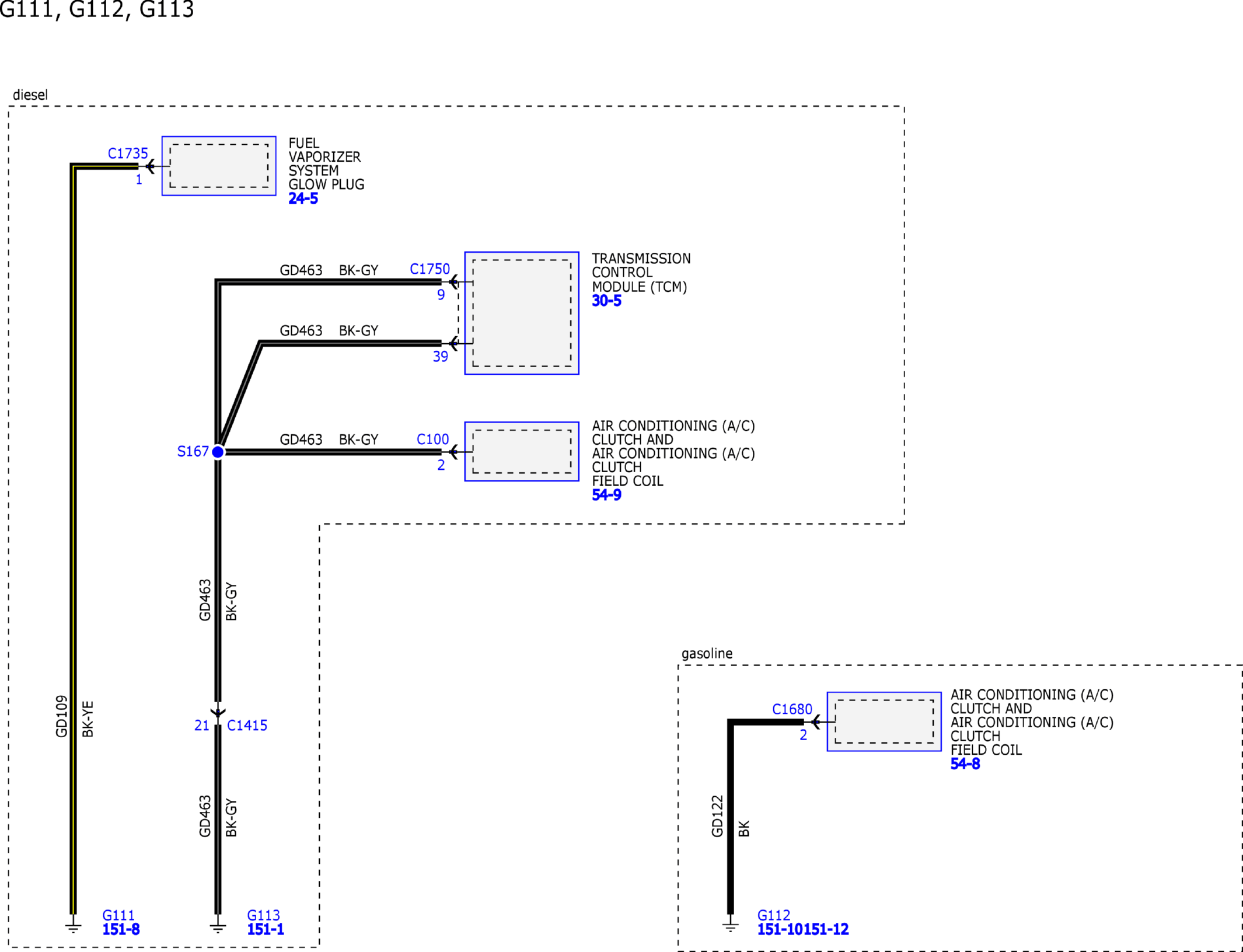

GFDW61446

Courtesy of FORD MOTOR COMPANY

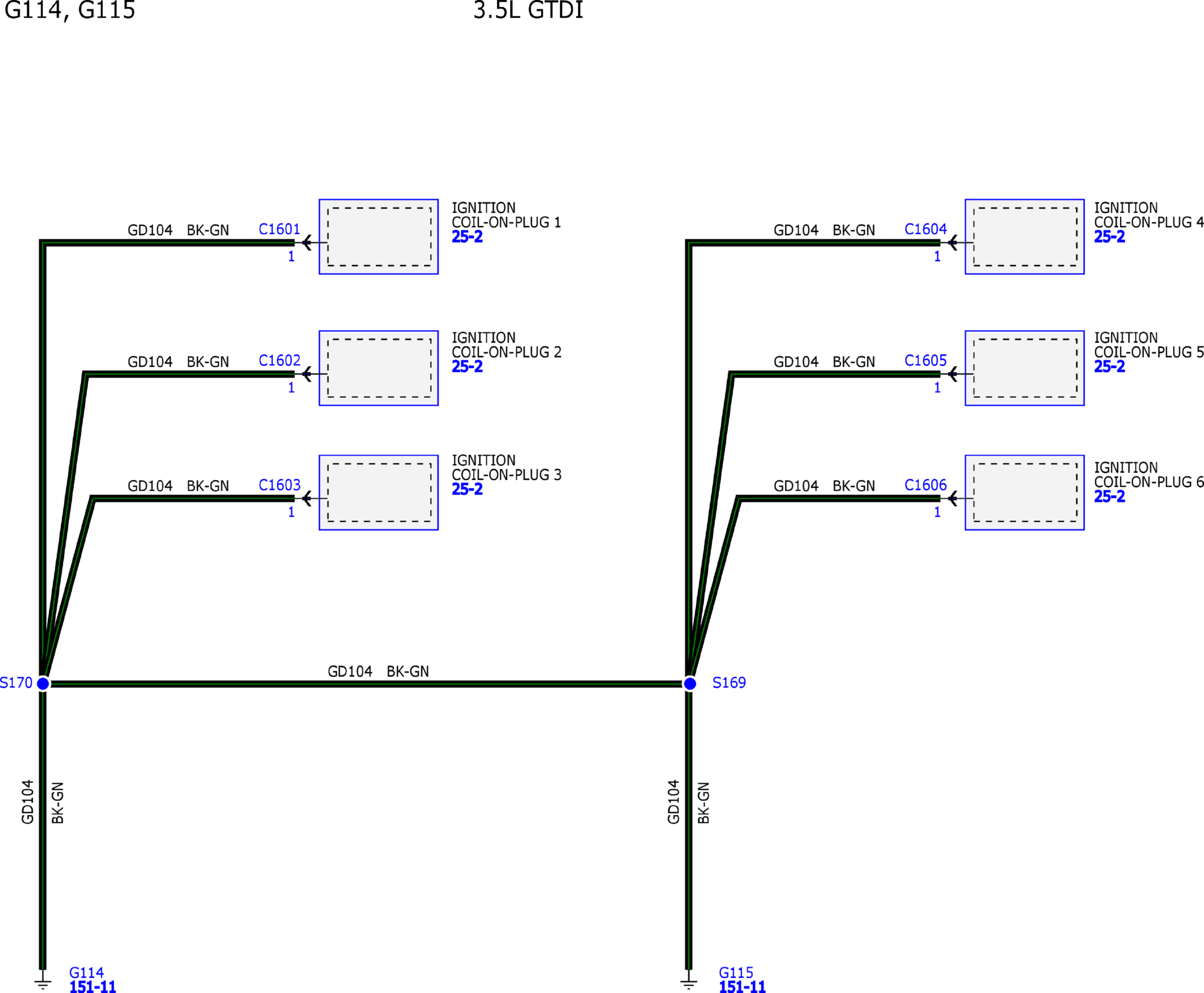

GFDW61447

Courtesy of FORD MOTOR COMPANY

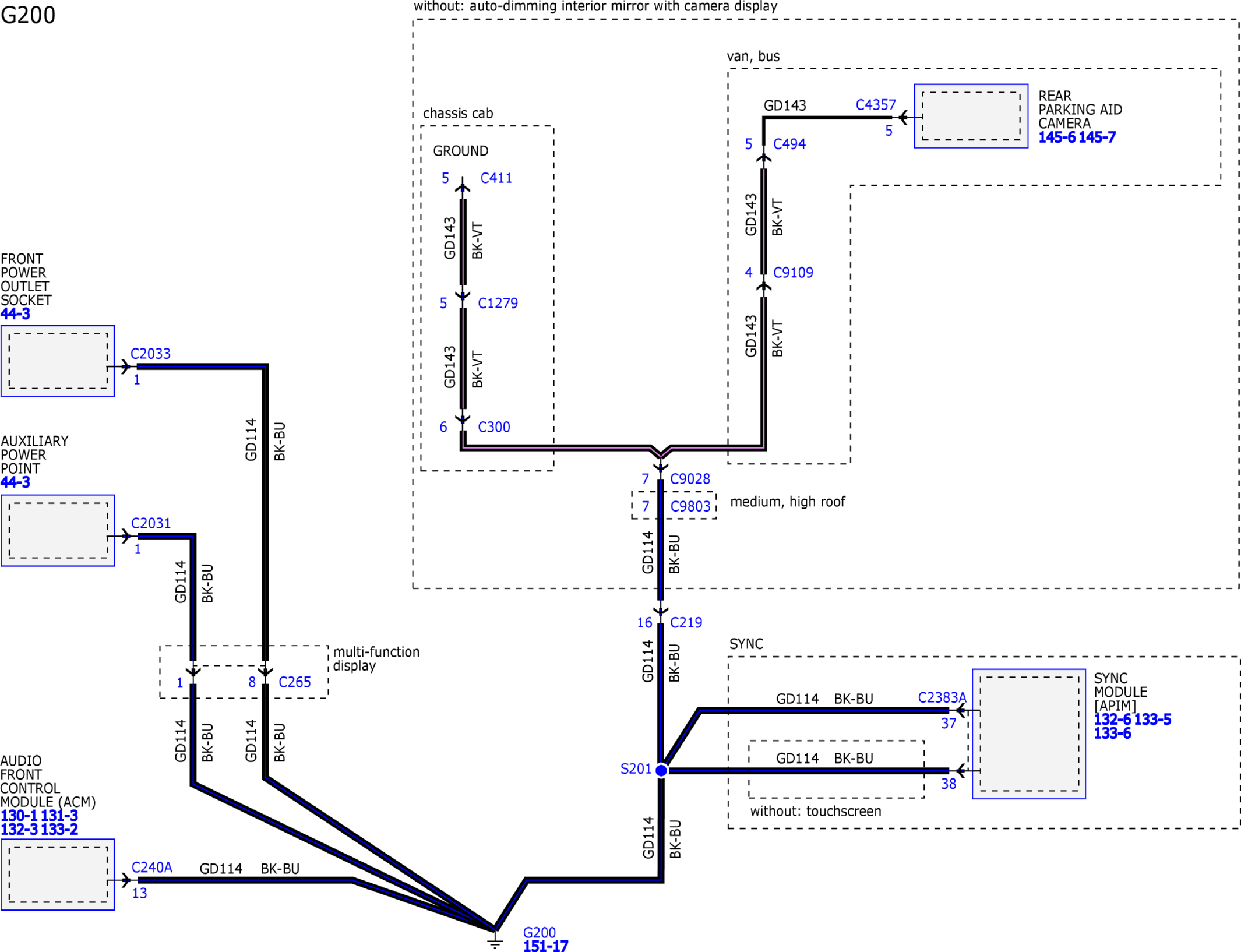

GFDW61448

Courtesy of FORD MOTOR COMPANY

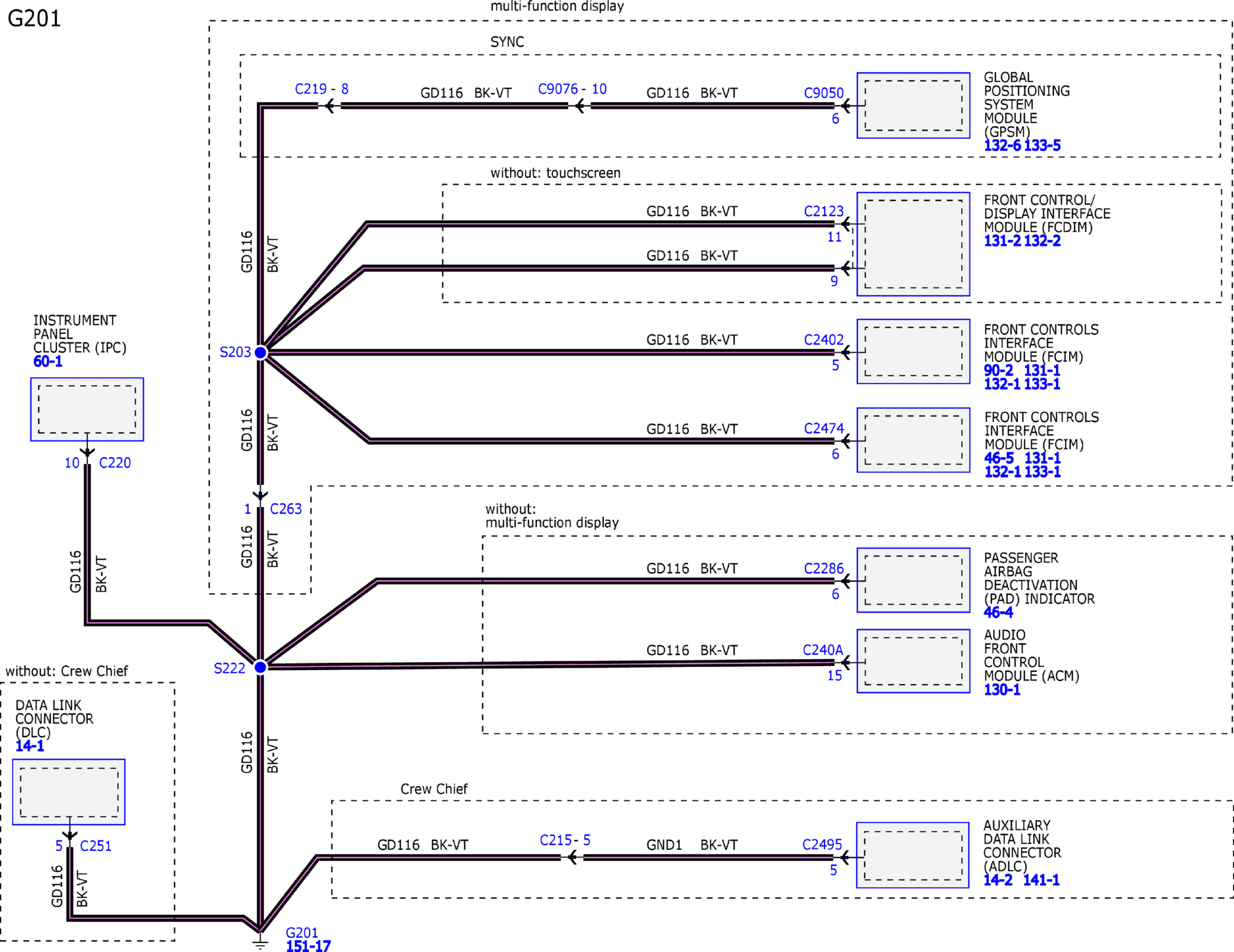

GFDW61449

Courtesy of FORD MOTOR COMPANY

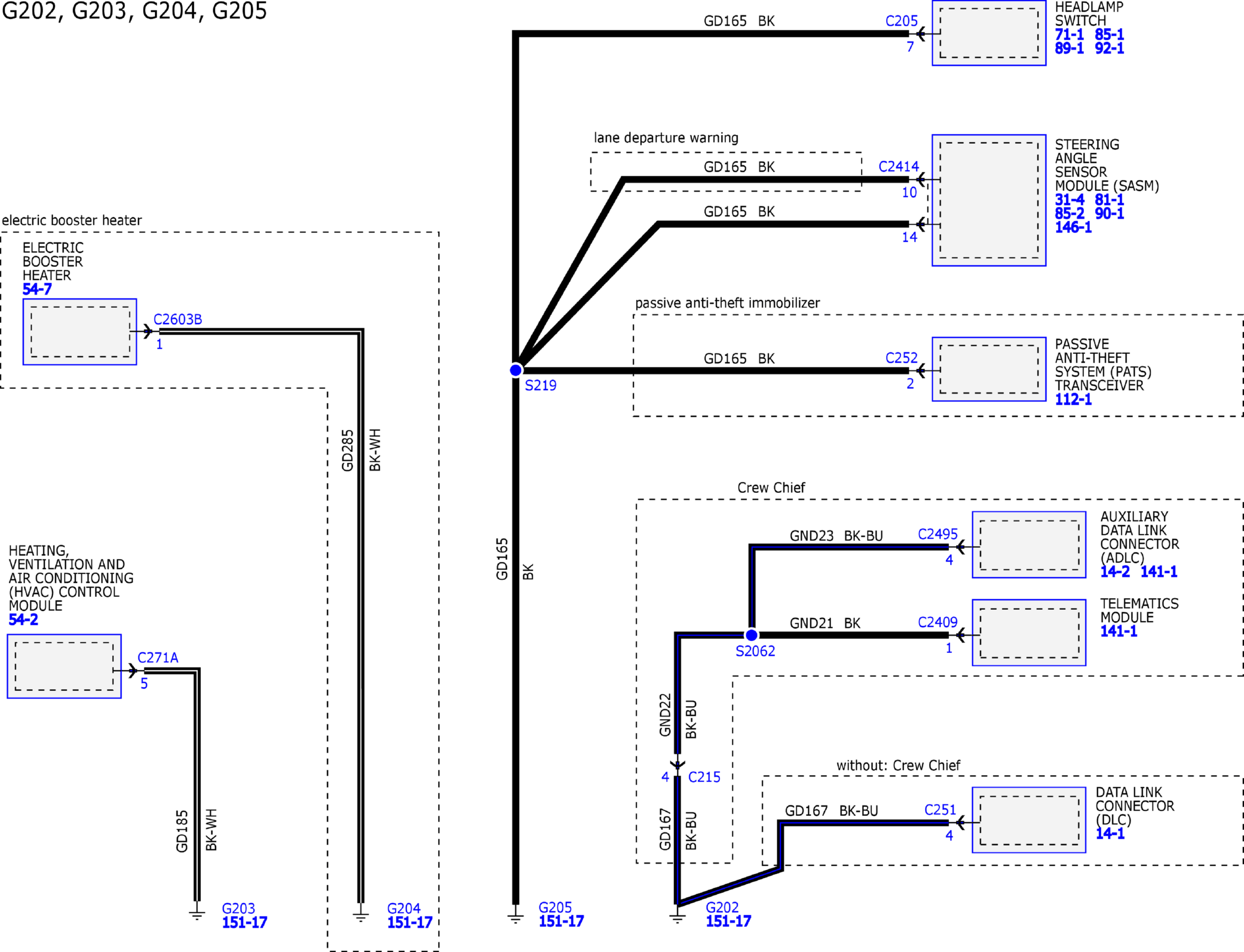

GFDW61450

Courtesy of FORD MOTOR COMPANY
