Section 19 (OEM Wiring Diagrams Component Testing)
›
Component Testing
›
Ignition Switch
Ignition Switch
WARNING:
This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

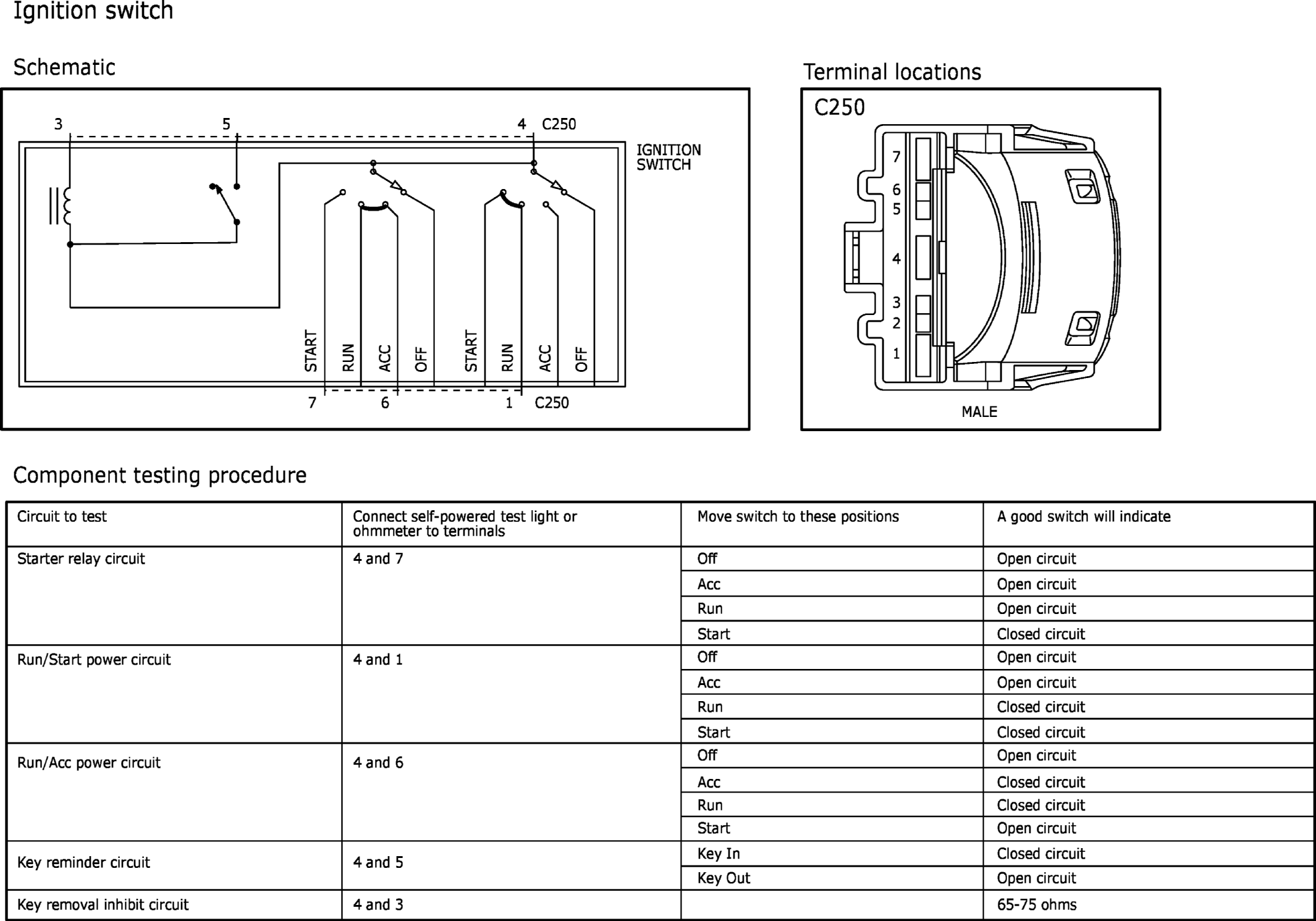

Fig 1: Ignition Switch
Courtesy of FORD MOTOR COMPANY
