Front Bumper: Disassembly

WARNING: This page is about a different car, the 2017 Ford F-550 Super Duty, 2017 Ford F-450 Super Duty, 2017 Ford F-350 Super Duty, and 2017 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The disassembly procedure may contain assembly details.

Remove the front bumper. Refer to: Front Bumper .

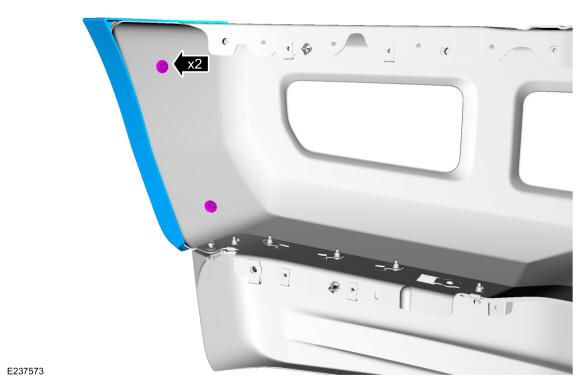

Remove the pin-type retainers and the side air deflectors.

Courtesy of FORD MOTOR COMPANY

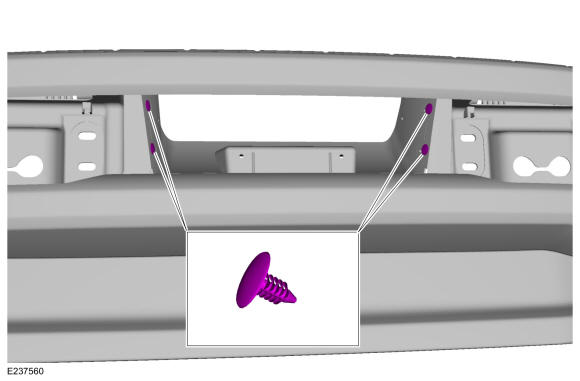

Remove the pin-type retainers from the front of the center support.

Courtesy of FORD MOTOR COMPANY

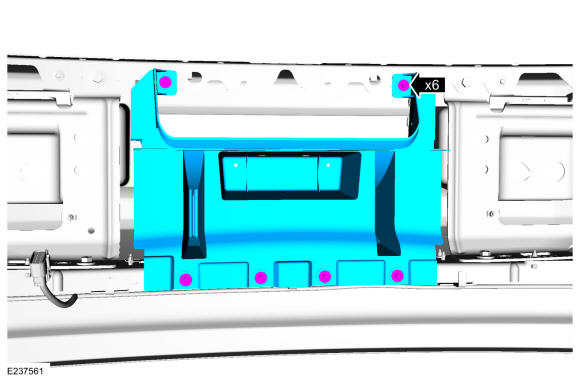

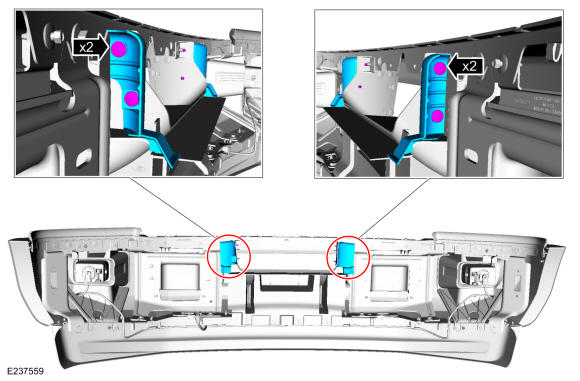

Remove the screws and the center support.

Courtesy of FORD MOTOR COMPANY
NOTE: On vehicles equipped with a CCM.

Separate the wiring harness guides and position the harness aside.

Courtesy of FORD MOTOR COMPANY
NOTE: On vehicles equipped with a CCM.

Remove the screws and the CCM bracket.

Torque

: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

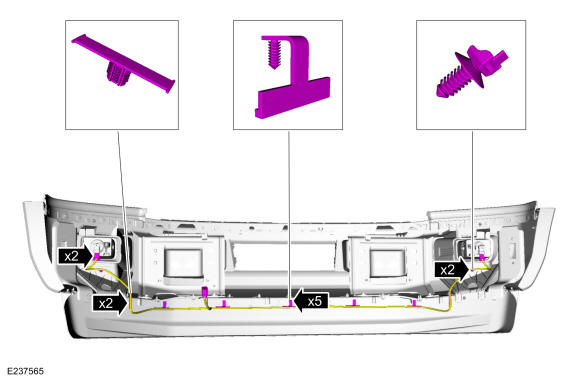

Disconnect the foglamp electrical connectors, separate the wire harness guides and remove the wiring harness.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

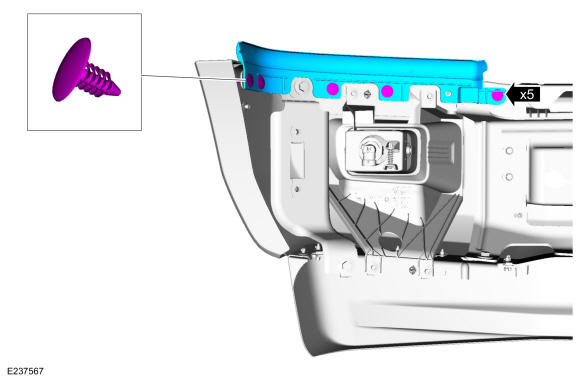

Remove the pin-type retainers and the upper bumper seal.

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

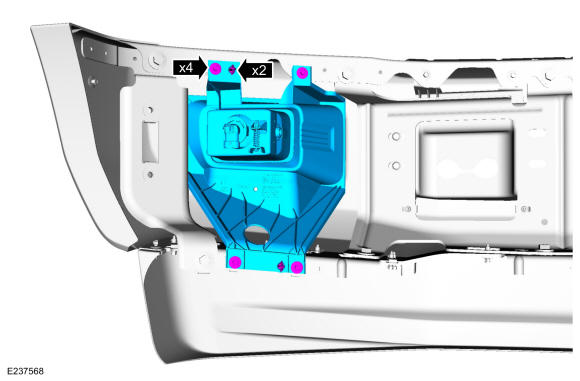

Remove bolts, release the tabs and remove the fog lamp assembly.

Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

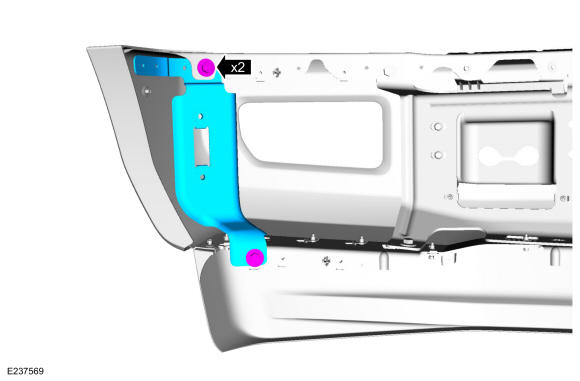

Remove bolts and the outer bracket.

Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

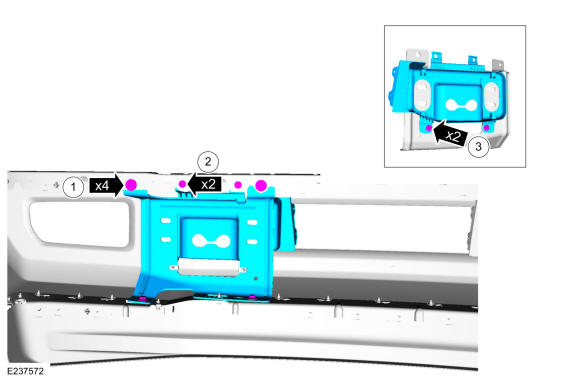

1. Remove the inner bracket bolts.
  Torque

  : 18 lb.ft (25 Nm)
2. Remove the bolts and the inner bumper bracket assembly.
  Torque

  : 42 lb.in (4.8 Nm)
3. NOTE: If required.

  Remove the bolts and separate the inner bumper bracket.

  Torque

  : 42 lb.in (4.8 Nm)
Courtesy of FORD MOTOR COMPANY
NOTE: On both sides.

Remove the screws and the end cap.

Courtesy of FORD MOTOR COMPANY

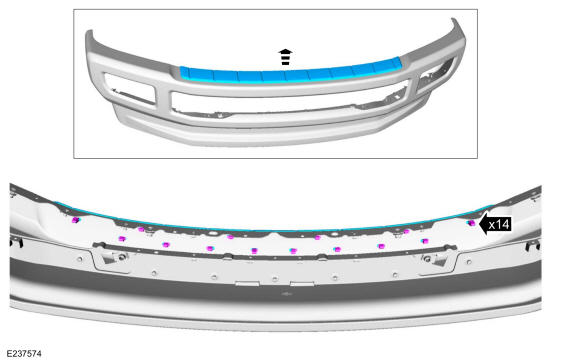

Release the tabs and remove the front step plate.

Courtesy of FORD MOTOR COMPANY

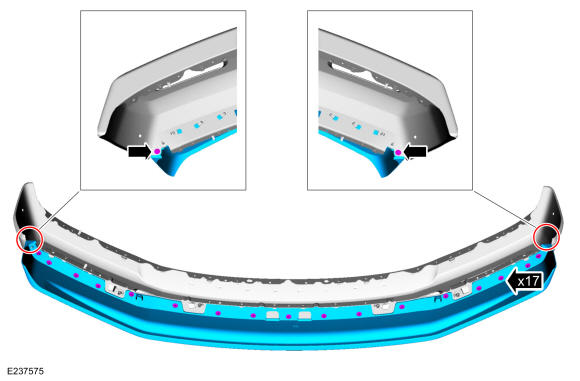

Remove the screws and the front bumper air deflector.

Courtesy of FORD MOTOR COMPANY
