Clockspring Adjustment

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Adhesive Tape

Adjustment

NOTE: If there is a break between installing the clockspring and steering wheel rotation sensor assembly and installing the steering wheel, the centralizing of the clockspring must be repeated.

NOTE: If the centralization of the clockspring is in doubt, the centralizing of the clockspring must be repeated.

1.
1. 1.

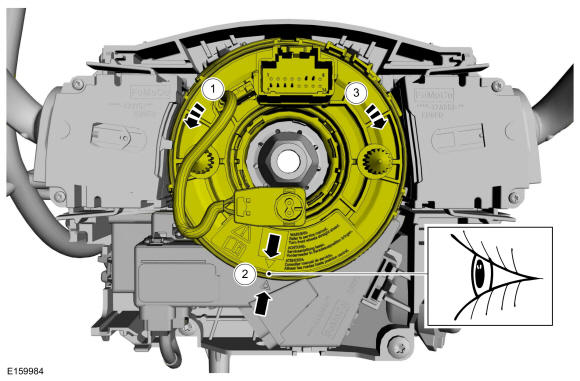

  Turn the clockspring rotor in a counterclockwise direction until a resistance is felt.
1. 2.

  Turn the clockspring rotor in a clockwise direction, until the arrow marked on the clockspring rotor aligns with the raised 'V' section on the clockspring body.
1. 3.

  Turn the clockspring rotor in a clockwise direction three turns.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Make sure that the clockspring rotor does not rotate.

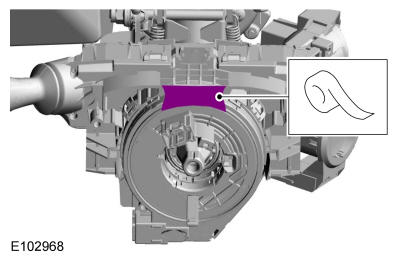

Use the General Equipment: Adhesive Tape

Courtesy of FORD MOTOR COMPANY
