Climate Control System - Component Location
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

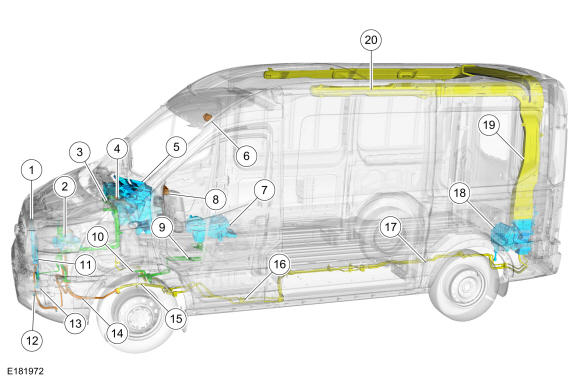

NOTE:
Shown with Rear Climate Control, other vehicles similar.
| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | A/C Compressor |
| 3 | Thermostatic Expansion Valve Manifold and Tube Assembly - Vehicles With: Rear Climate Control |
| 4 | Thermostatic Expansion Valve |
| 5 | Climate Control Housing |
| 6 | Rear HVAC Module |
| 7 | Rear Heater Core Housing |
| 8 | HVAC Module |
| 9 | Rear Heater Core Inlet and Outlet Line |
| 10 | Rear Evaporator Outlet Line |
| 11 | Receiver Drier Element |
| 12 | A/C Pressure Transducer |
| 13 | Ambient Air Temperature Sensor |
| 14 | A/C Manifold and Tube Assembly - Vehicles With: Rear Climate Control |
| 15 | Rear Evaporator Inlet Line |
| 16 | Rear Evaporator Front Outlet and Inlet Line |
| 17 | Rear Evaporator Rear Outlet and Inlet Line |
| 18 | Rear Evaporator Housing |
| 19 | Rear A/C Duct |
| 20 | Rear A/C Roof Line Duct |

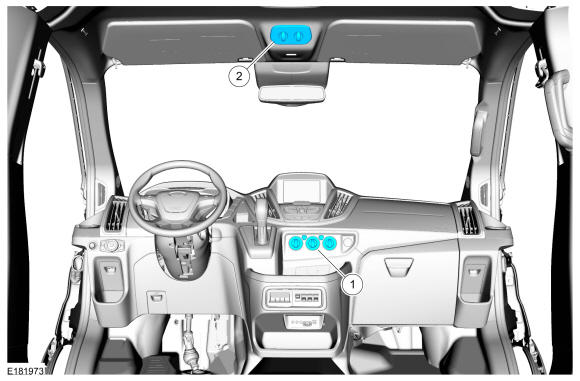

| Item | Description |
|---|---|
| 1 | HVAC Module |
| 2 | Rear HVAC Module |

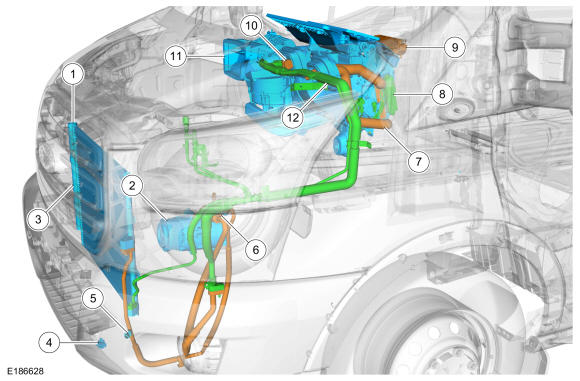

Diesel Engines Without Rear Climate Control
| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | A/C Compressor |
| 3 | Receiver Drier Element |
| 4 | Ambient Air Temperature Sensor |
| 5 | A/C Pressure Transducer |
| 6 | A/C Manifold and Tube Assembly |
| 7 | Heater Core |
| 8 | Electric Booster Heater |
| 9 | HVAC Module |
| 10 | Thermostatic Expansion Valve |
| 11 | Climate Control Housing |
| 12 | Thermostatic Expansion Valve Manifold and Tube Assembly |

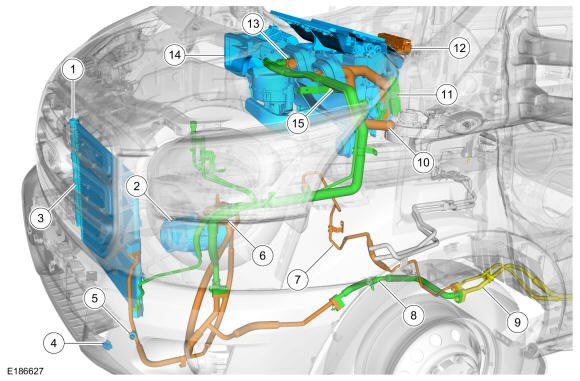

Diesel Engines With Rear Climate Control
| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | A/C Compressor |
| 3 | Receiver Drier Element |
| 4 | Ambient Air Temperature Sensor |
| 5 | A/C Pressure Transducer |
| 6 | A/C Manifold and Tube Assembly |
| 7 | Rear Evaporator Outlet Line |
| 8 | Rear Evaporator Inlet Line |
| 9 | Rear Evaporator Front Outlet and Inlet Line |
| 10 | Heater Core |
| 11 | Electric Booster Heater |
| 12 | HVAC Module |
| 13 | Thermostatic Expansion Valve |
| 14 | Climate Control Housing |
| 15 | Thermostatic Expansion Valve Manifold and Tube Assembly |

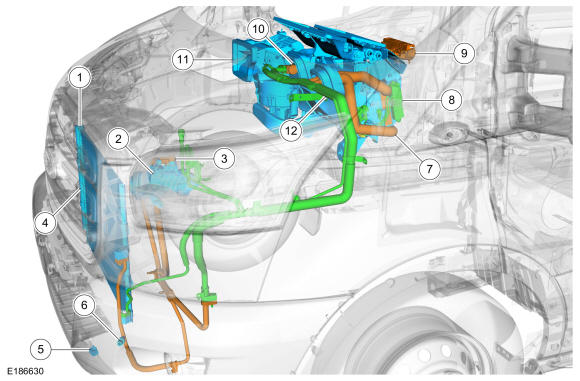

Gasoline Engines Without Rear Climate Control
| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | A/C Compressor |
| 3 | A/C Manifold and Tube Assembly |
| 4 | Receiver Drier Element |
| 5 | Ambient Air Temperature Sensor |
| 6 | A/C Pressure Transducer |
| 7 | Heater Core |
| 8 | Electric Booster Heater |
| 9 | HVAC Module |
| 10 | Thermostatic Expansion Valve |
| 11 | Climate Control Housing |
| 12 | Thermostatic Expansion Valve Manifold and Tube Assembly |

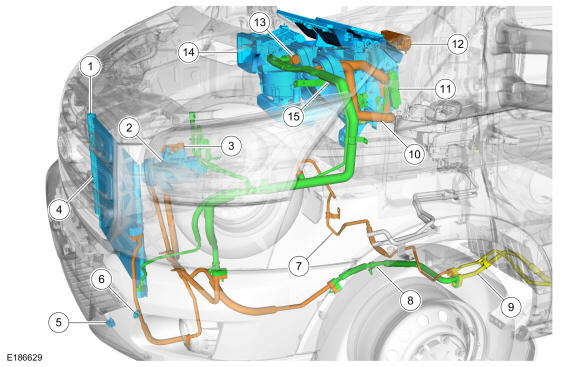

Gasoline Engines With Rear Climate Control
| Item | Description |
|---|---|
| 1 | Condenser |
| 2 | A/C Compressor |
| 3 | A/C Manifold and Tube Assembly |
| 4 | Receiver Drier Element |
| 5 | Ambient Air Temperature Sensor |
| 6 | A/C Pressure Transducer |
| 7 | Rear Evaporator Outlet Line |
| 8 | Rear Evaporator Inlet Line |
| 9 | Rear Evaporator Front Outlet and Inlet Line |
| 10 | Heater Core |
| 11 | Electric Booster Heater |
| 12 | HVAC Module |
| 13 | Thermostatic Expansion Valve |
| 14 | Climate Control Housing |
| 15 | Thermostatic Expansion Valve Manifold and Tube Assembly |

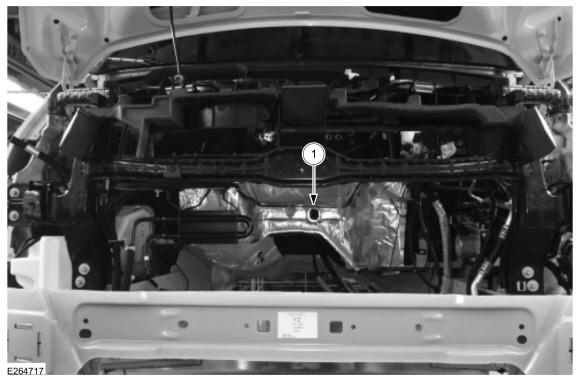

Climate Control Housing Condensation Drain
| Item | Description |
|---|---|
| 1 | Climate control housing condensation drain |
