OEM Electrical Wiring Diagram Introduction: Introduction

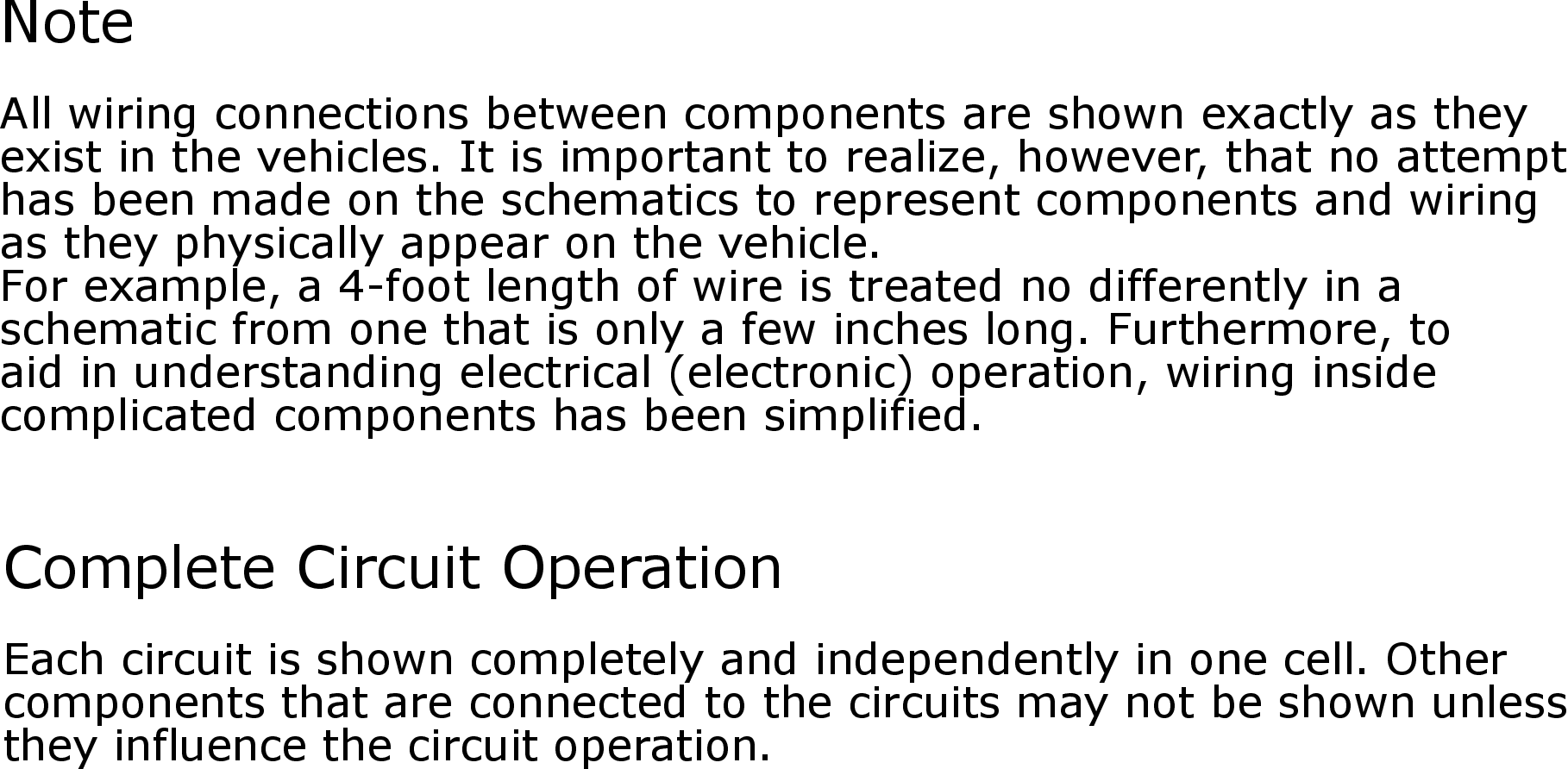

GFDW28875Courtesy of FORD MOTOR COMPANY

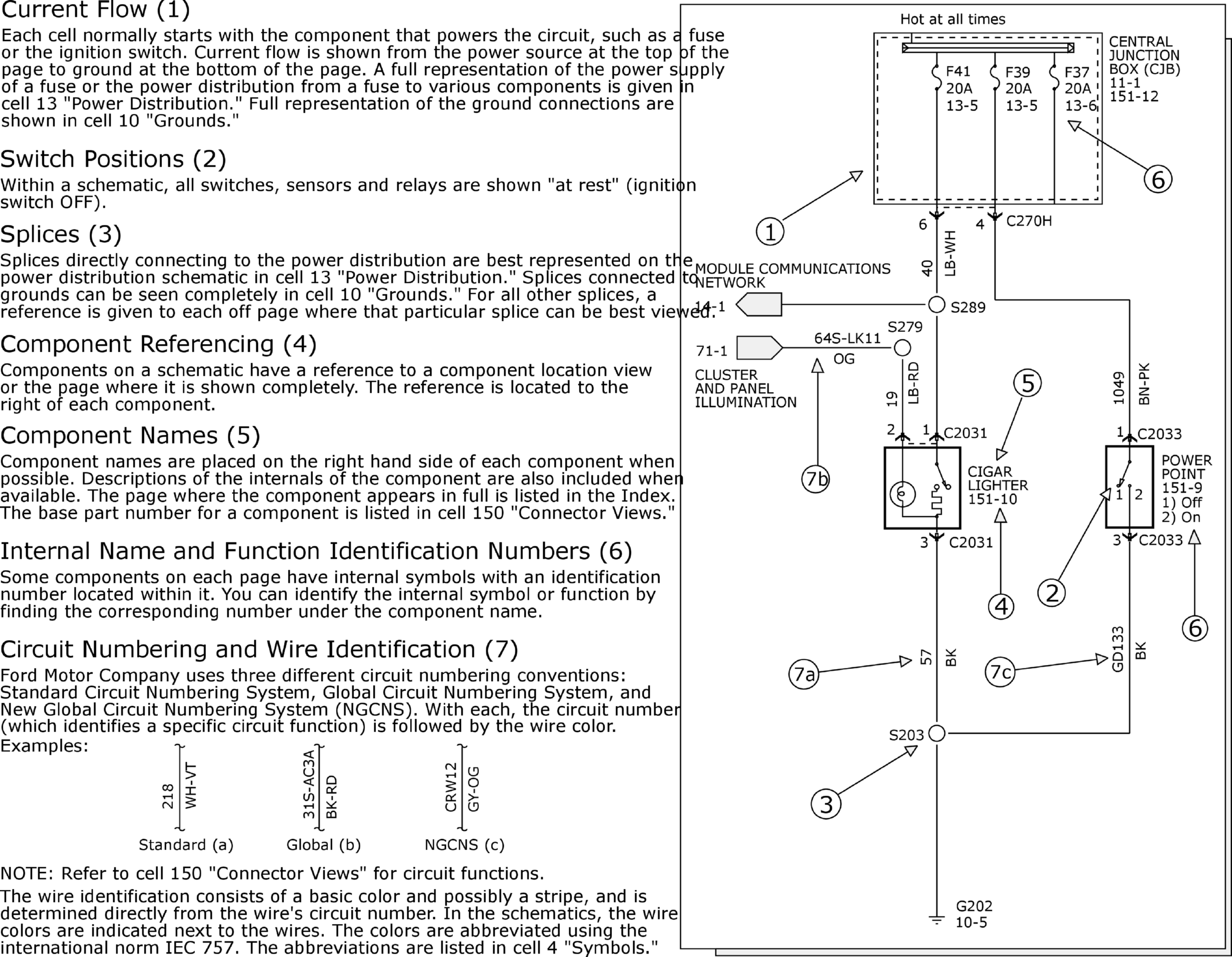

GFDW28876Courtesy of FORD MOTOR COMPANY

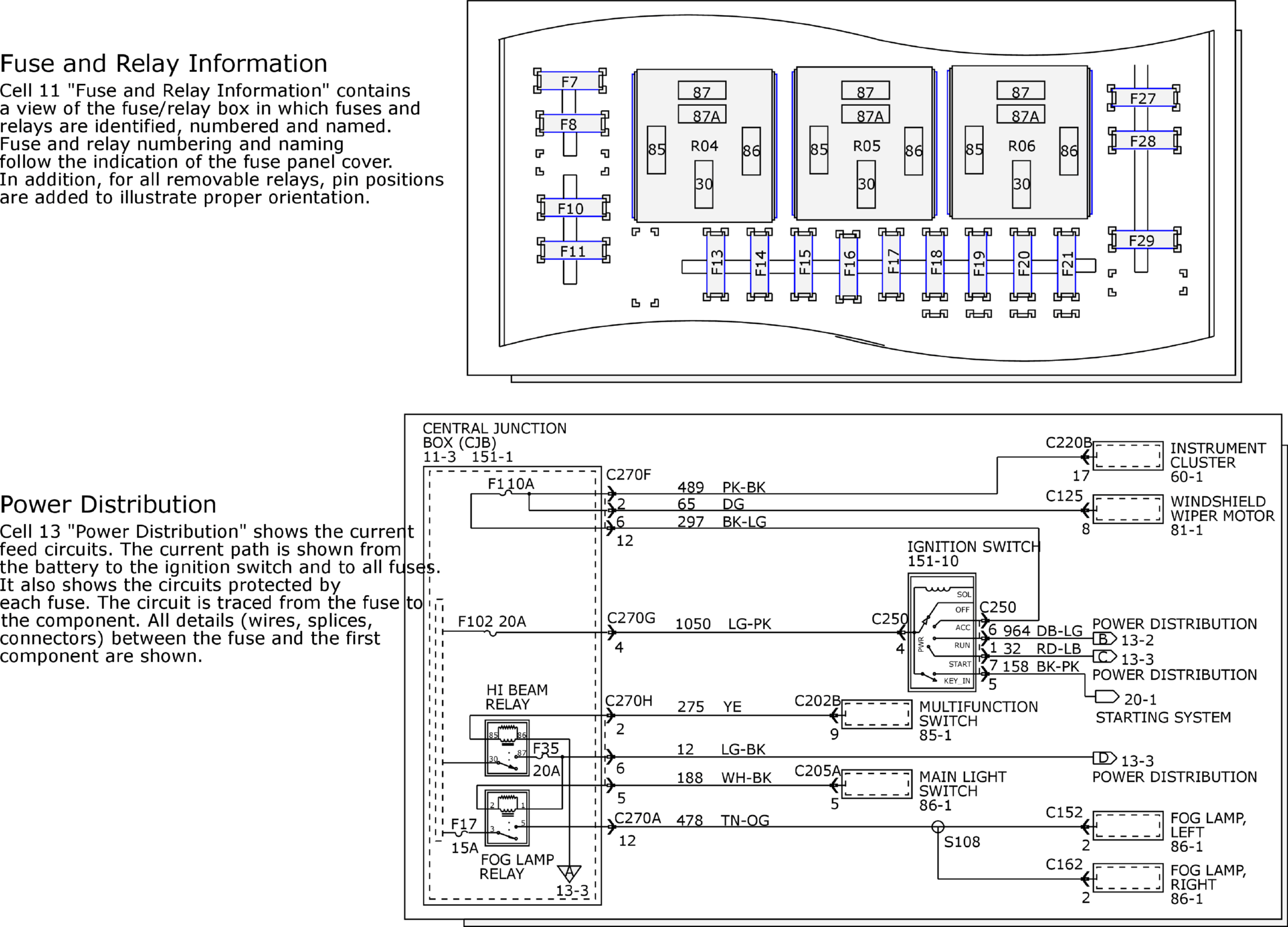

GFDW28877Courtesy of FORD MOTOR COMPANY

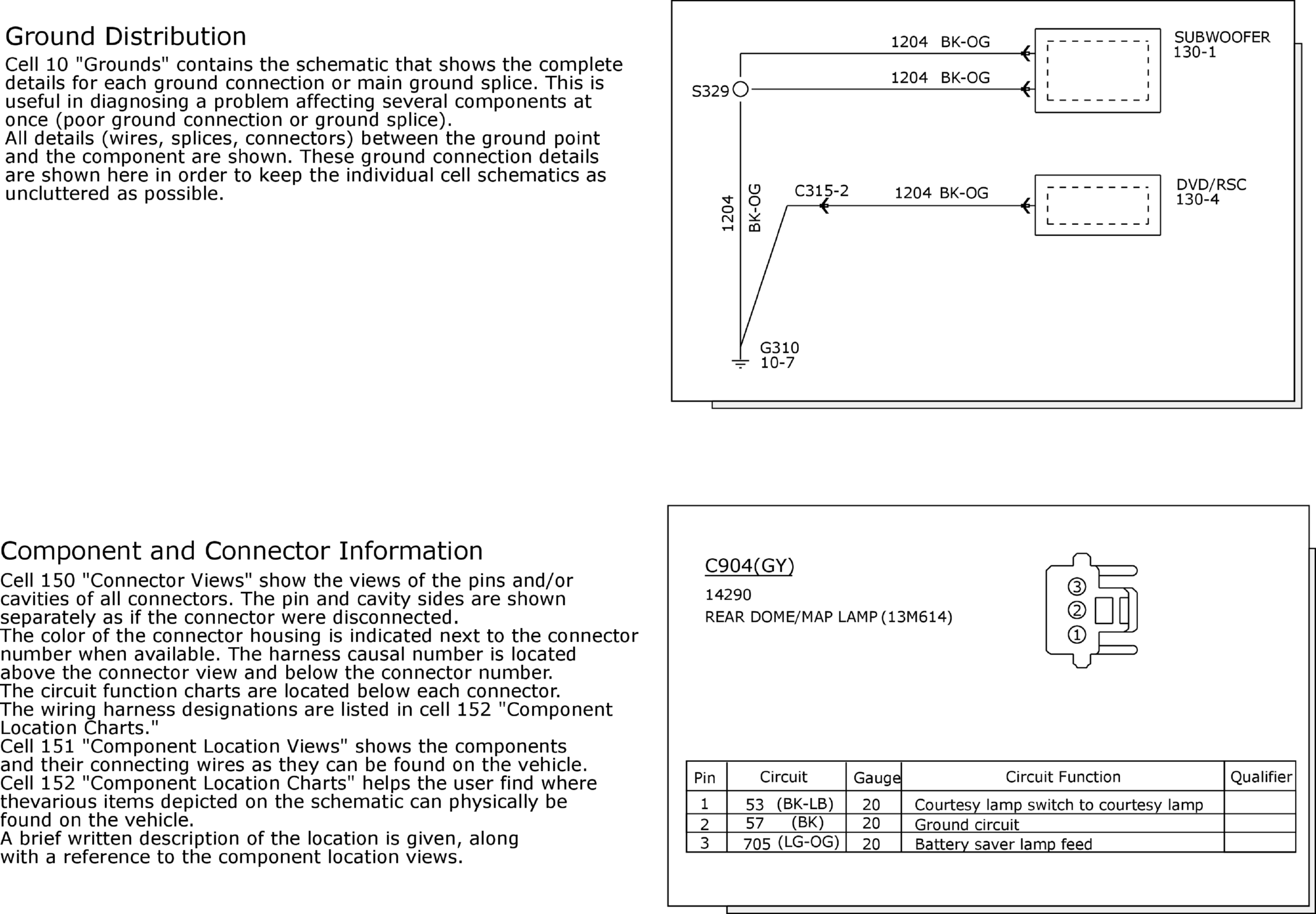

GFDW28878Courtesy of FORD MOTOR COMPANY

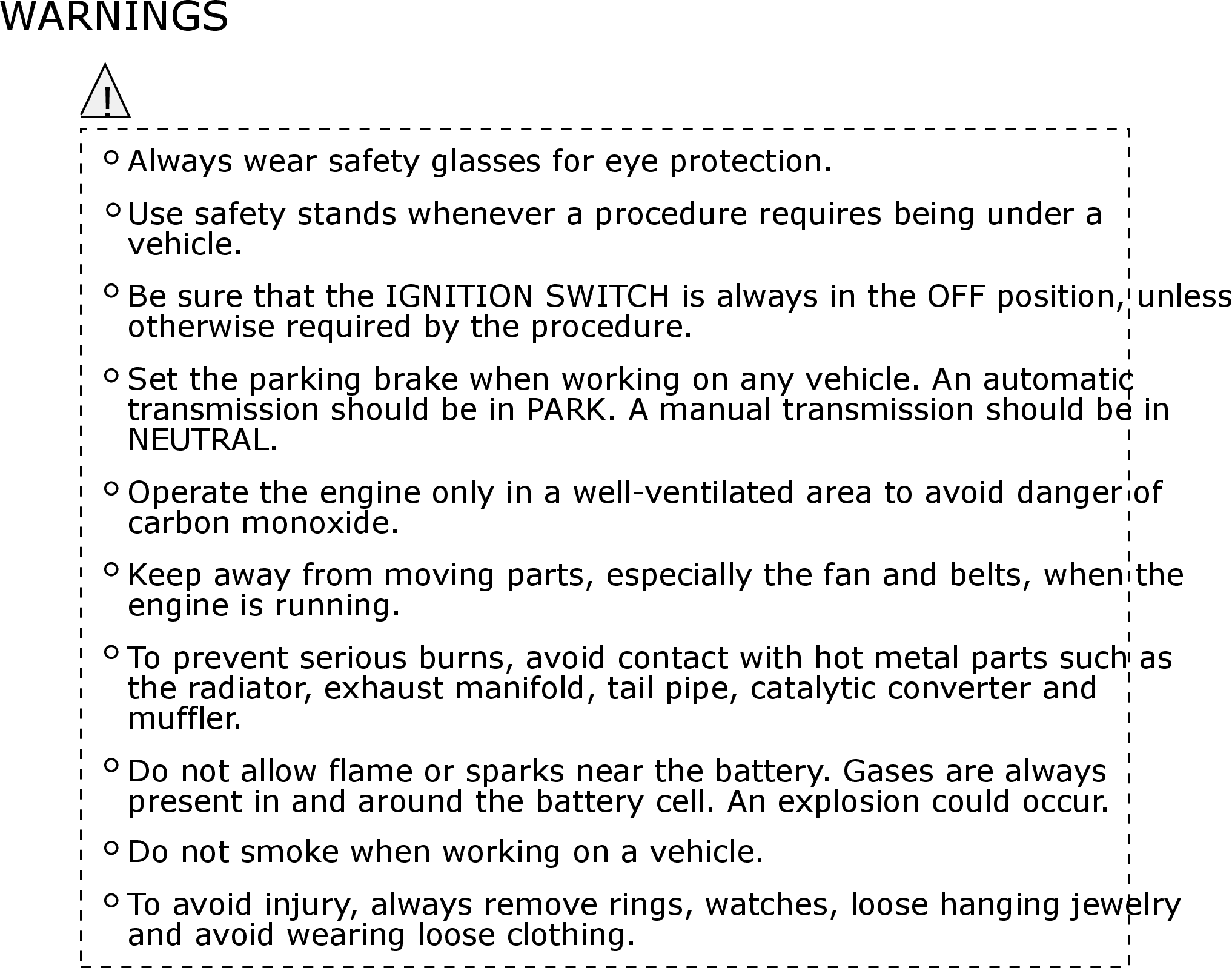

GFDW28879Courtesy of FORD MOTOR COMPANY
