Driver Door Lock Control Switch

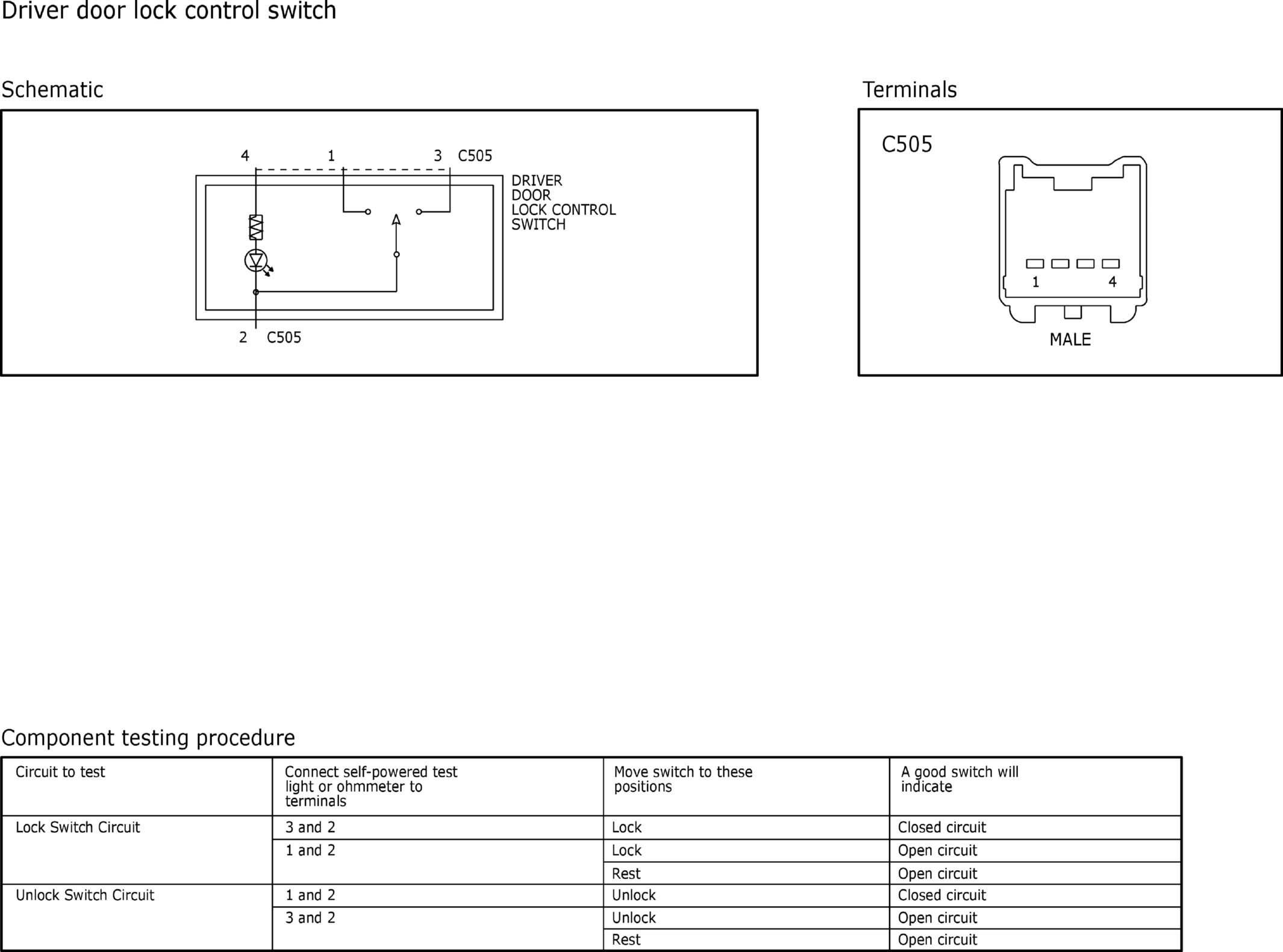

Fig 1: Driver Door Lock Control Switch
GFDW29229Courtesy of FORD MOTOR COMPANY
