Driver Door Window Control Switch

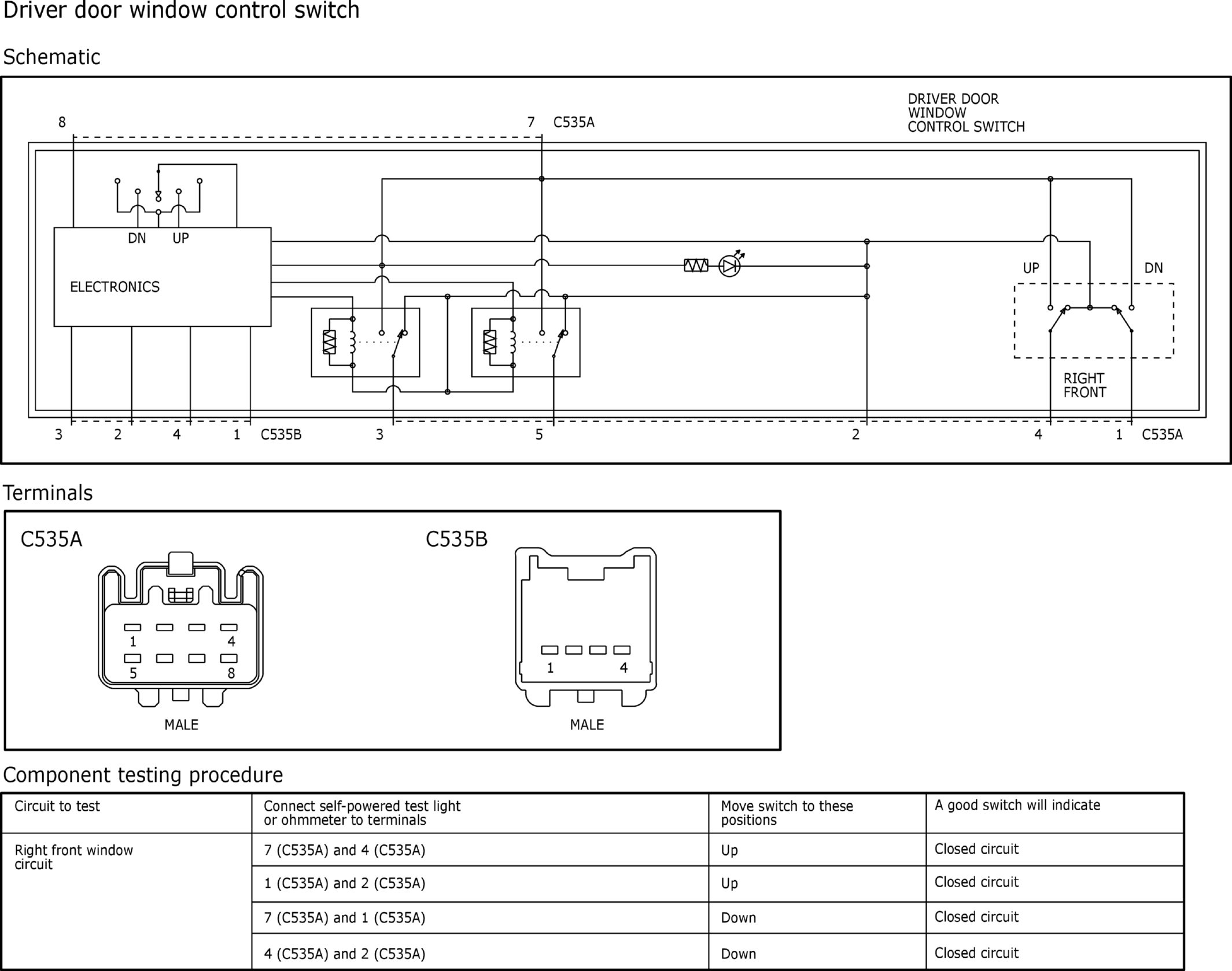

Fig 1: Driver Door Window Control Switch
GFDW29227Courtesy of FORD MOTOR COMPANY
