Front Seat Control Switch LH

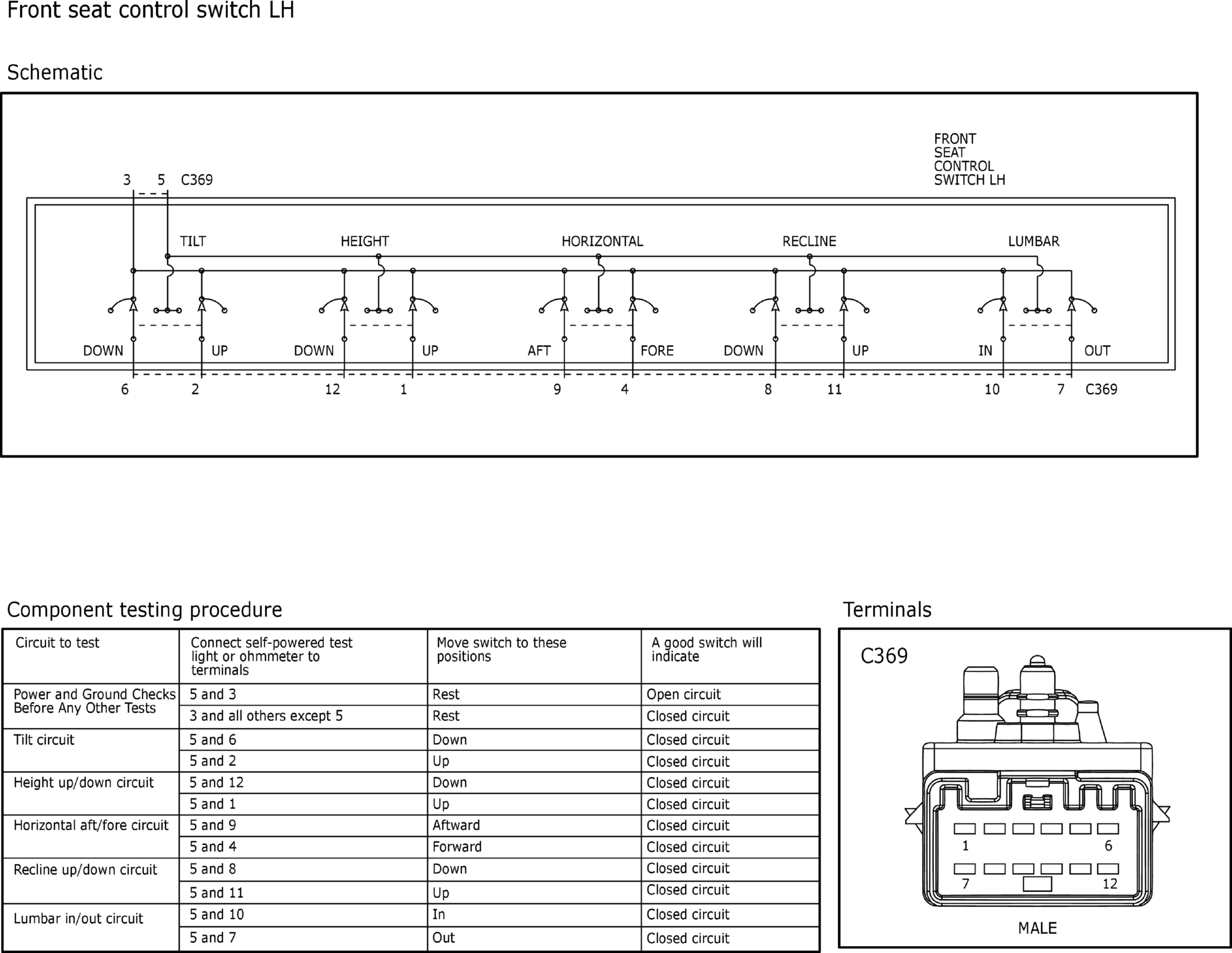

Fig 1: Front Seat Control Switch LH
GFDW29231Courtesy of FORD MOTOR COMPANY
