Front Seat Control Switch RH

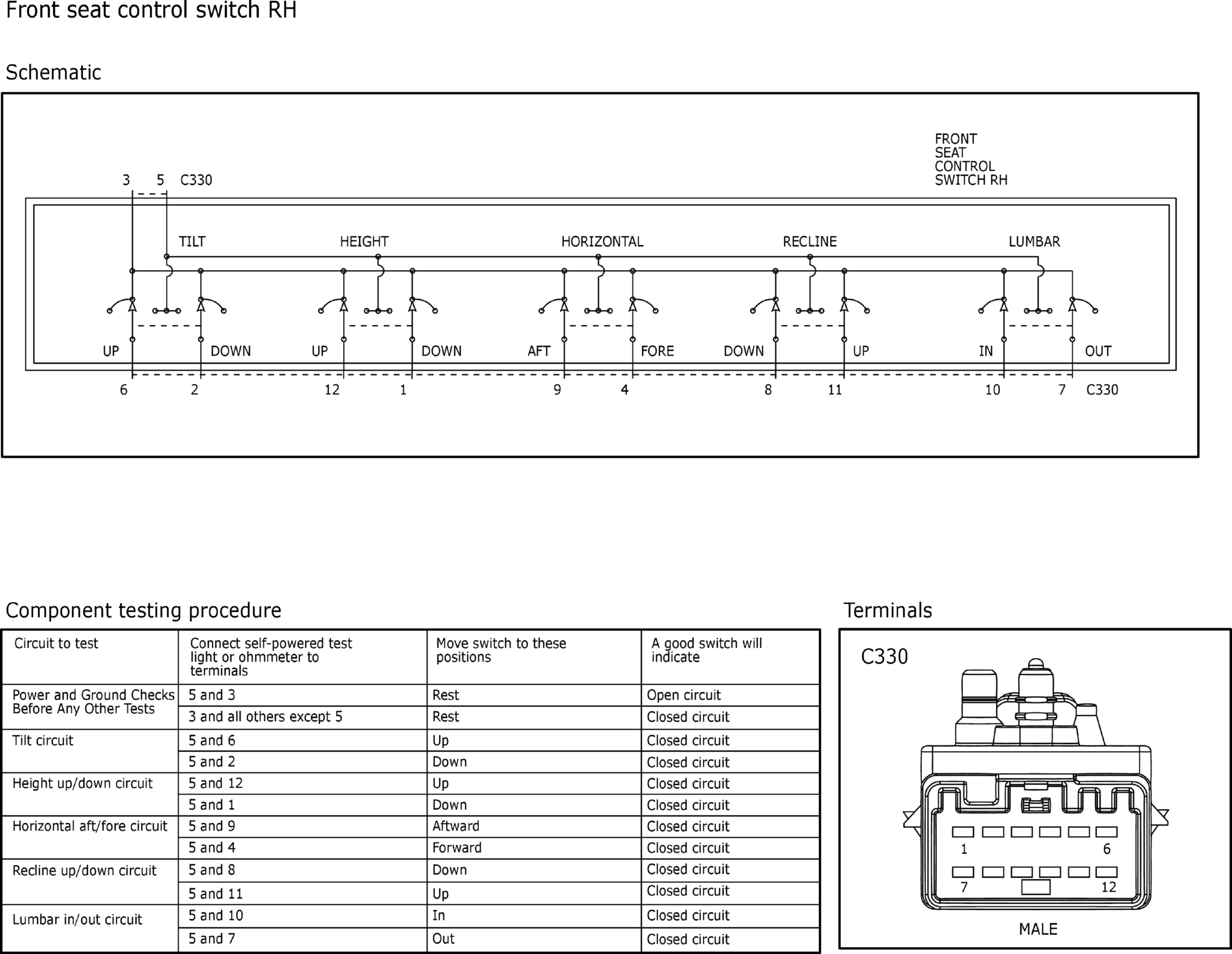

Fig 1: Front Seat Control Switch RH
GFDW29232Courtesy of FORD MOTOR COMPANY
