Passenger Door Lock Control Switch
Passenger Door Lock Control Switch

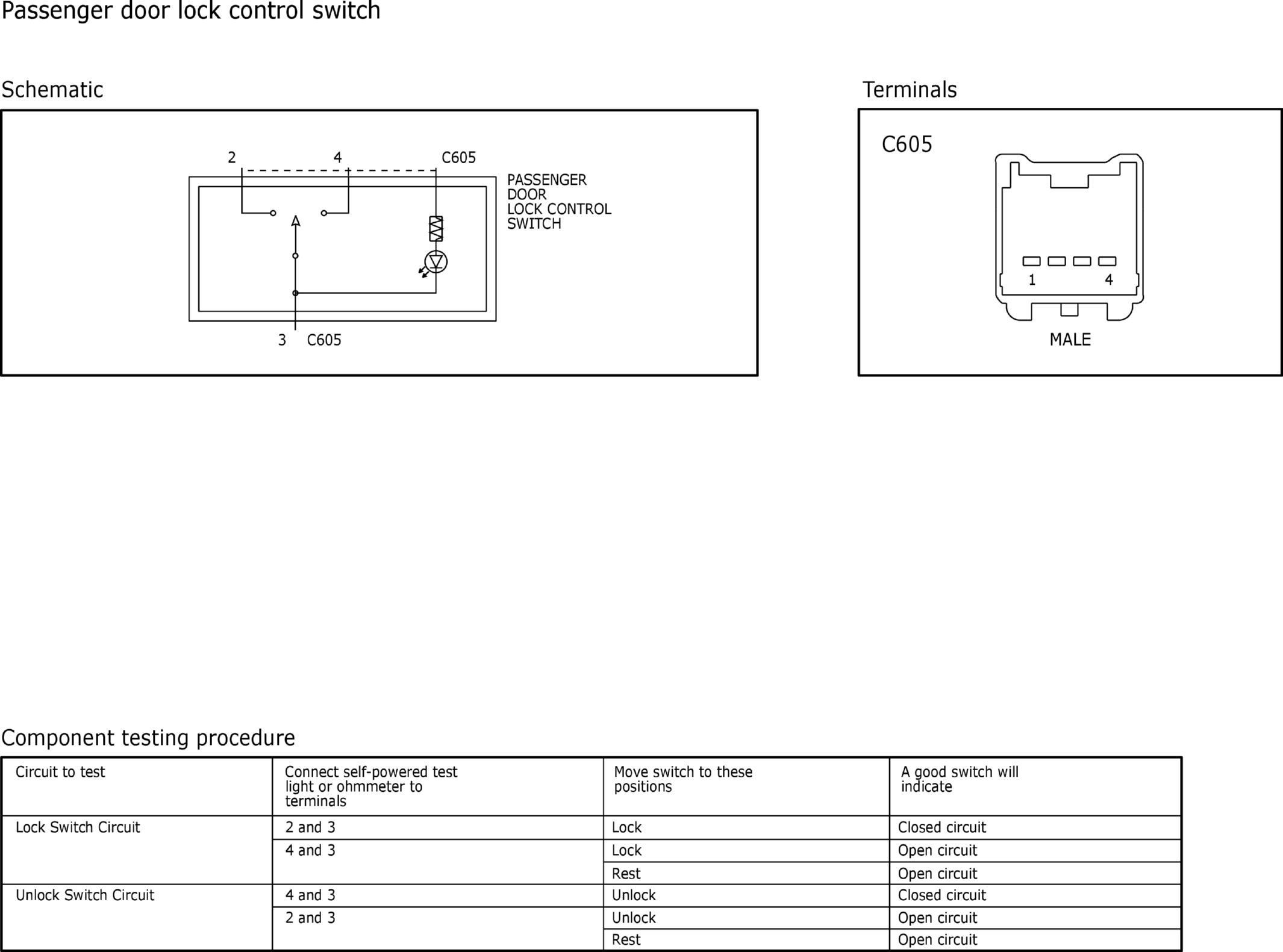

Fig 1: Passenger Door Lock Control Switch
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
