Passenger Door Window Control Switch

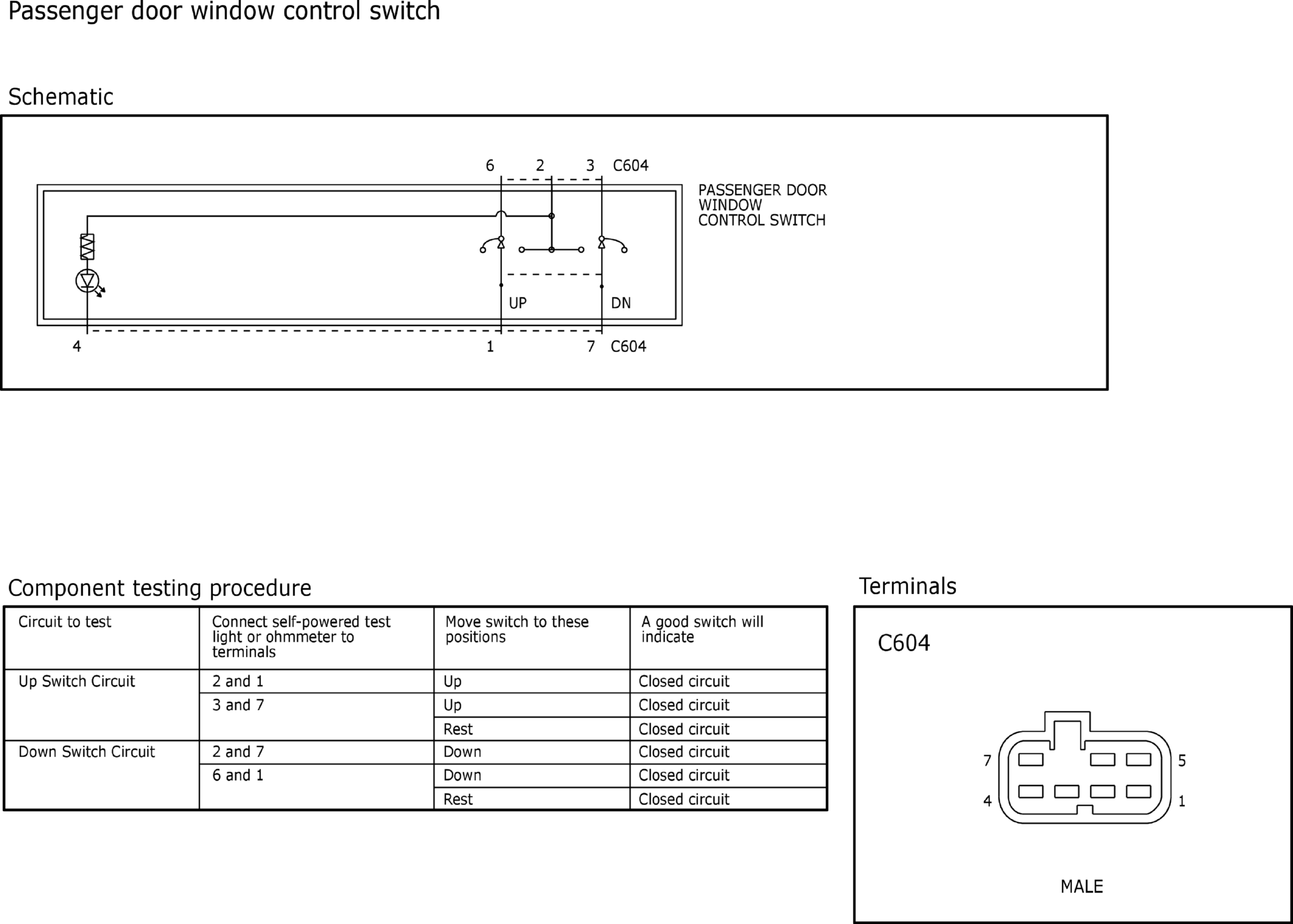

Fig 1: Passenger Door Window Control Switch

GFDW29228

Courtesy of FORD MOTOR COMPANY
