Power Steering System Purging

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	211-265 Evacuation Cap, Power Steering TKIT-1999M2-FLM
Courtesy of FORD MOTOR COMPANY	416-D002 Vacuum Pump Kit

Materials

Name	Specification
Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC	MERCON ® LVWSS-M2C938-A

Bleeding

• 1.


  NOTE: If the air is not purged from the power steering system correctly, premature power steering pump failure may result. The condition may occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.

  Remove the power steering reservoir cap. Check the fluid.

• 2.

  Raise the front wheels off the floor. Refer to: Jacking and Lifting - Overview .

• 3.

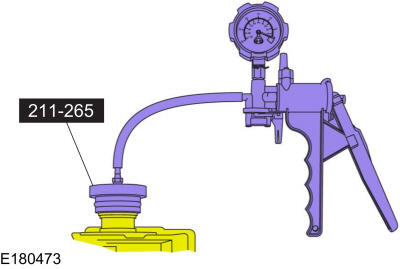

  Tightly insert the Power Steering Evacuation Cap into the reservoir and connect the Vacuum Pump Kit. Use Special Service Tool: 211-265 Evacuation Cap, Power Steering., 416-D002 Vacuum Pump Kit.

Courtesy of FORD MOTOR COMPANY

• 4.

  Start the engine.

• 5.


  NOTE: If the Vacuum Pump Kit does not maintain vacuum, check the power steering system for leaks before proceeding. For additional information, refer to Power Steering Fluid Leak Test .

  Using the Vacuum Pump Kit, apply vacuum and maintain the maximum vacuum of 68-85 kPa (20-25 in-Hg). Use Special Service Tool: 416-D002 Vacuum Pump Kit.

• 6.


  NOTE: Do not hold the steering wheel against the stops for an extended amount of time. Damage to the power steering pump may occur.

  Cycle the steering wheel fully from stop-to-stop 10 times.

• 7.

  Stop the engine.

• 8.

  Release the vacuum and remove the Vacuum Pump Kit and the Power Steering Evacuation Cap.

• 9.


  NOTE: Do not overfill the reservoir.

  Fill the reservoir as needed with the specified fluid.

  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

• 10.

  Start the engine.

• 11.

  Install the Power Steering Evacuation Cap and the Vacuum Pump Kit. Apply and maintain the maximum vacuum of 68-85 kPa (20-25 in-Hg). Use Special Service Tool: 211-265 Evacuation Cap, Power Steering., 416-D002 Vacuum Pump Kit.

Courtesy of FORD MOTOR COMPANY

• 12.


  NOTE: Do not hold the steering wheel against the stops for an extended amount of time. Damage to the power steering pump may occur.

  Cycle the steering wheel fully from stop-to-stop 10 times.

• 13.

  Stop the engine, release the vacuum and remove the Vacuum Pump Kit and the Power Steering Evacuation Cap.

• 14.


  NOTE: Do not overfill the reservoir.

  Fill the reservoir as needed with the specified fluid and install the reservoir cap.

  Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

• 15.

  Visually inspect the power steering system for leaks.
