Tie Rod End: Removal

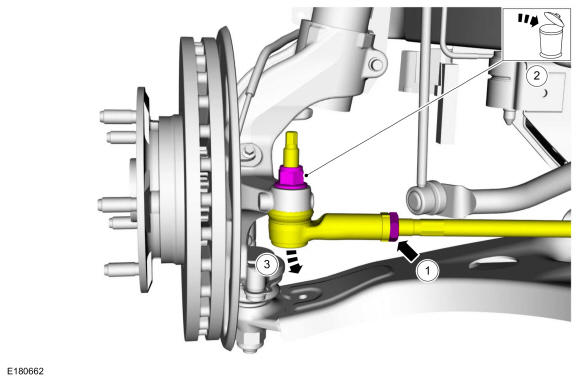

• 1.

  Loosen the tie rod end jam nut.

  Torque: 59 lb.ft (80 Nm)

• 2.

  Remove and discard the outer tie rod end nut.

  Torque: 59 lb.ft (80 Nm)

• 3.


  NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
  NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

  Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

Remove the tie rod end.
