Steering Wheel: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Driver Airbag .

2.

NOTE: Make sure that the steering column lock is engaged.

NOTE: Make sure that the road wheels are in the straight ahead position.

GFD73597

Courtesy of FORD MOTOR COMPANY

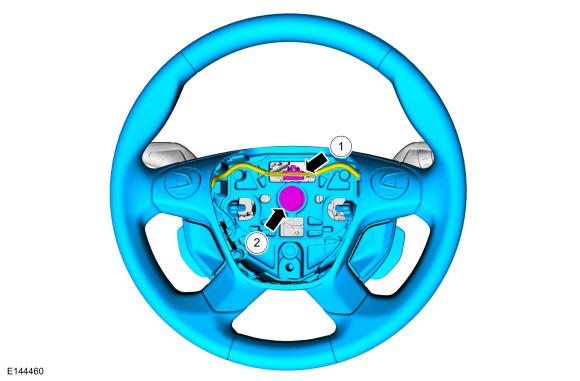

3.

Torque
: 35 lb.ft (48 Nm)

GFD73601

Courtesy of FORD MOTOR COMPANY

4.

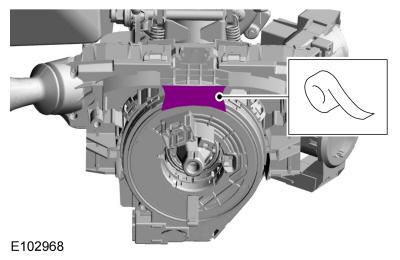

NOTE: Make sure that the clockspring rotor does not rotate.

GFD73602

Courtesy of FORD MOTOR COMPANY
