Ride Height Measurement

Check

NOTE: Ride Height Measurement - Front

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1.

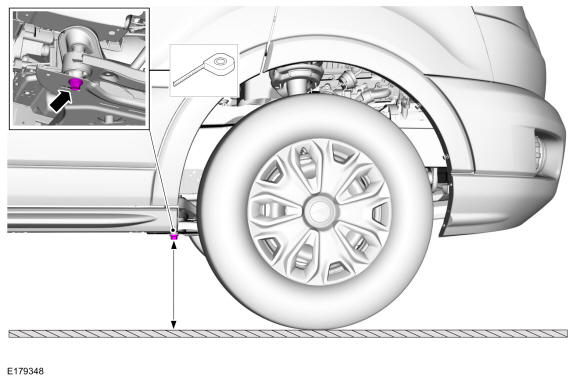

On both sides, measure the distance between the front subframe rearward bolt and the ground.

Courtesy of FORD MOTOR COMPANY

Check

NOTE: Ride Height Measurement - Rear

NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

1.

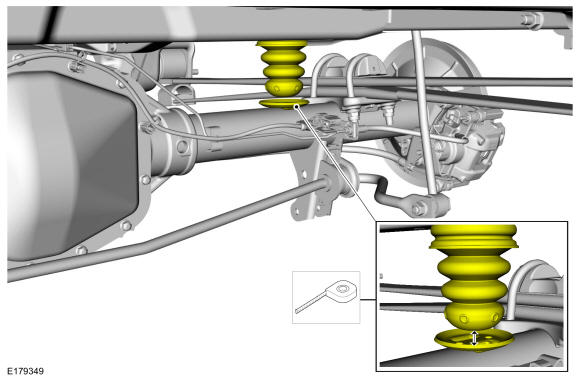

On both sides, measure the distance between the bottom of the jounce bumper and the striker cup on the axle.

Courtesy of FORD MOTOR COMPANY
