Selector Lever Bezel: Removal

1.

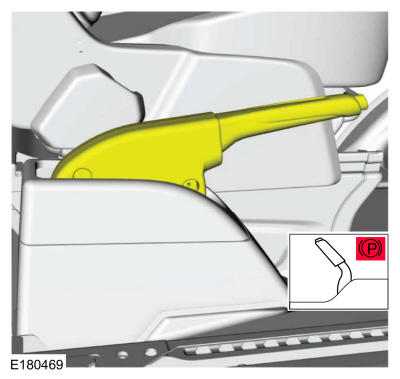

Fully apply the parking brake lever.

GFD75997

Courtesy of FORD MOTOR COMPANY

2.

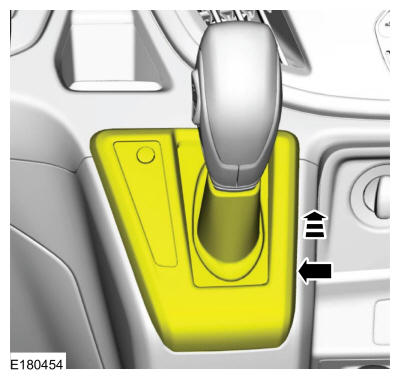

Unsnap and lift the selector lever bezel up.

GFD75998

Courtesy of FORD MOTOR COMPANY

3.

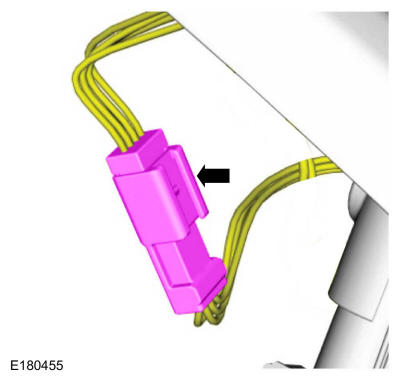

If equipped, disconnect the Tow/Haul switch electrical connector.

GFD75999

Courtesy of FORD MOTOR COMPANY

4.

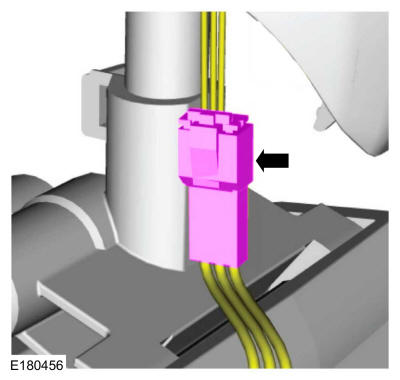

Disconnect the SelectShift™ switch electrical connector.

GFD76000

Courtesy of FORD MOTOR COMPANY

5.

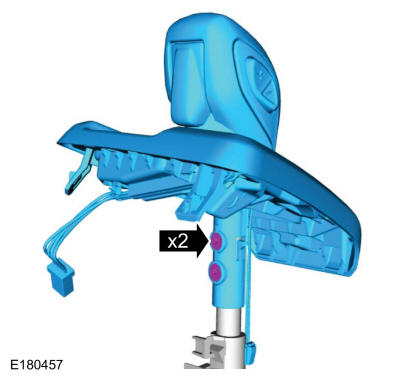

Remove the screws and the selector lever knob and bezel assembly.

GFD76001

Courtesy of FORD MOTOR COMPANY

6.

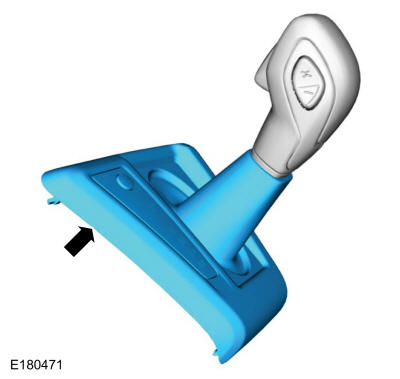

Separate the selector lever bezel from the selector lever knob.

GFD76002

Courtesy of FORD MOTOR COMPANY
