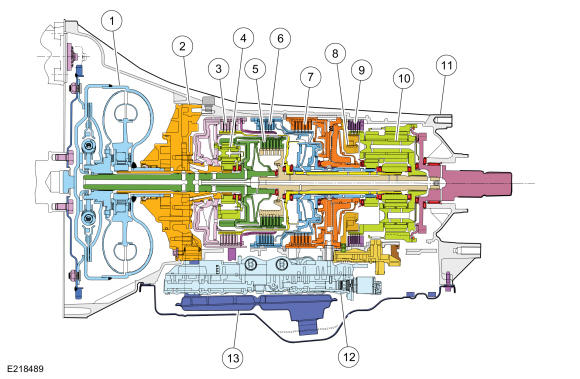

Component Location
| Item | Description |
|---|---|
| 1 | Torque converter |
| 2 | Front pump assembly |
| 3 | Forward clutch (A) |
| 4 | Front planetary gearset |
| 5 | Overdrive clutch (E) |
| 6 | Direct clutch (B) |
| 7 | Intermediate clutch (C) |
| 8 | One-Way Clutch (OWC) |
| 9 | Low/reverse clutch (D) |
| 10 | Rear planetary gearset |
| 11 | Transmission case |
| 12 | Main control assembly |
| 13 | Transmission fluid filter |
