Transmission Cooling

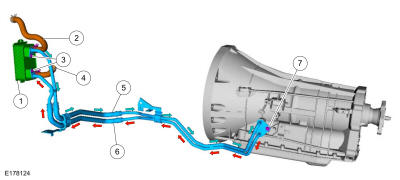

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7H255 | Transmission fluid cooler coolant inlet hose |
| 3 | W712658 | Transmission fluid cooler tube-to-transmission fluid cooler bolts |
| 4 | - | Transmission fluid cooler coolant outlet hose (part of 8286) |
| 5 | - | Transmission fluid cooler transmission fluid outlet tube (part of 7H420) |
| 6 | - | Transmission fluid cooler transmission fluid inlet tube (part of 7H420) |
| 7 | W715131 | Transmission oil cooler tube-to-transmission bolt |

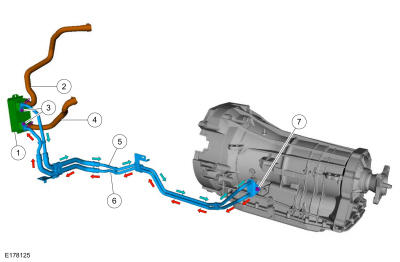

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7H255 | Transmission fluid cooler coolant inlet hose |
| 3 | W712658 | Transmission fluid cooler tube-to-transmission fluid cooler bolts |
| 4 | - | Transmission fluid cooler coolant outlet hose (part of 8286) |
| 5 | - | Transmission fluid cooler transmission fluid outlet tube (part of 7H420) |
| 6 | - | Transmission fluid cooler transmission fluid inlet tube (part of 7H420) |
| 7 | W715131 | Transmission oil cooler tube-to-transmission bolt |
