Heated Front Seat Module: Removal

NOTE: Driver seat shown, passenger seat similar.

• 1.

  Position the driver front seat to the full rearward and full upward position.

Courtesy of FORD MOTOR COMPANY

• 2.

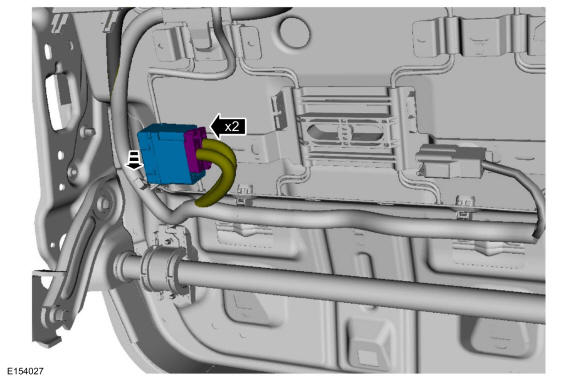

  Disconnect the electrical connectors and remove the heated front seat module.

Courtesy of FORD MOTOR COMPANY
