Fuel System Pressure Check

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	310-D009 (D95L-7211-A) Fuel Pressure Test Kit

Check

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

1.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

2.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .

3.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) . Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

4.

Remove the Air Cleaner Outlet Pipe. Refer to: Air Cleaner Outlet Pipe .

5.

Disconnect the fuel tube-to-fuel jumper tube spring lock coupling. Refer to: Spring Lock Couplings .

6.

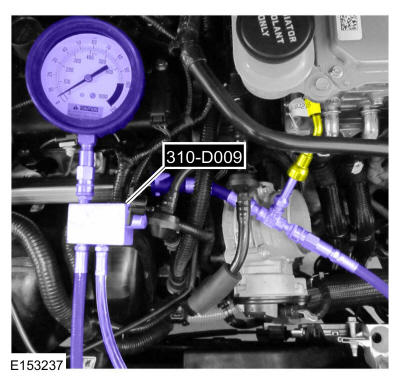

Install the Fuel Pressure Test Adapter and the Fuel Pressure Test Kit between the fuel tube and the fuel jumper tube. Use Special Service Tool: 310-D009 (D95L-7211-A) Fuel Pressure Test Kit.

GFD153384

Courtesy of FORD MOTOR COMPANY

7.

NOTE: The FPDM electrical connector was previously disconnected to release the fuel system pressure and must be reconnected to test the fuel system pressure.

Reconnect the FPDM electrical connector.

8.

Reinstall the Air Cleaner Outlet Pipe. Refer to: Air Cleaner Outlet Pipe .

9.

Connect the battery ground cable. Refer to: Battery Disconnect and Connect - Plug-In Hybrid Electric Vehicle (PHEV) . Refer to: Battery Disconnect and Connect - Hybrid Electric Vehicle (HEV) .

10.

NOTE: Carry out a ignition ON engine OFF visual inspection for fuel leaks prior to completing the fuel system pressure test.

NOTE: After completing the fuel system pressure test, open the drain valve on the Fuel Pressure Test Kit and release any residual fuel into a suitable container prior to removing the tool.

Test the fuel system pressure to make sure it is within the specified range.
