Selector Lever Cable Adjustment

Adjustment

• 1.

  Refer to: Jacking and Lifting - Overview .

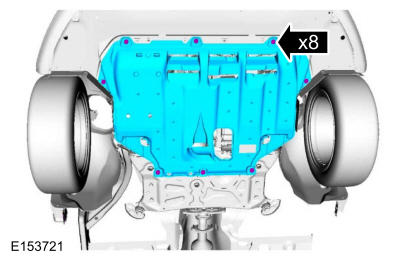

• 2.



Courtesy of FORD MOTOR COMPANY

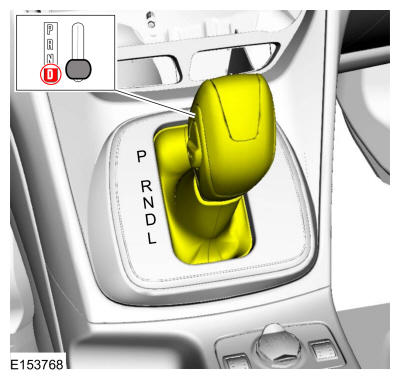

• 3.



Courtesy of FORD MOTOR COMPANY

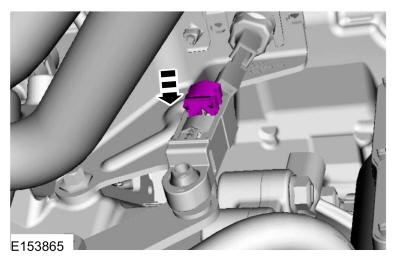

• 4.



Courtesy of FORD MOTOR COMPANY

• 5.

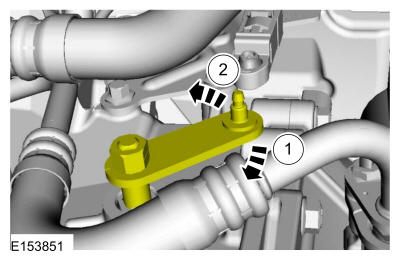

  • 1.

    Rotate the selector shaft lever clockwise until it stops.

  • 2.

    Rotate the selector shaft lever counterclockwise 3 detents.

Courtesy of FORD MOTOR COMPANY

• 6.

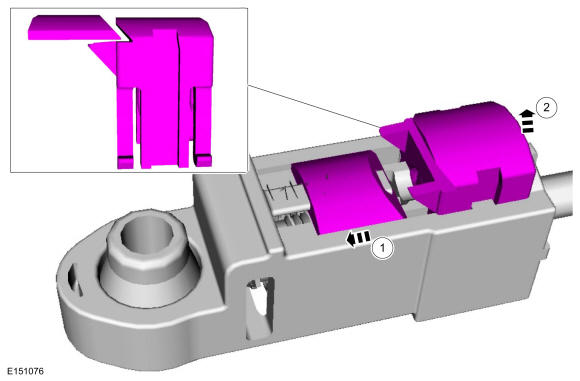

  • 1.

    Move the slide to the left.

  • 2.

    While holding the slide, position the adjuster lock upward.

Courtesy of FORD MOTOR COMPANY

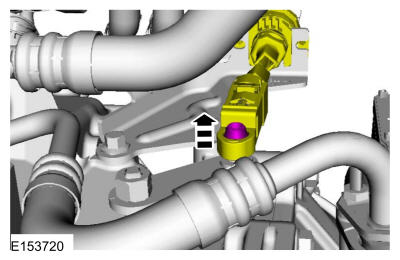

• 7.



Courtesy of FORD MOTOR COMPANY

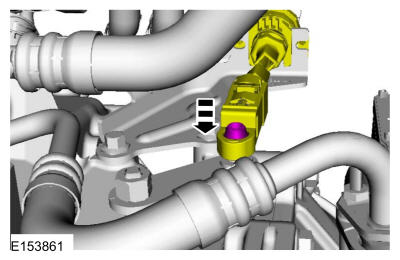

• 8.



Courtesy of FORD MOTOR COMPANY

• 9.



Courtesy of FORD MOTOR COMPANY

• 10.

  Verify that the vehicle only starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
