Transmission Range (TR) Sensor: Installation

1.

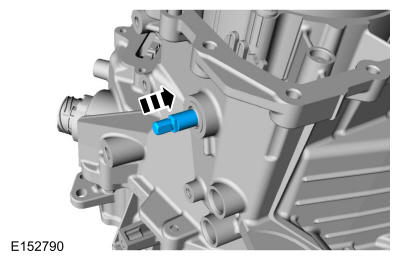

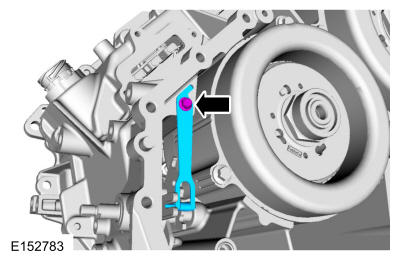

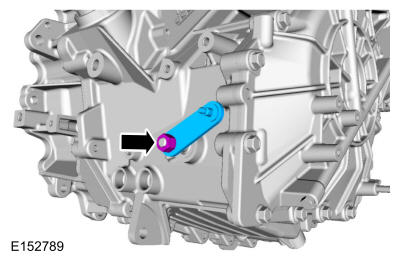

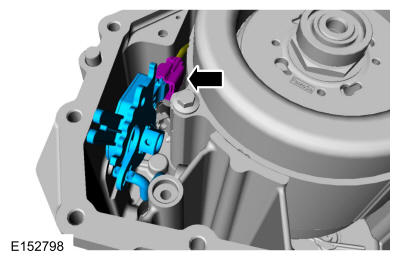

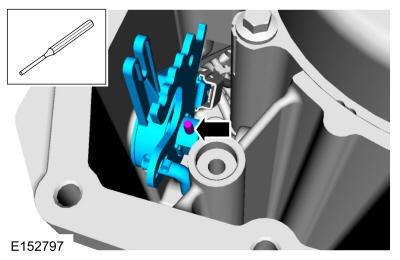

Install the TR sensor and the park pawl actuator rod and connect the electrical connector.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

5.

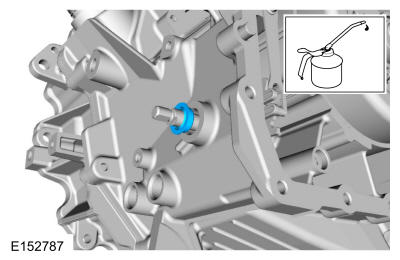

Lubricate a new manual control lever shaft seal with clean transmission fluid and install the manual control lever shaft seal on the manual control lever shaft.
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

Courtesy of FORD MOTOR COMPANY

6.

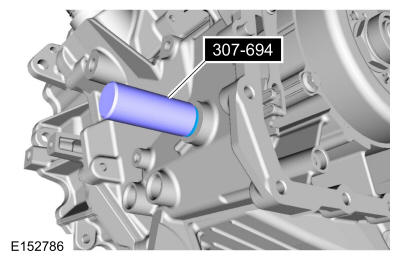

Using the special tool, install the manual control lever shaft seal. Use Special Service Tool: 307-694 Installer, Manual Lever Seal.

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

Make sure that the mating faces are clean and free of foreign material. Use the General Equipment: Plastic Scraper

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

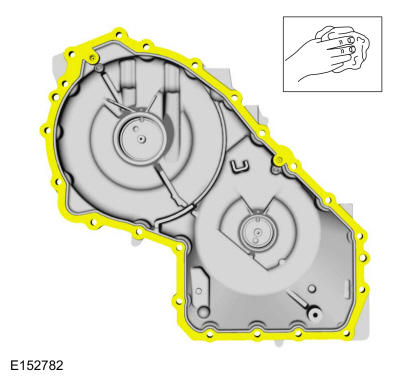

Make sure that the mating faces are clean and free of foreign material.

Courtesy of FORD MOTOR COMPANY

9.

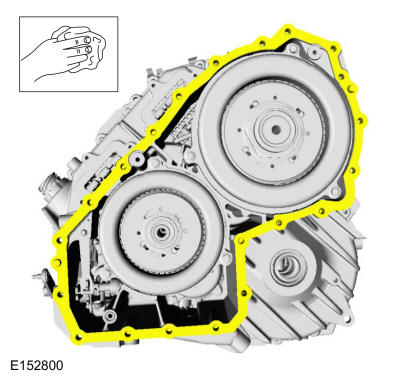

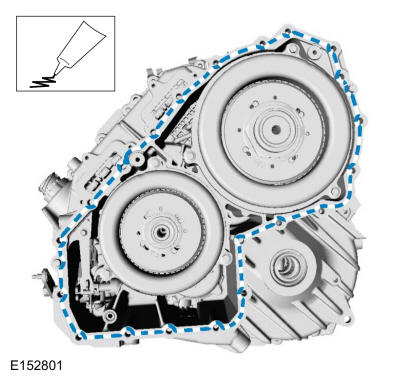

Apply silicone to the transmission case assembly.
Material: Motorcraft ® Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR COMPANY

10.

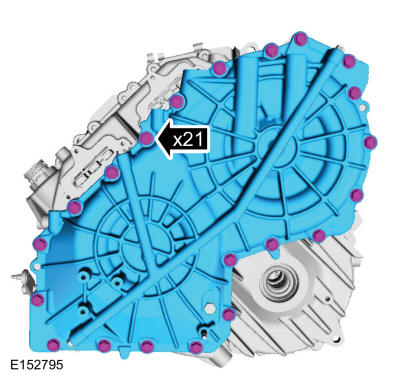

Install the transmission case end cover assembly and the bolts.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
