Disassembly And Assembly Of Subassemblies: Differential: Disassembly

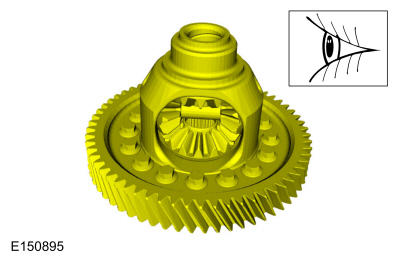

• 1.

  Inspect the differential bearings for damage or excessive wear. Install new bearings if necessary.

Courtesy of FORD MOTOR COMPANY

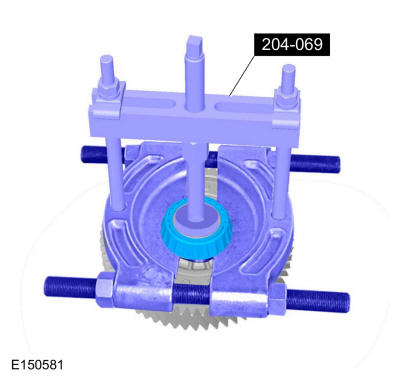

• 2.

  Using special tools, remove the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY

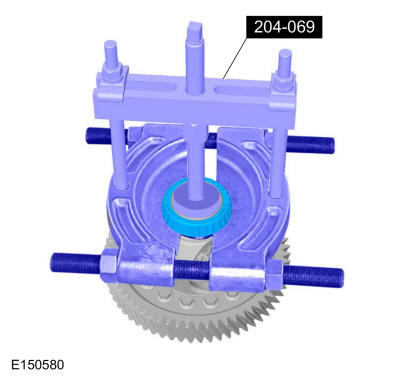

• 3.

  Using special tools, remove the bearing. Use Special Service Tool: 204-069 (T81P-1104-C) Remover/Installer, Front Wheel Hub. Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: If the ring gear is replaced, a new transfer shaft must also be installed.

  Check the differential assembly and the ring gear for damage.

Courtesy of FORD MOTOR COMPANY

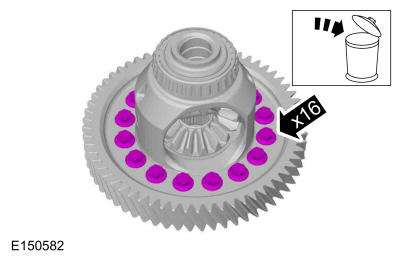

• 5.

  Remove and discard the ring gear bolts.

Courtesy of FORD MOTOR COMPANY

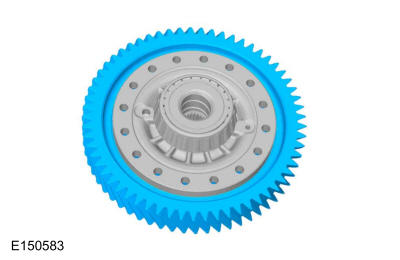

• 6.

  Remove the ring gear.

Courtesy of FORD MOTOR COMPANY
