Transmission Fluid Level Check

Materials

Name	Specification
Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC	MERCON ® LVWSS-M2C938-A

Check

• 1.

  Start the engine and allow to run for 1 minute. Turn engine off and wait 5 minutes.

• 2.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 3.

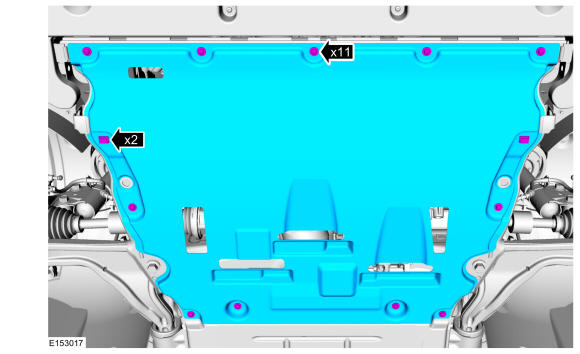

  Remove the screws, grommets and the engine front undershield.

Courtesy of FORD MOTOR COMPANY

• 4.

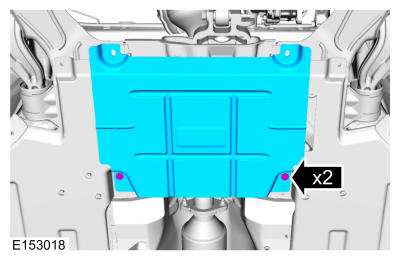

  Remove the screws and the engine undershield.

Courtesy of FORD MOTOR COMPANY

• 5.

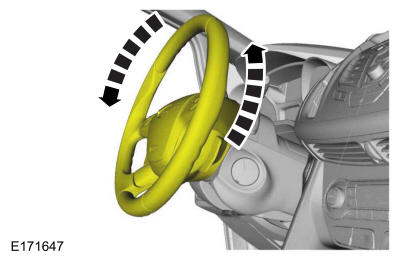

  Rotate the steering wheel counter clockwise to access the oil leveling plug.

Courtesy of FORD MOTOR COMPANY

• 6.


  NOTE: The transmission fluid should be even with the bottom of the oil leveling plug hole.

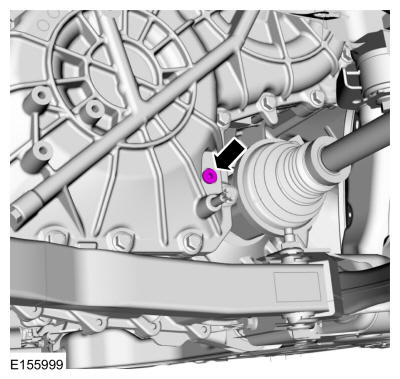

  Remove the oil leveling plug and check the transmission fluid level.

Courtesy of FORD MOTOR COMPANY

Adding Additional Transmission Fluid

• 7.

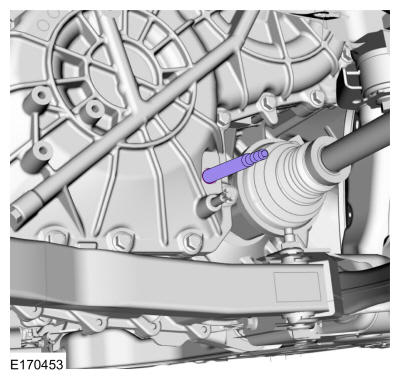

  Select adapter MVA585 (M10 X 1.0) and install into oil leveling plug hole hand tight.

Courtesy of FORD MOTOR COMPANY

• 8.

  Fill the transmission with transmission fluid.

  • 1.

    Fill the Mityvac MITMV6412 with transmission fluid.

    Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)

  • 2.

    Connect the Mityvac MITMV6412.

  • 3.

    Follow the manufacturer instructions to dispense the fluid into the transmission.

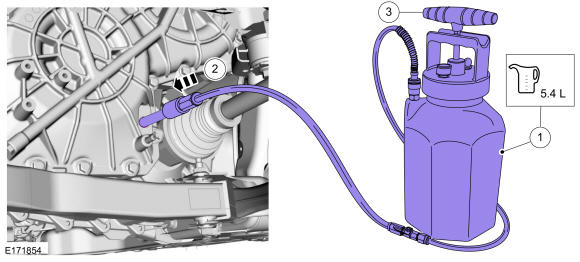

Courtesy of FORD MOTOR COMPANY

• 9.



  • 1.

    Release the pressure.

  • 2.

    Allow all excess fluid to drain back into the canister, then remove the Mityvac MITMV6412.

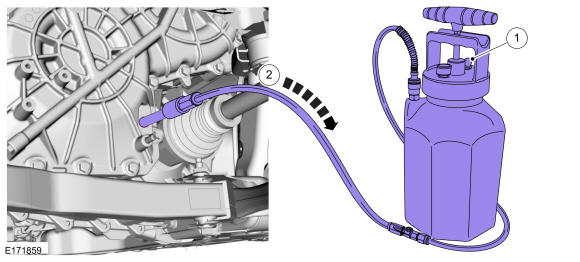

Courtesy of FORD MOTOR COMPANY

• 10.

  Install the oil leveling plug.

  Torque: 71 lb.in (8 Nm)

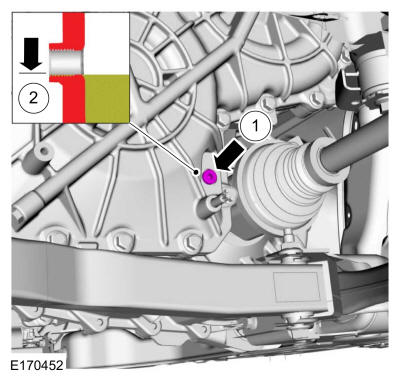

Courtesy of FORD MOTOR COMPANY

• 11.

  Install the engine undershield and the screws.

Courtesy of FORD MOTOR COMPANY

• 12.

  Install the engine front undershield, grommets and the screws.

Courtesy of FORD MOTOR COMPANY
