Transmission Strategy Download
Configuration
WARNING:
Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
- 1.
Refer to: Health and Safety Precautions .
- 2.
Using the scan tool, enter the transmission 11-digit identification and 13-digit strategy recorded from the transmission tag.
- 3.NOTE: If the transmission strategy information is not correct, transmission driveability concerns can occur.
The scan tool verifies the numbers entered are valid and will display a message if the information is not valid. The scan tool will check to verify the file is present on the scan tool. If the file is present, the technician may proceed with downloading the file to the TCM. If the file is not present, the scan tool will need to be connected to the PTS server to download the file onto the scan tool.
- 4.
Verify the file is present on the scan tool. If the file is present, go to Step 9. If the file is not present, continue with this procedure.
- 7.
If the scan tool cannot connect to the PTS server, download the file from www.motorcraft.com. If the scan tool cannot download a strategy from the web site, a partial strategy will automatically be downloaded.
- 10.
- The scan tool will automatically download the strategy file to the TCM. The scan tool will display a message when it is finished downloading the data that states that the file was downloaded successfully.

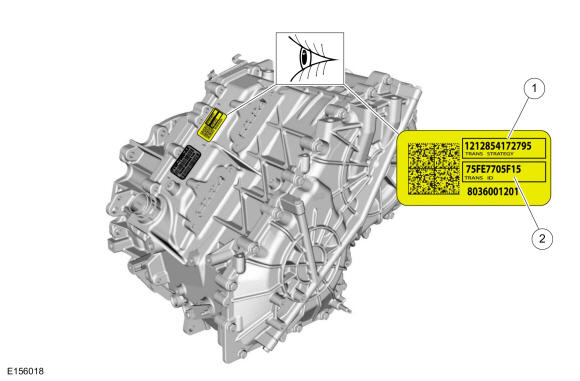

- 1.
13 digit transmission strategy
- 2.
11 digit transmission identification
