Front Door Lock Switch LH - With Memory

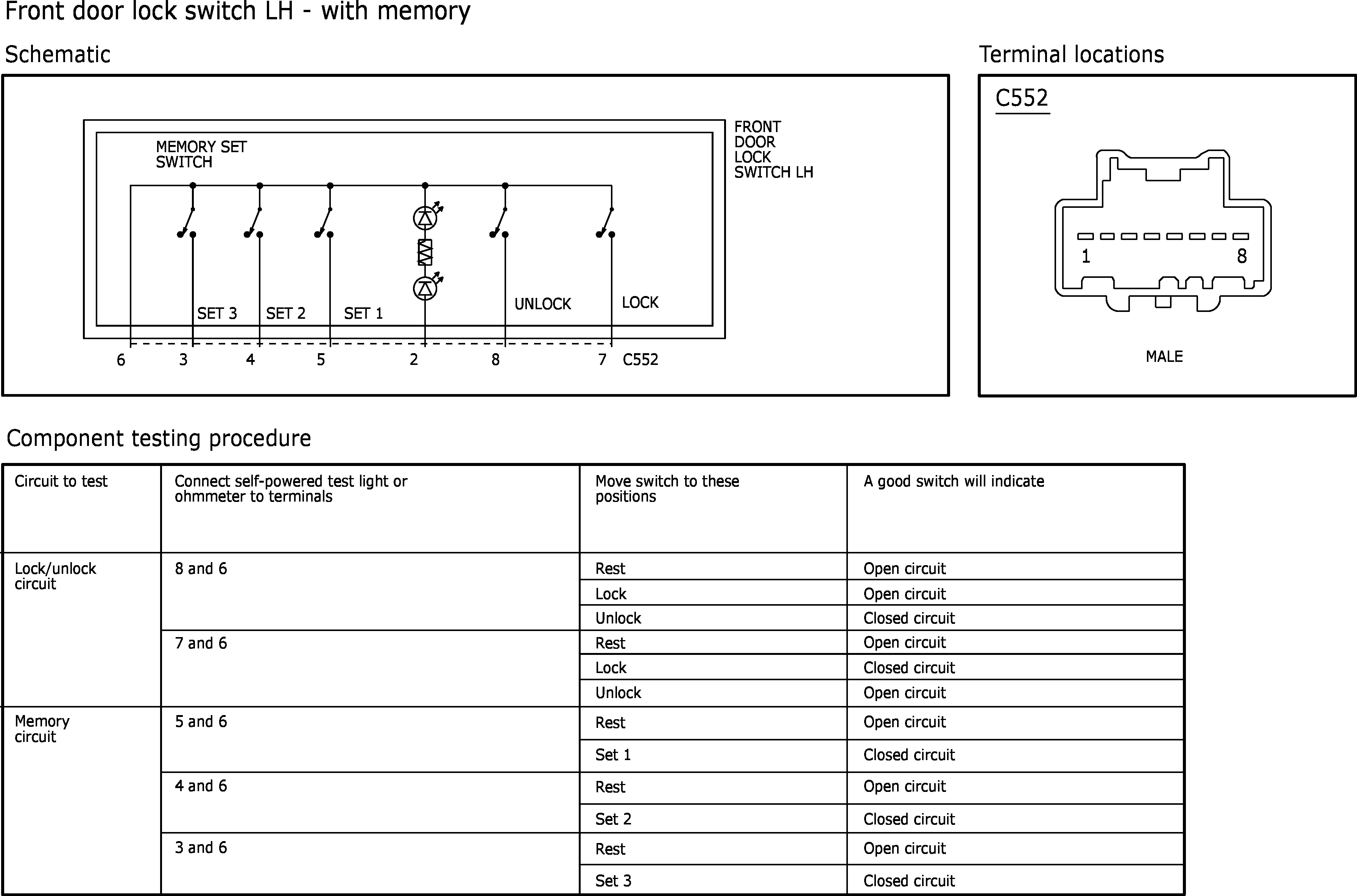

Fig 1: Front Door Lock Switch LH - With Memory
GFDW5579Courtesy of FORD MOTOR COMPANY
