Home › Ford › 2016 › Edge SE, AWD › Repair and Diagnosis › Quick Lookups › Wiring Diagrams › OEM Wiring Diagrams Component Testing › Component Testing › Passenger Door Window Control Switch

Passenger Door Window Control Switch

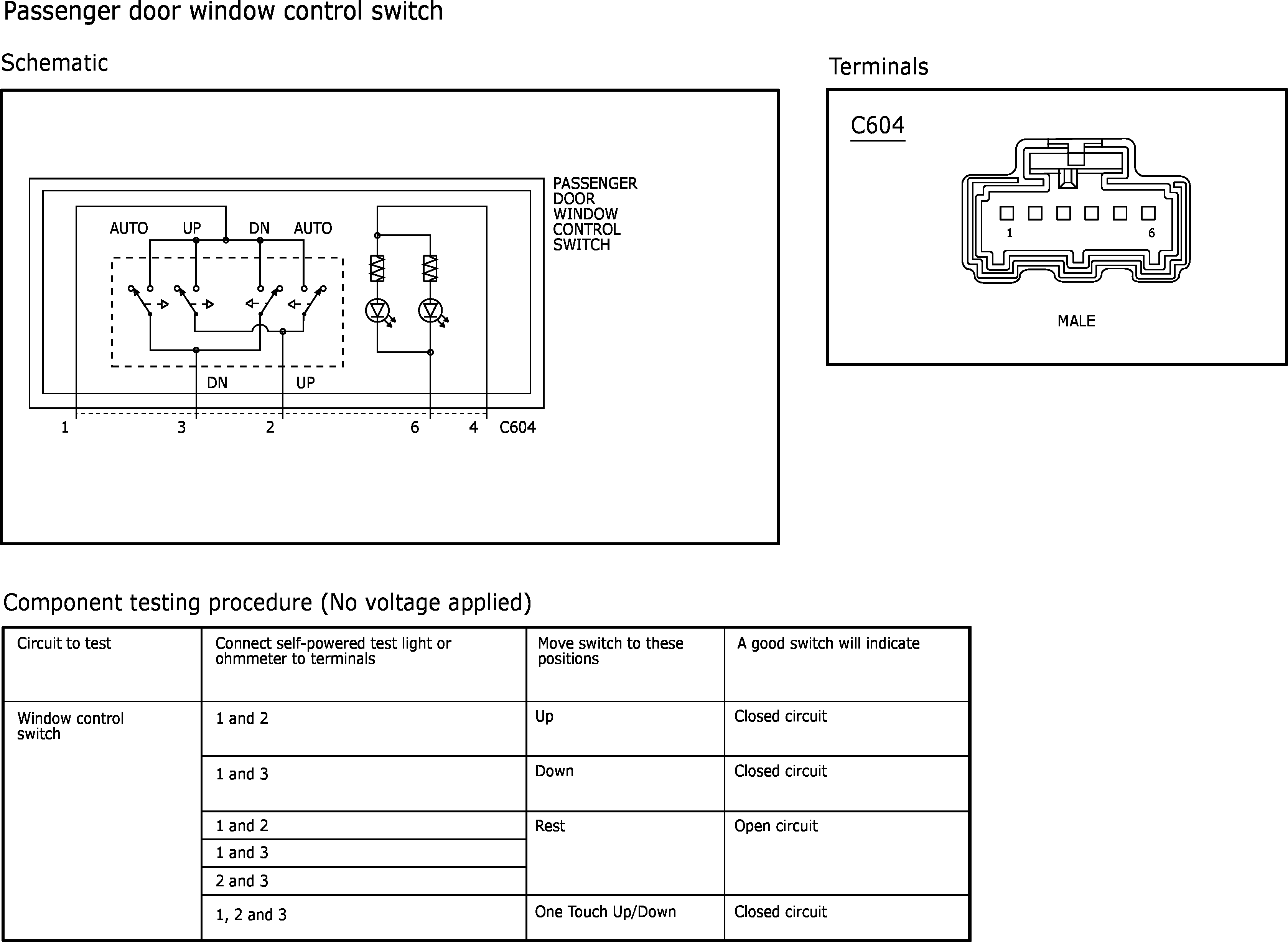

Fig 1: Passenger Door Window Control Switch
GFDW5576Courtesy of FORD MOTOR COMPANY
