Differential Fluid Level Check
WARNING: This page is about a different variant/trim than selected.
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant (U.S.) XY-80W90-QL (U.S.) | WSP-M2C197-A |
Check
- 1.
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- 2.

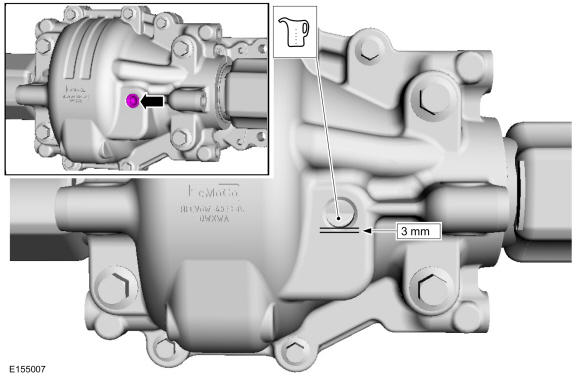

Remove the filler plug. If empty, fill the rear axle with 0.55L (1.15 pt) of rear axle lubricant. If fluid level is low, fill to 3-5 mm (0.118-0.196 in) below the bottom of the filler hole and install the filler plug.Material: Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant (U.S.) / XY-80W90-QL (U.S.) (WSP-M2C197-A)
Torque: 21 lb.ft (29 Nm)
