Window Control Switch - Without Door Modules

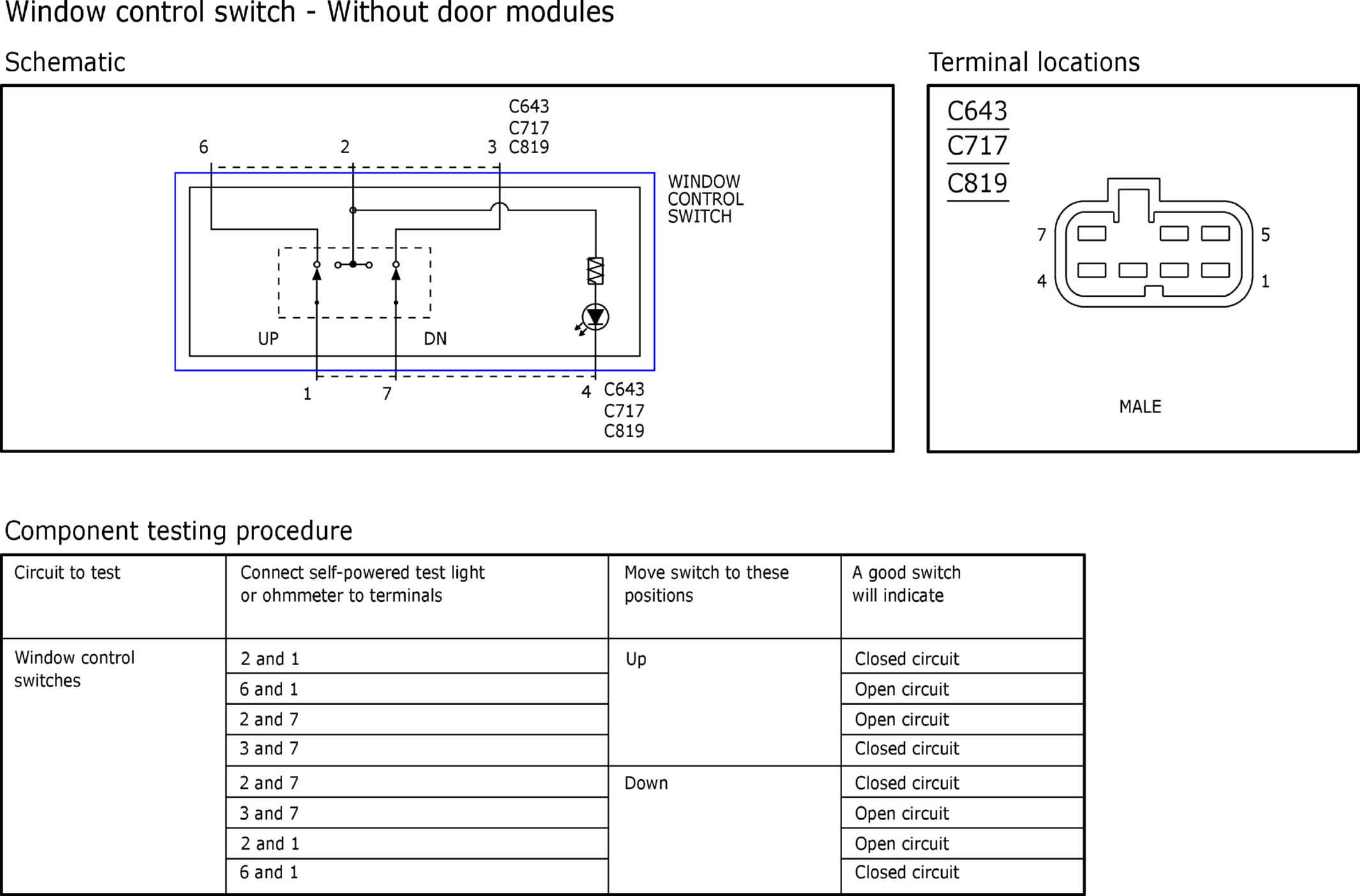

Fig 1: Window Control Switch - Without Door Modules
GFDW48244Courtesy of FORD MOTOR COMPANY
