Driver Front Seat Module (DSM): Removal

• 1.

  Position the driver front seat to the full rearward and full upward position.

Courtesy of FORD MOTOR COMPANY

• 2.

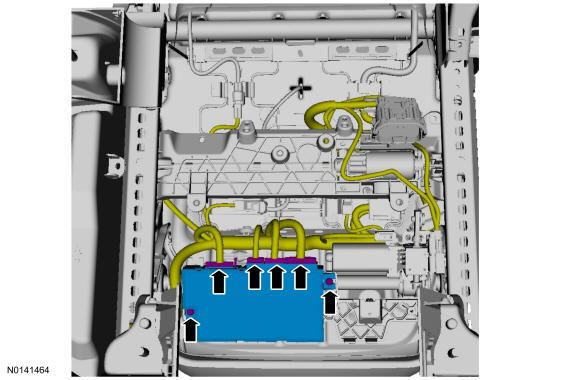

  Disconnect the DSM electrical connectors, remove the screws and the DSM.

Courtesy of FORD MOTOR COMPANY
