Front Seat Backrest: Installation

All seats

• 1.

  To install, reverse the removal procedure

• 2.

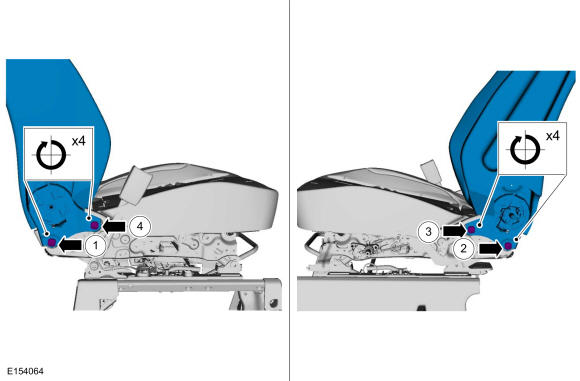

  • 1.

    Install retainer and hand tighten clockwise 4 turns.

  • 2.

    Install retainer and hand tighten clockwise 4 turns.

  • 3.

    Install retainer and hand tighten clockwise 4 turns.

  • 4.

    Install retainer and hand tighten clockwise 4 turns.

Courtesy of FORD MOTOR COMPANY

• 3.

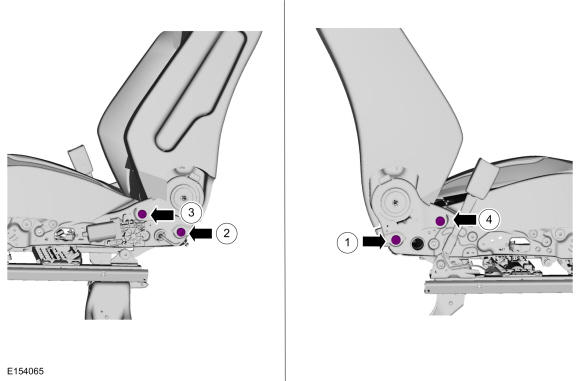

  • 1.

    Tighten the bolt.

    Torque:

    33 lb.ft (45 Nm)

  • 2.

    Tighten the bolt.

    Torque:

    33 lb.ft (45 Nm)

  • 3.

    Tighten the bolt.

    Torque:

    33 lb.ft (45 Nm)

  • 4.

    Tighten the bolt.

    Torque:

    33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY

• 4.

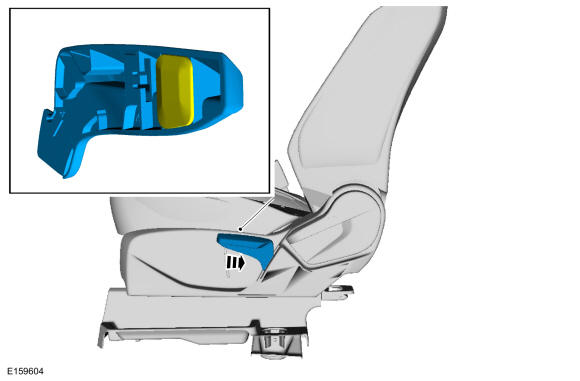

  NOTE: Before installing the height adjust handle, check that the cap is positioned correctly.

  Install the height adjust handle.

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the front seat. REFER to: Front Seat

Driver seat with memory

• 6.


  NOTE: This step is only necessary when installing a new backrest frame.

  Calibrate the driver seat hard stops using a scan tool.
