Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: FWD vehicle shown, AWD vehicles similar.

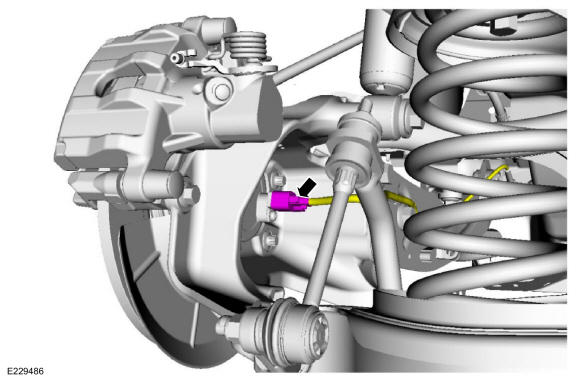

• 1.

  Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

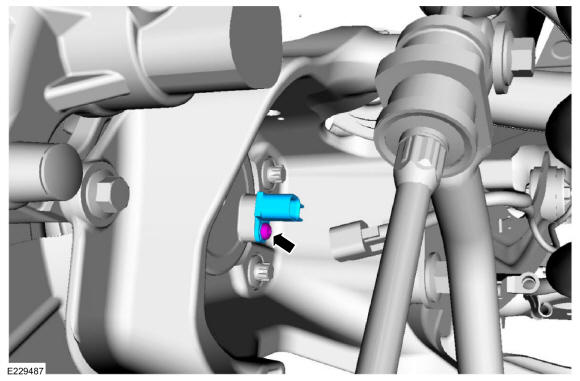

• 2.

  Remove the bolt and the rear wheel speed sensor.

  Torque:

  42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY
