Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

2.

Remove the steering wheel. Refer to: Steering Wheel .

3.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .

4.

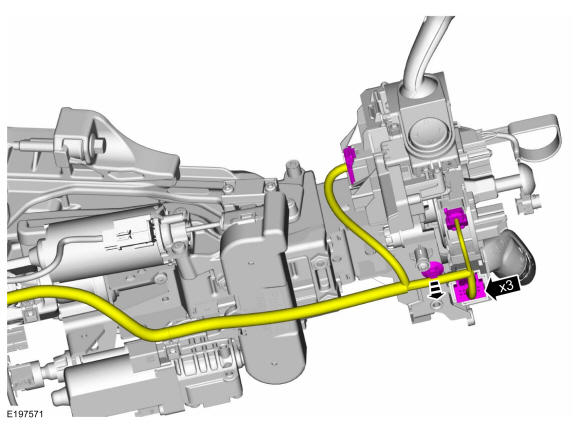

Detach the retainer and disconnect the SCCM electrical connector(s).

Courtesy of FORD MOTOR COMPANY

5.

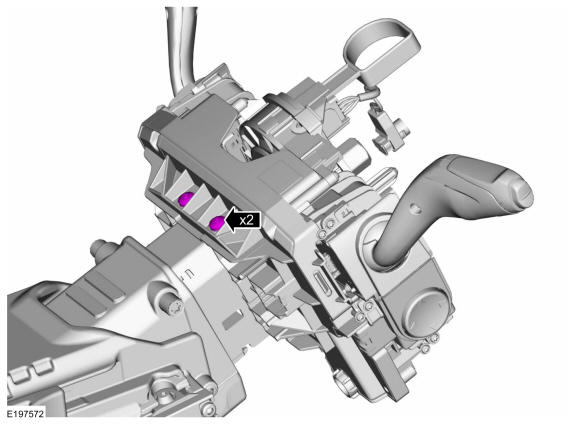

Remove the SCCM screws.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

6.
1. 1.

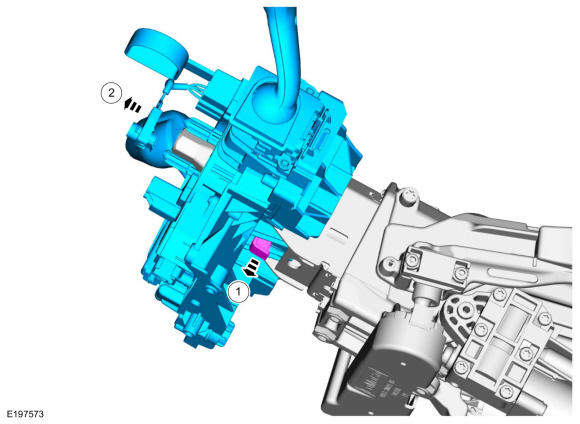

  Release the SCCM retaining clip.
1. 2.

  Remove the SCCM.

Courtesy of FORD MOTOR COMPANY
