Front Strut and Spring Assembly: Installation

WARNING: This page is about a different car, the 2016 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.

1.

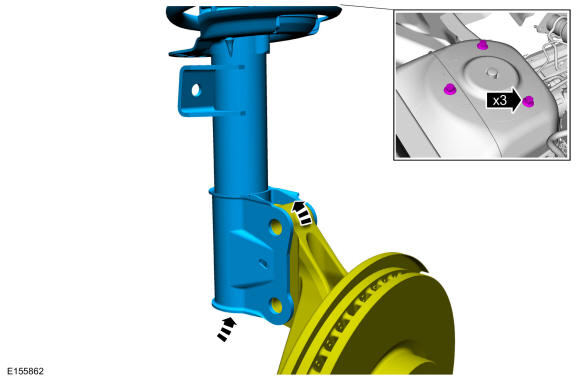

Position the front strut and spring assembly and install the new front strut and spring assembly upper bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Install the cowl panel. Refer to: Cowl Panel .

3.

Install the new front strut and spring assembly-to-wheel knuckle bolts and nuts.
Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY

4.

Position the front stabilizer bar link and install the new front stabilizer bar link upper nut. Position and clip the wheel speed sensor harness.
Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY

5.

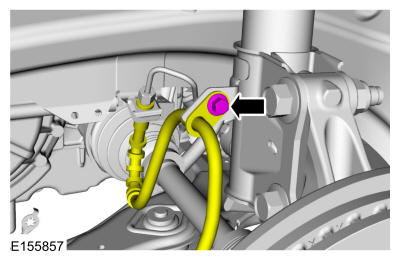

Position the brake hose and install the brake hose bracket bolt.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Install the wheel and tire. Refer to: Wheel and Tire .

7.

Check and if necessary adjust front camber. Refer to: Front Camber Adjustment .
