Transfer Case Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

1.

Follow the health and safety precautions. REFER to: Health and Safety Precautions

2.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

3.

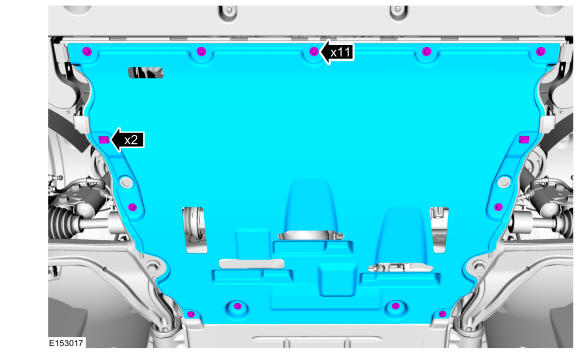

If equipped. Remove the retainers and the underbody shield.

GFD50475

Courtesy of FORD MOTOR COMPANY

4.

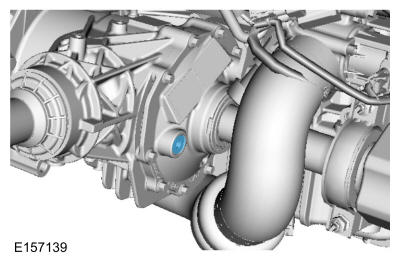

Remove the PTU (Power Transfer Unit) fill plug.

GFD50477

Courtesy of FORD MOTOR COMPANY

5.

Fill the PTU with clean fluid, level with the fill plug opening.
Material

Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

GFD50478

Courtesy of FORD MOTOR COMPANY

6.

Install the PTU fill plug.
Torque:

33 lb.ft (45 Nm)

GFD50477

Courtesy of FORD MOTOR COMPANY

7.

If equipped. Install the underbody shield.

GFD50475

Courtesy of FORD MOTOR COMPANY
