Front Toe Adjustment

Adjustment

• 1.

  Using alignment equipment and the manufacturer's instructions, measure the front toe.

• 2.

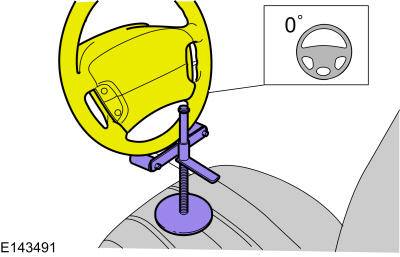

  Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY

• 3.


  NOTE: Hold the tie-rod end stationary with a wrench while loosening the nut or damage to the boot can occur.

  On both sides.

  • 1.

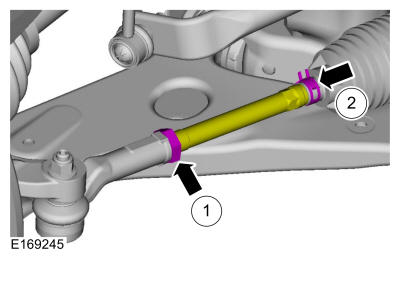

    Position aside the steering gear boot clamp.

  • 2.

    Loosen the outer tie rod end jamb nut.

  • 3.


    NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.

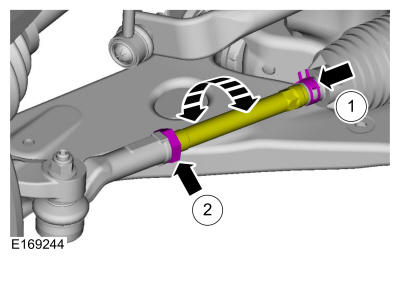

    Rotate the inner tie-rods an equal amount in either a clockwise or a counterclockwise direction to adjust the toe setting on both sides.

Courtesy of FORD MOTOR COMPANY

• 4.


  NOTE: Do not disturb the toe settings while tightening the nut(s).

  On both sides.

  • 1.

    Tighten the outer tie rod end jamb nut.

    Torque:

    66 lb.ft (90 Nm)

  • 2.

    Position the steering gear boot clamp.

Courtesy of FORD MOTOR COMPANY

• 5.

  Recheck the toe settings and adjust as necessary.
