Selector Lever Bezel: Removal
1.
NOTE:
Removal steps in this procedure may contain installation details.

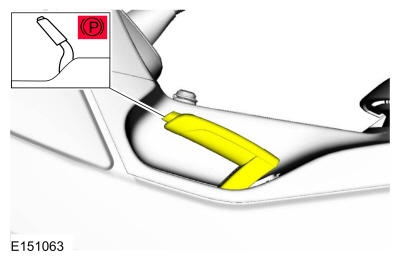

Fully apply the parking brake.
Courtesy of FORD MOTOR COMPANY
2.

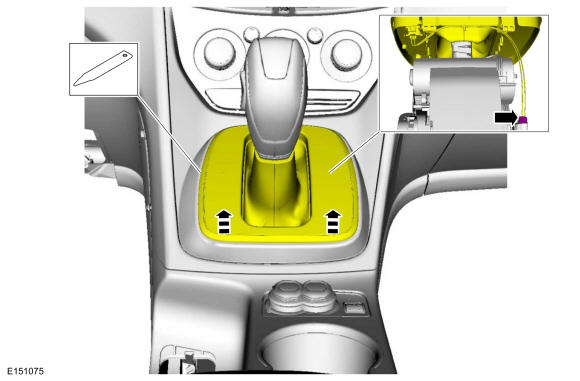

Lift the selector lever bezel up and disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
3.
Disconnect the selectshift switch electrical connector.
Courtesy of FORD MOTOR COMPANY
4.

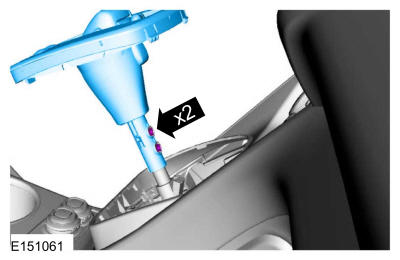

Remove the screws and the selector lever knob.
Courtesy of FORD MOTOR COMPANY
5.

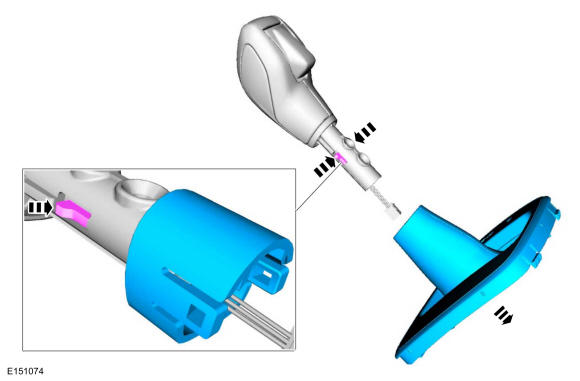

Release the tabs and remove the selector lever bezel from the selector lever.
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
