Low One-Way Clutch Assembly
Low One-Way Clutch Assembly
Low One Way Clutch
For low one way clutch operation, REFER to: Transmission Description REFER to: Low One-Way Clutch Assembly
NOTE:
Do not clean in water or with water-based solvents. Damage to the component may occur.
NOTE:
The low one way clutch cannot be disassembled.

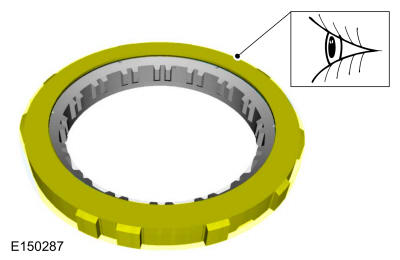

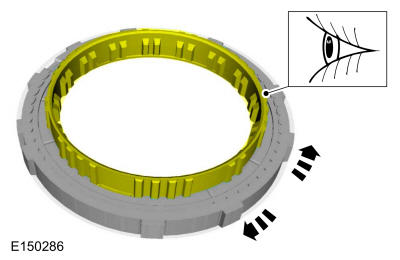

Clean and inspect the low one way clutch for cracks and damaged splines. The internal splined section should rotate clockwise and lock when rotated counterclockwise. Check for burned or excessively worn surface. If any damage is found or the clutch does not rotate or lock, INSTALL a new low one way clutch.
