Roll Restrictor RH: Installation

NOTE: Clean the bolts using a wire brush and apply Motorcraft® Threadlock and Sealer to the threads.

1.

Install the roll restrictor and the roll restrictor bracket and tighten the bolts in the sequence shown below.
- 1.

  Torque
  : 59 lb.ft (80 Nm)
- 2.

  Torque
  : 59 lb.ft (80 Nm)
- 3.

  Torque
  : 59 lb.ft (80 Nm)
- 4.

  Material
  : Motorcraft® Threadlock and Sealer / TA-25-B

  Torque

  : 92 lb.ft (125 Nm)
- 5.

  Material
  : Motorcraft® Threadlock and Sealer / TA-25-B

  Torque

  : 92 lb.ft (125 Nm)

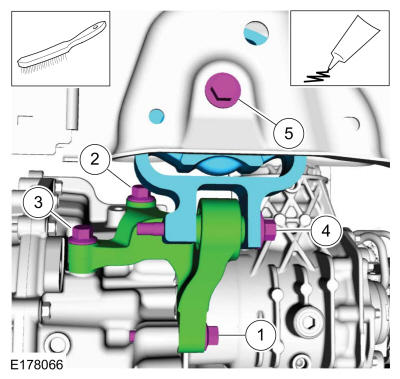

Fig 1: Roll Restrictor Bracket Bolts Tightening Sequence

GFD50039

Courtesy of FORD MOTOR CO.

Refer to: Engine Undershield
