Transmission Range (TR) Sensor: Removal
- 1.
Remove the main control cover. REFER to: Main Control Cover
- 6.NOTE: Do not drive the manual control shaft pin through the manual control shaft. The manual control shaft pin will contact the transmission case causing damage to the transmission case.NOTE: If the roll pin remover does not pull the roll pin far enough to clear the manual shaft, the roll pin can be pulled from the TR sensor with a pair of locking pliers.

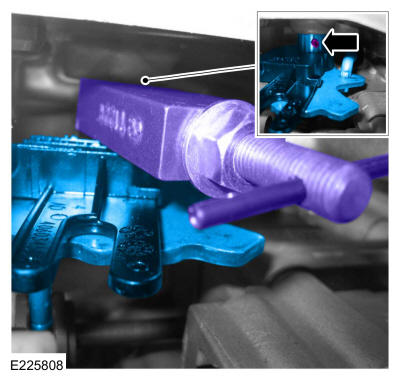

Using the roll pin remover, remove and discard the TR sensor roll pin.
- 7.

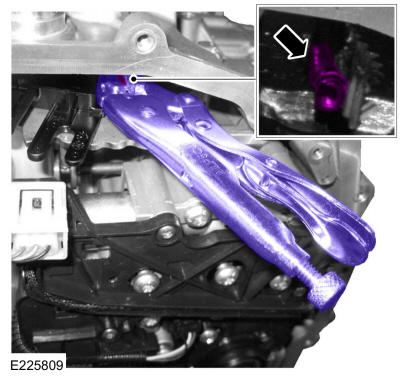

If the roll pin did not clear the manual shaft by pulling it with a roll pin remover, remove the roll pin from the TR sensor with a pair of locking pliers. Use the General Equipment: Locking Pliers
- 8.

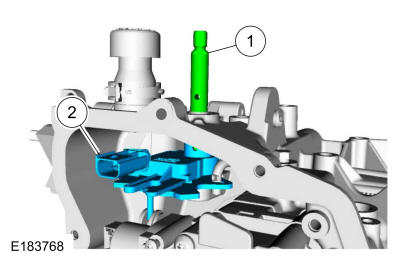

Remove the TR sensor in the following sequence.- 1.
Hold the TR sensor in place and slide the manual shaft outward until the manual shaft is out of the transmission case.
- 2.
Remove the TR sensor from the transmission, leaving the park pawl actuating rod attached to the TR sensor.
- 1.
