Wheel Speed Sensor Ring: Installation

1. 1.

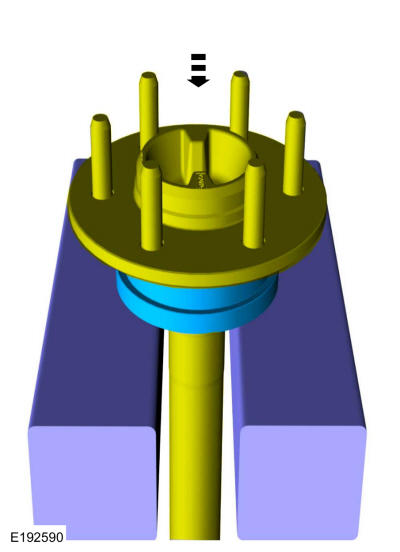

   Using a hydraulic press and wooden blocks, install the wheel speed sensor ring. Use the General Equipment: Hydraulic Press Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

1. 2.

   Install the axle shaft. Refer to: Axle Shaft - Vehicles With: Ford 8.8 Inch Ring Gear . Refer to: Axle Shaft - Vehicles With: Ford 9.75 Inch Ring Gear .
