Accelerator Pedal - Fixed, Exploded View

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

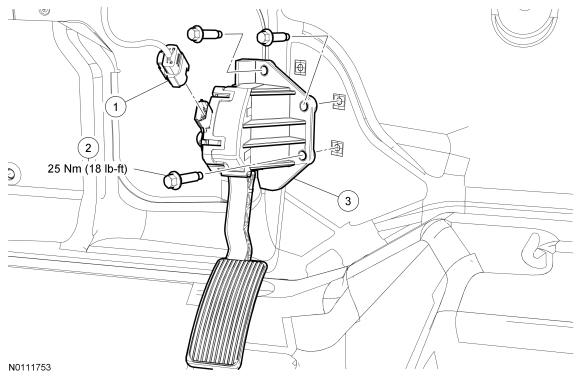

Fig 1: Exploded View Of Fixed Accelerator Pedal With Torque Specifications

GFD26481

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	-	Accelerator pedal and position sensor assembly electrical connector (part of 14A005)
2	W611636	Accelerator pedal and position sensor assembly bolt (3 required)
3	9F836	Accelerator pedal and position sensor assembly

1.

NOTE: To prevent setting DTCs, make sure the ignition switch is in the OFF position prior to disconnecting the accelerator pedal electrical connectors.

Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
