Front Seat Backrest Cover: Installation
WARNING:
Carefully inspect the passenger airbag trim cover, canister and soft pack before assembly. If any foreign objects are found, remove them before attaching the passenger airbag trim cover to the canister. If the canister or soft pack is damaged, install a new passenger airbag assembly. Failure to follow this instruction may result in the passenger airbag deploying incorrectly, which increases the risk of serious personal injury or death in a crash.
- 2.NOTE: Always install new head restraint guide sleeves. Difficult adjustment of the head restraint may occur. Failure to follow these instructions may result in component failure.NOTE: The head restraint guide sleeves are not interchangeable. Failure to install the correct head restraint guide sleeves at the correct position may result in component failure.

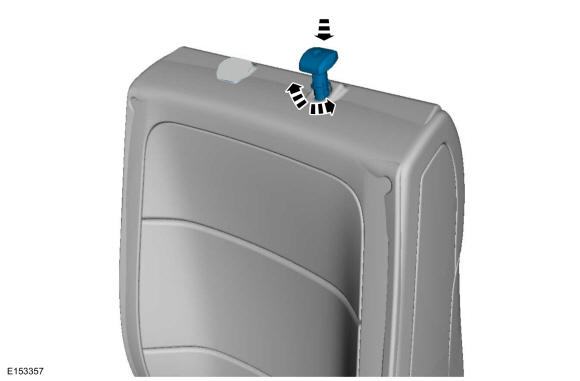

On both sides. Allow the head restraint guide sleeve to slide freely through the backrest foam and backrest cover. Twist the head restraint guide sleeve while pushing it into the backrest frame hole as far as it will go, using hand pressure.
