Front Seat Backrest: Removal

• 1.

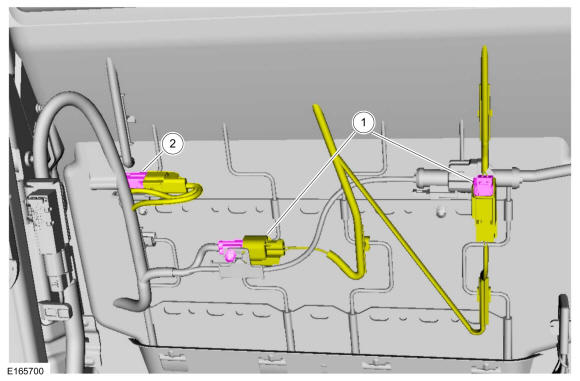

  If equipped.Disconnect the heated seat electrical connectors and position the wiring harness aside.

• 2.

  Disconnect the electrical connector and position the wiring harness aside.

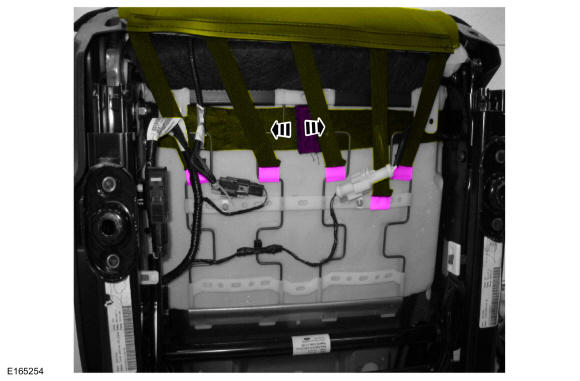

Detach the backrest cover straps and position the backrest cover aside.

• 1.

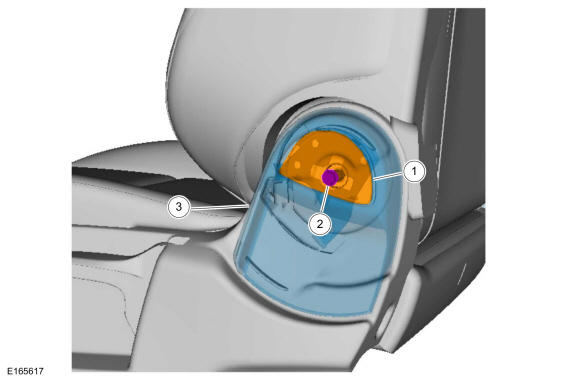

  Remove the bolt cover.

• 2.

  Remove the bolt.

• 3.

  Remove the recline handle.

• 1.

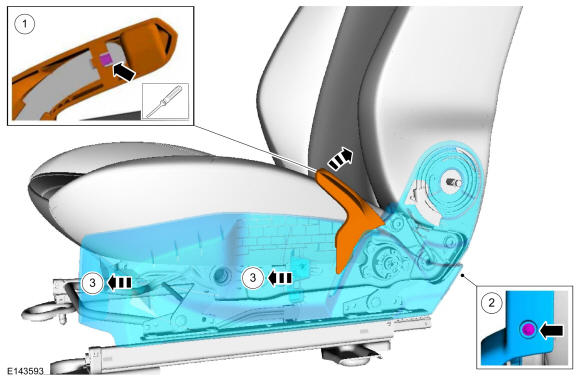

  If equipped.Release the tab and remove the height adjustment handle.Use the General Equipment: Flat Headed Screw Driver

• 2.

  Remove the screw.

• 3.

  Slide forward and remove the side shield.

• 1.

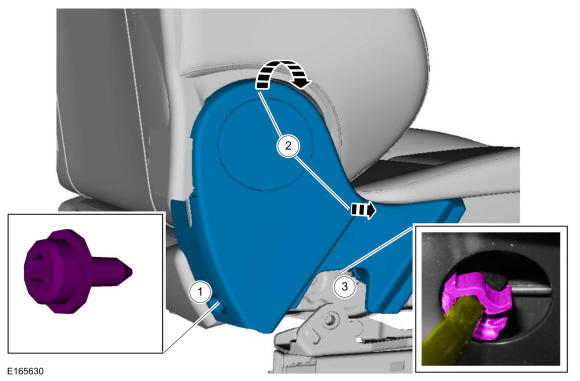

  Remove the screw.

• 2.

  Pull the recliner cover up then out.

• 3.

  Release the clip and remove the recliner cover.
