Piston Ring End Gap
Special Tool(s) / General Equipment
| Feeler Gauge |
|---|
Check
NOTE:
Refer to the appropriate Engine article for the specification.
- 1.NOTE: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.NOTE: Piston rings should not be transferred from one piston to another.NOTE: The cylinder bore must be within specification for taper and out-of-round.

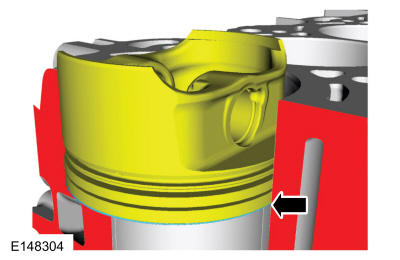

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.
- 2.

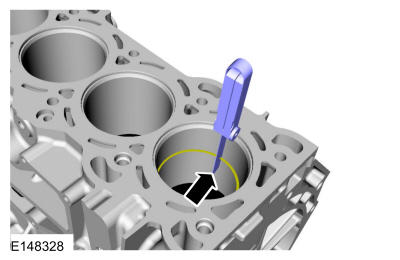

Using the Feeler Gauge Set measure the top piston ring end gap and the second piston ring end gapUse the General Equipment: Feeler Gauge
