Throttle Body: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Jacking and Lifting - Overview .
- 2.
- 1.

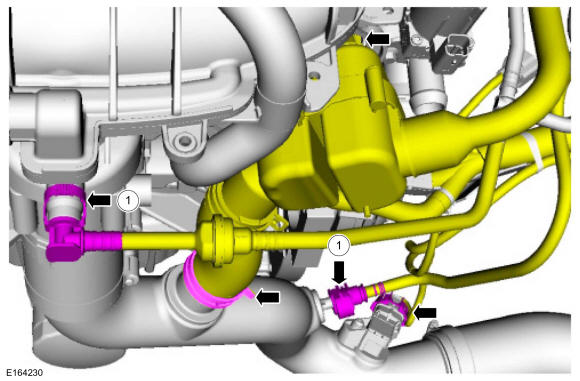

Disconnect the quick release couplings. Refer to: Quick Release Coupling .
- Release the resonator assembly from the retainer, release the resonator assembly clamp and then position the resonator assembly out of the way.
- 1.
- 3.
- 1.

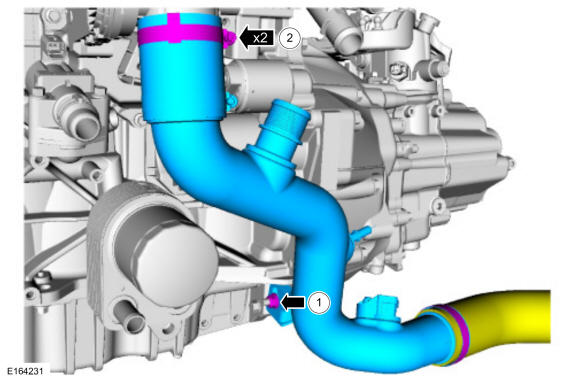

Remove the CAC outlet pipe retaining nut.Torque: 133 lb.in (15 Nm)
- 2.
Loosen the CAC outlet pipe clamps and then remove the CAC outlet pipe.Torque: 44 lb.in (5 Nm)
- 1.

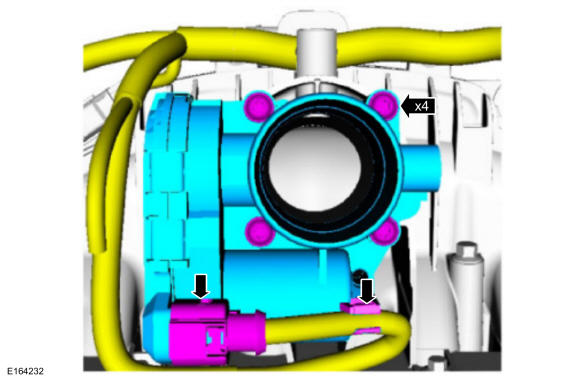

- 4.NOTE: Tighten the Throttle Body (TB) mounting bolts evenly.
- Disconnect the Throttle Body electrical connector and detach the Throttle Body wiring harness retainer from the Throttle Body.
- Remove the Throttle Body bolts and then remove the Throttle Body.
Torque: 71 lb.in (8 Nm)
