Multifunction Switch, Wiper/Washer Switch

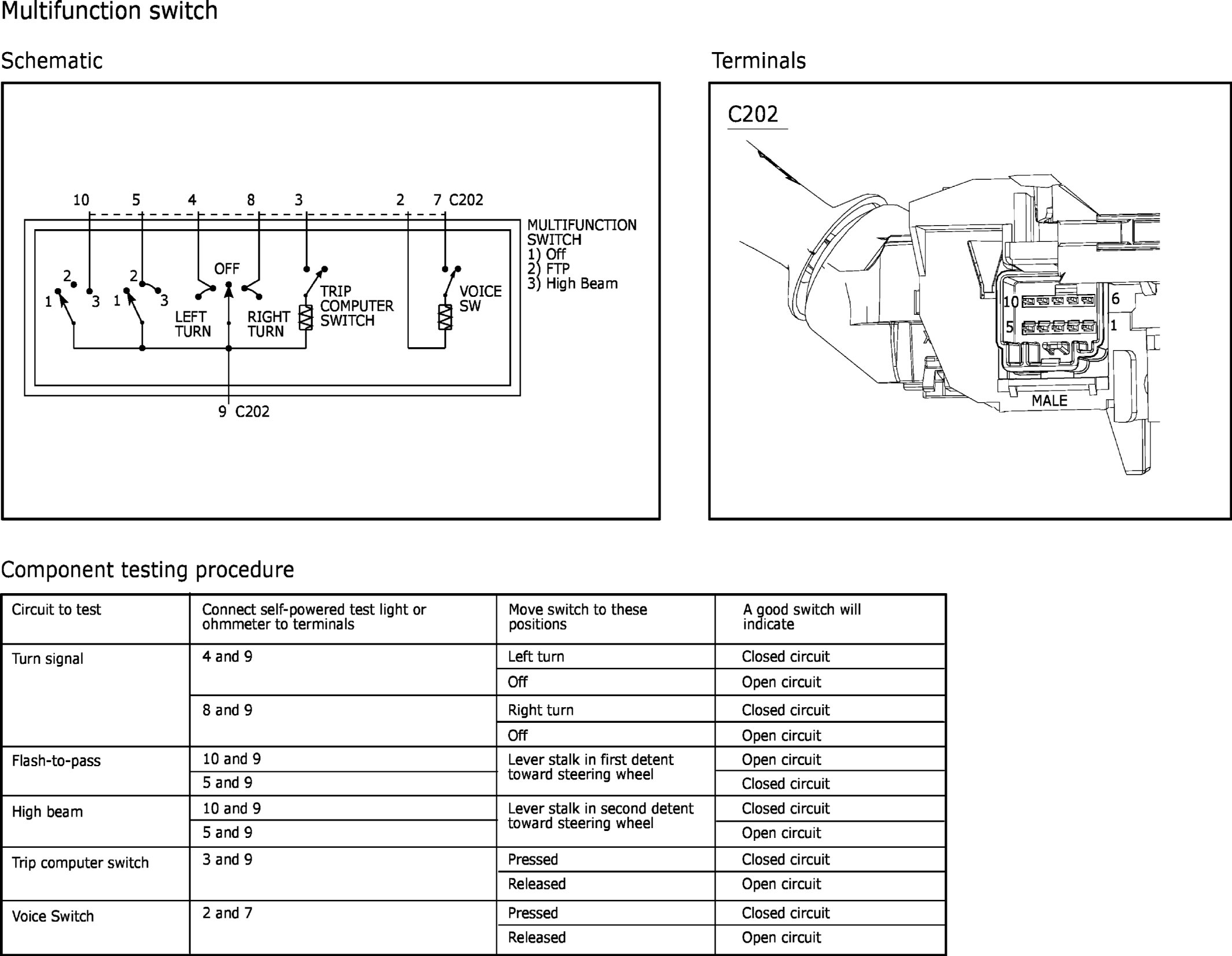

Fig 1: Multifunction Switch

Courtesy of FORD MOTOR COMPANY

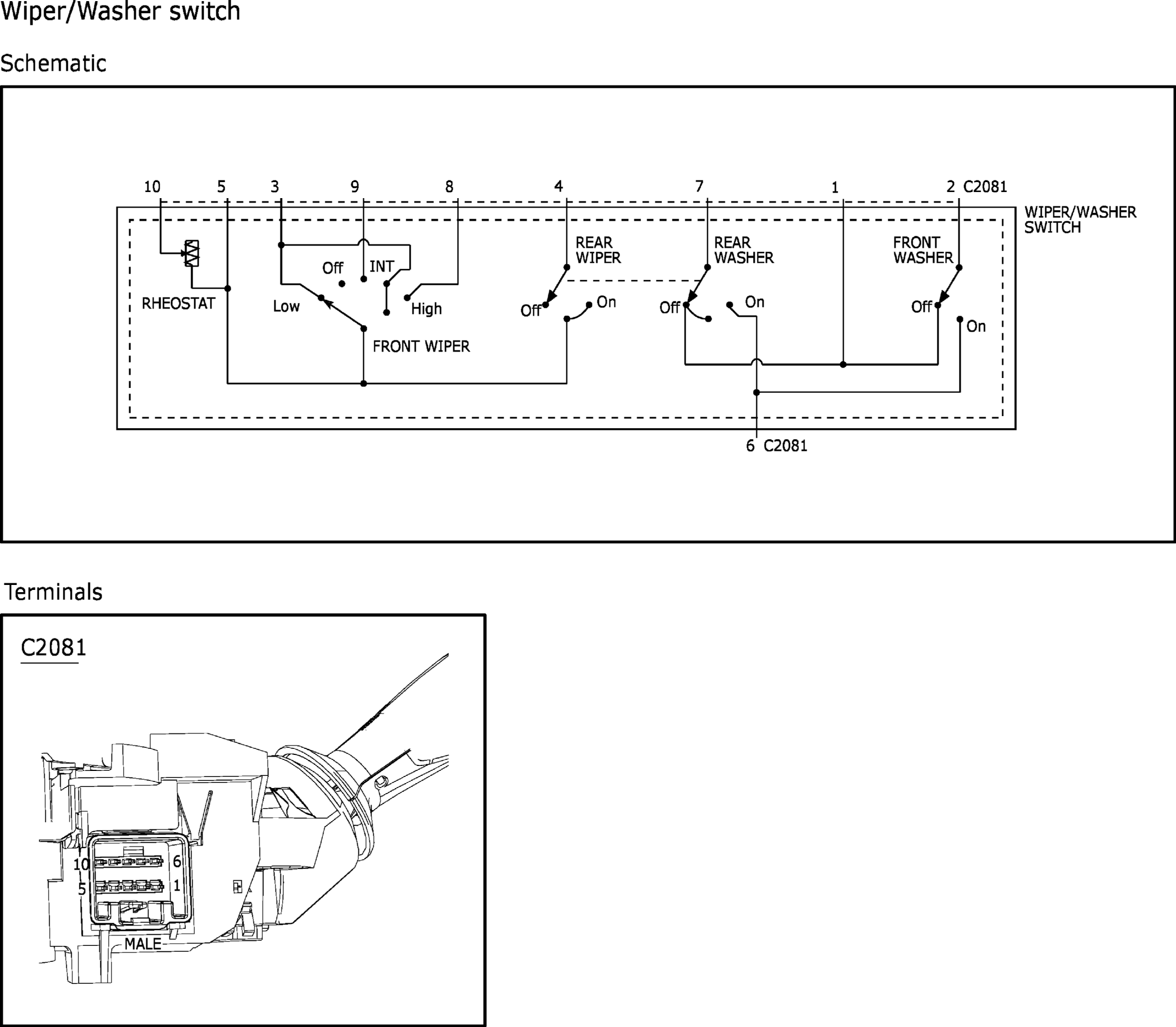

Fig 2: Wiper/Washer Switch

Courtesy of FORD MOTOR COMPANY

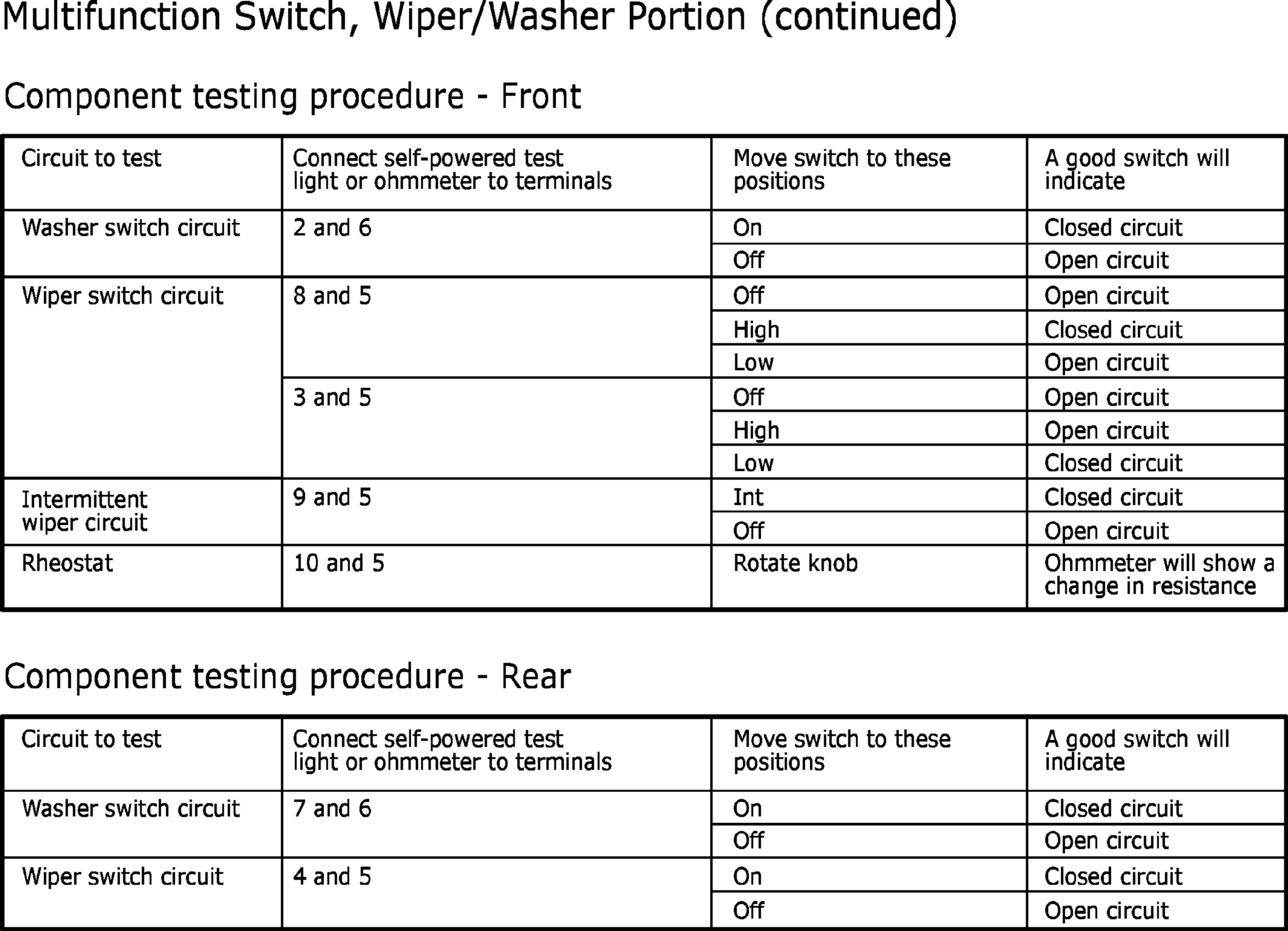

Fig 3: Multifunction Switch, Wiper/Washer Portion (Continued)

Courtesy of FORD MOTOR COMPANY
