Component Testing: Relays

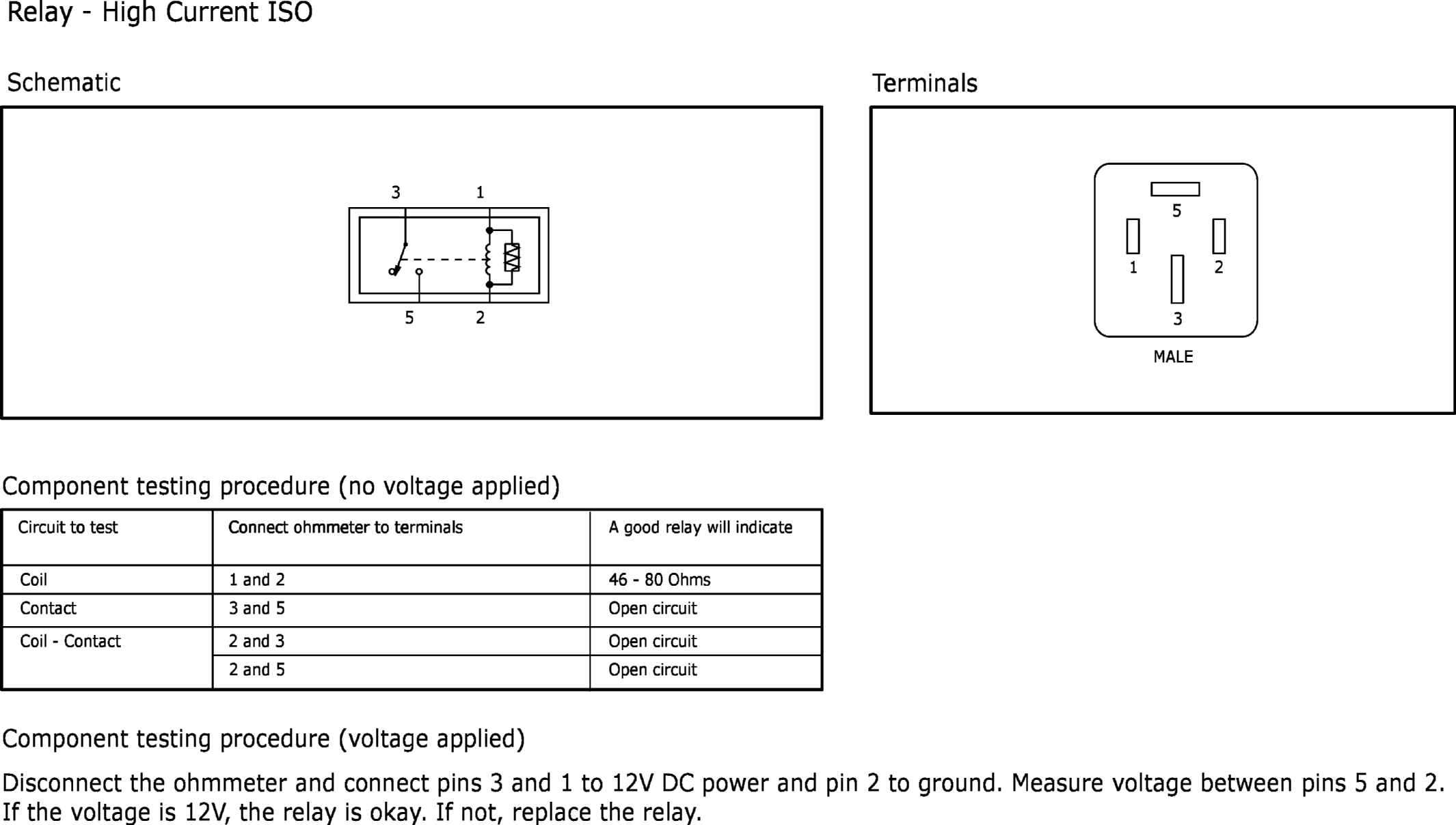

Fig 1: Relay - High Current ISO
GFDW60985Courtesy of FORD MOTOR COMPANY

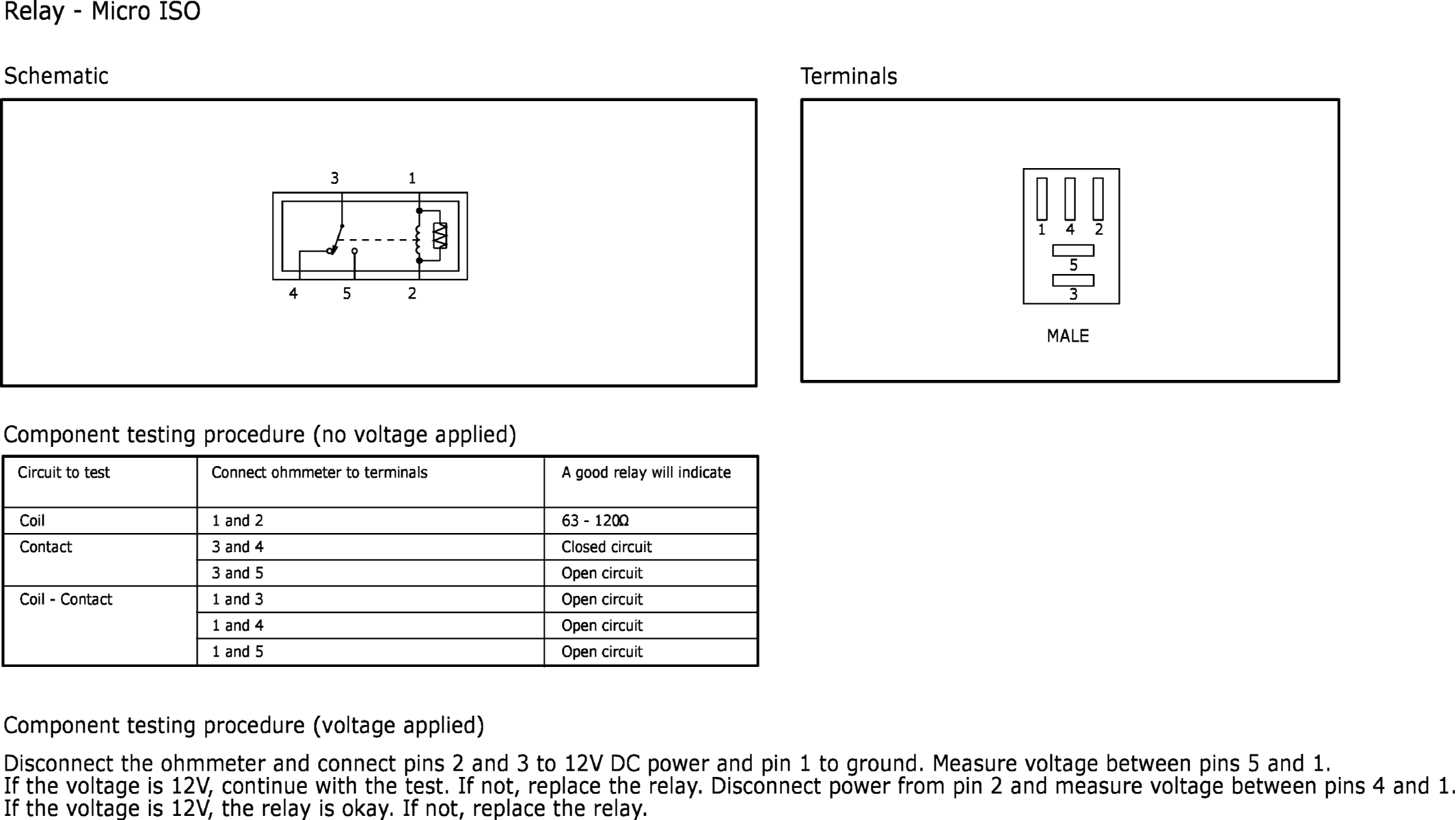

Fig 2: Relay - Micro ISO
GFDW60986Courtesy of FORD MOTOR COMPANY
